Specifikation av Grand Soleil 46 B&C

Specifikationer
Löa: 14,50m
Bredd: 4,31m
Djup: 2,55m
Depl: 10,500kg
Bränsle: 250l
Vatten: 450l

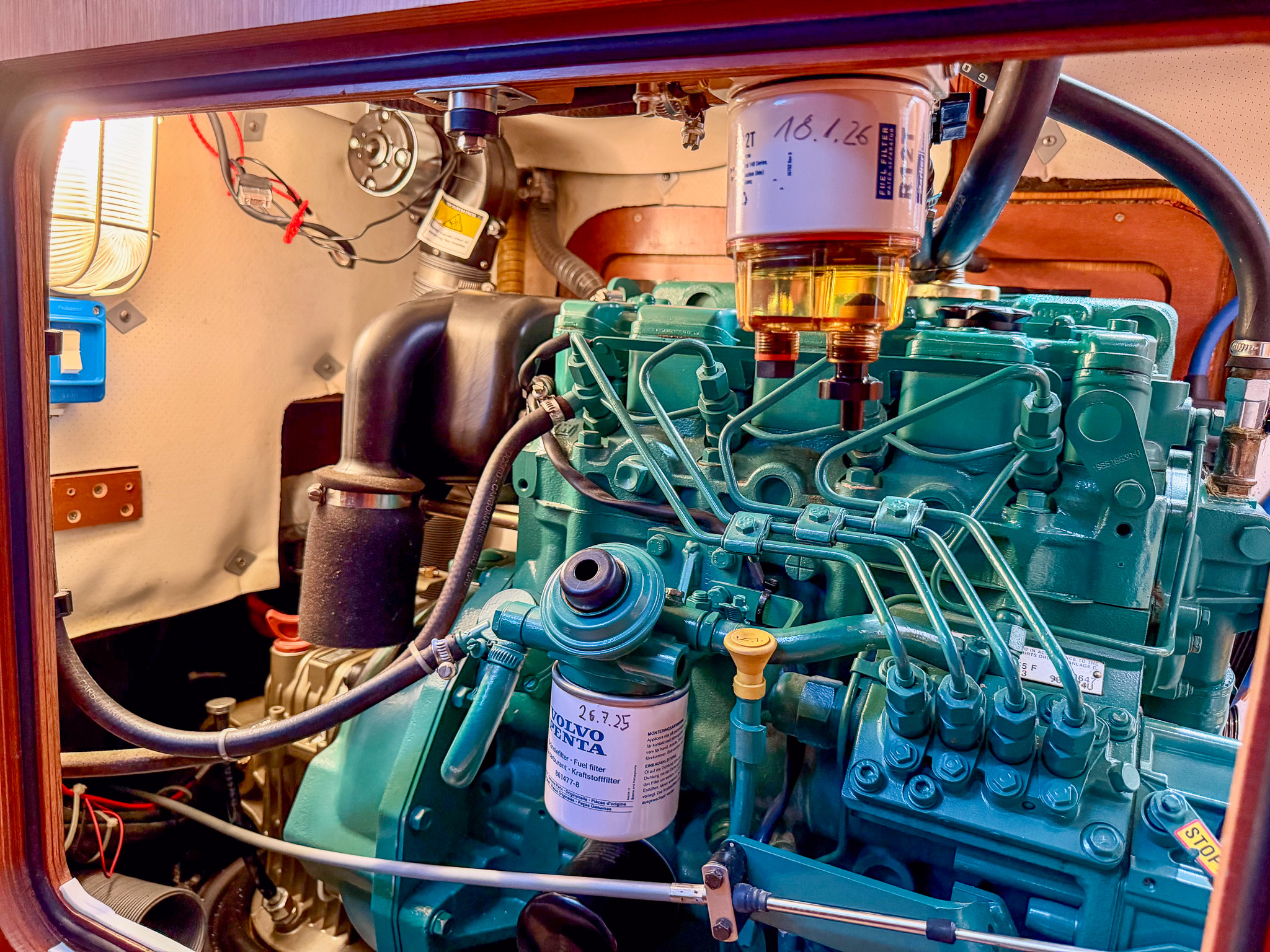

Motor

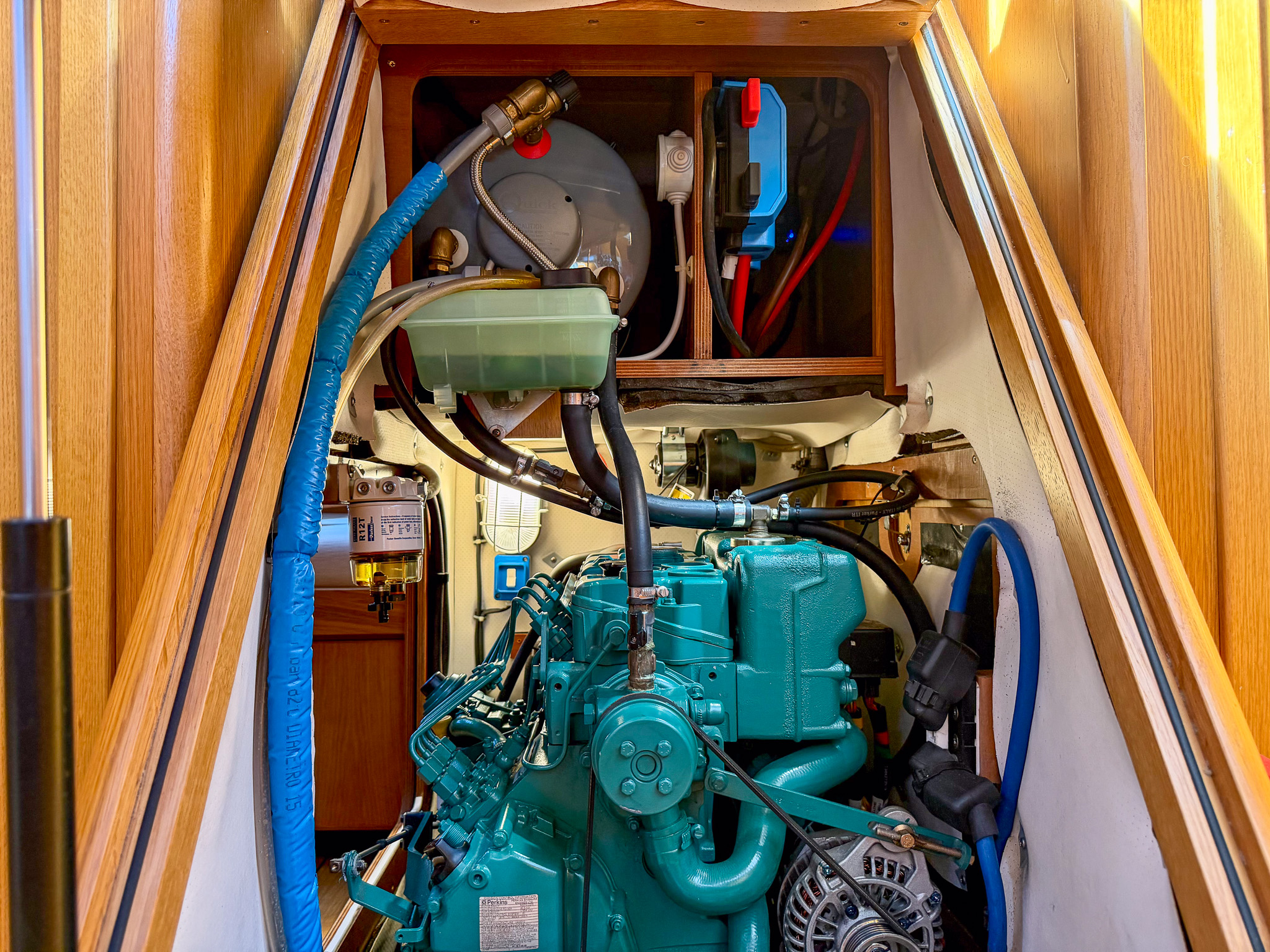

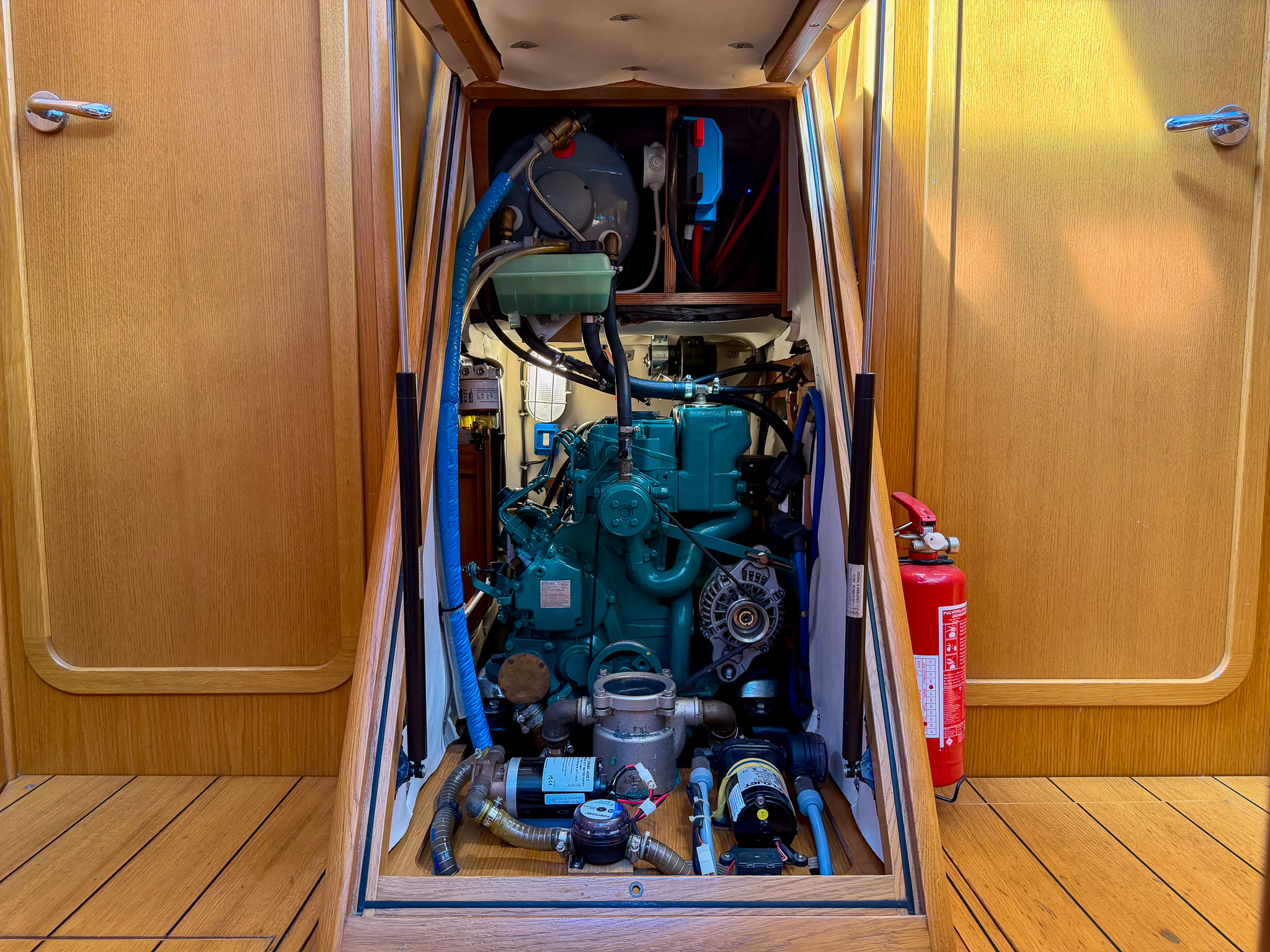

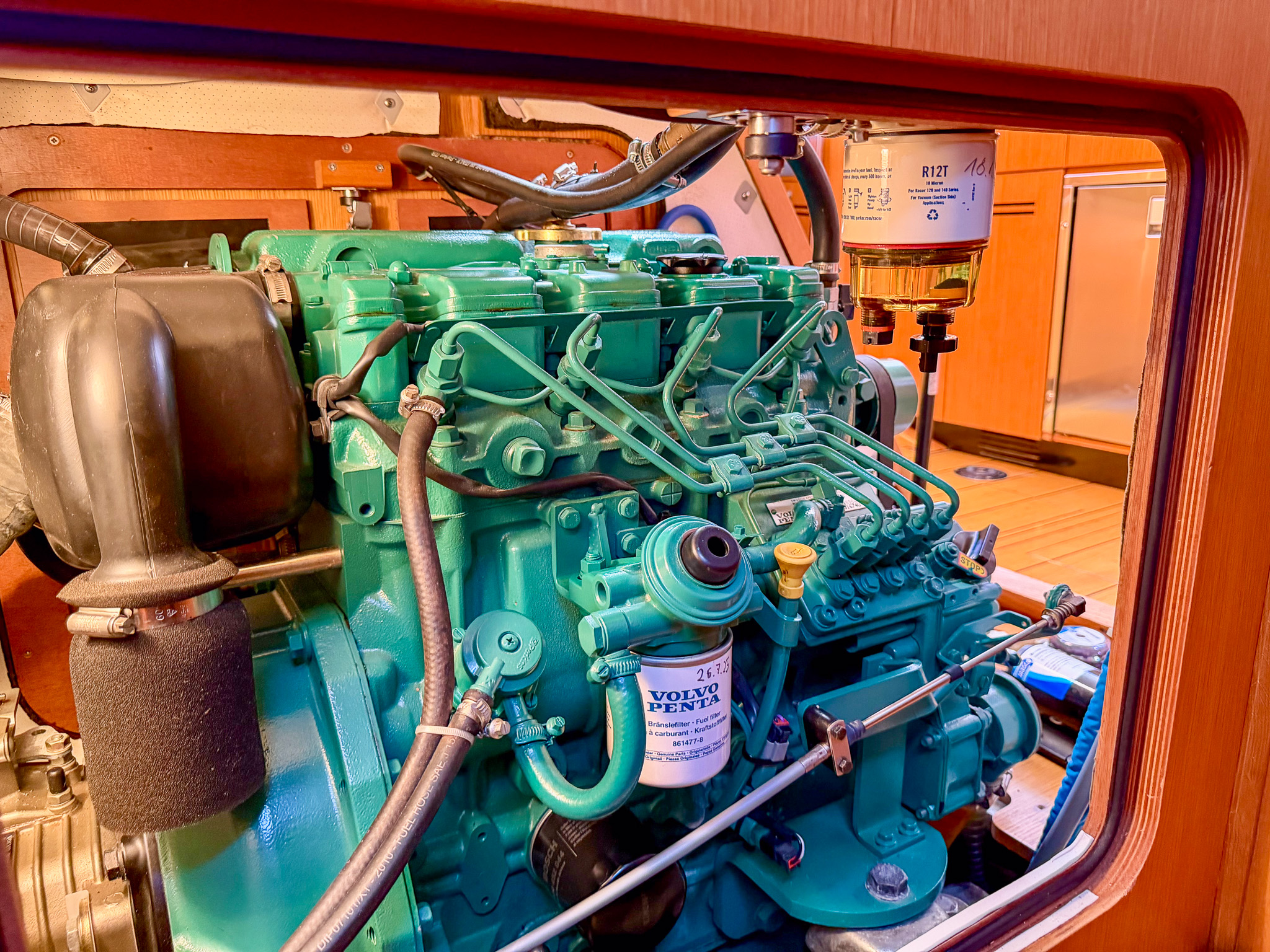

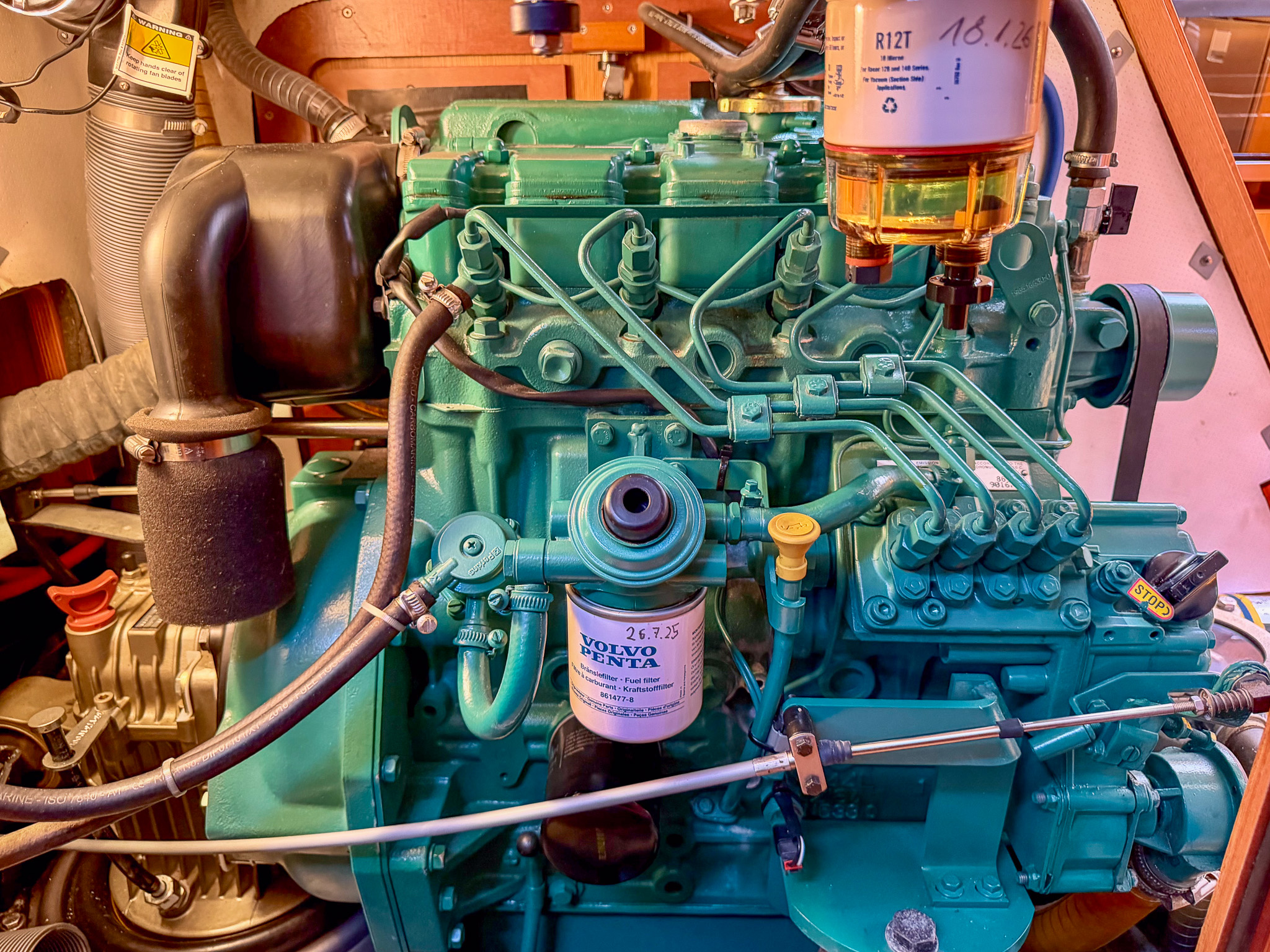

VOLVO PENTA D2-55, 4-cylinder 55hp diesel
2350h, regularly serviced, new oil and filters 2x/year (last time 11/2025); new fan 12/2025

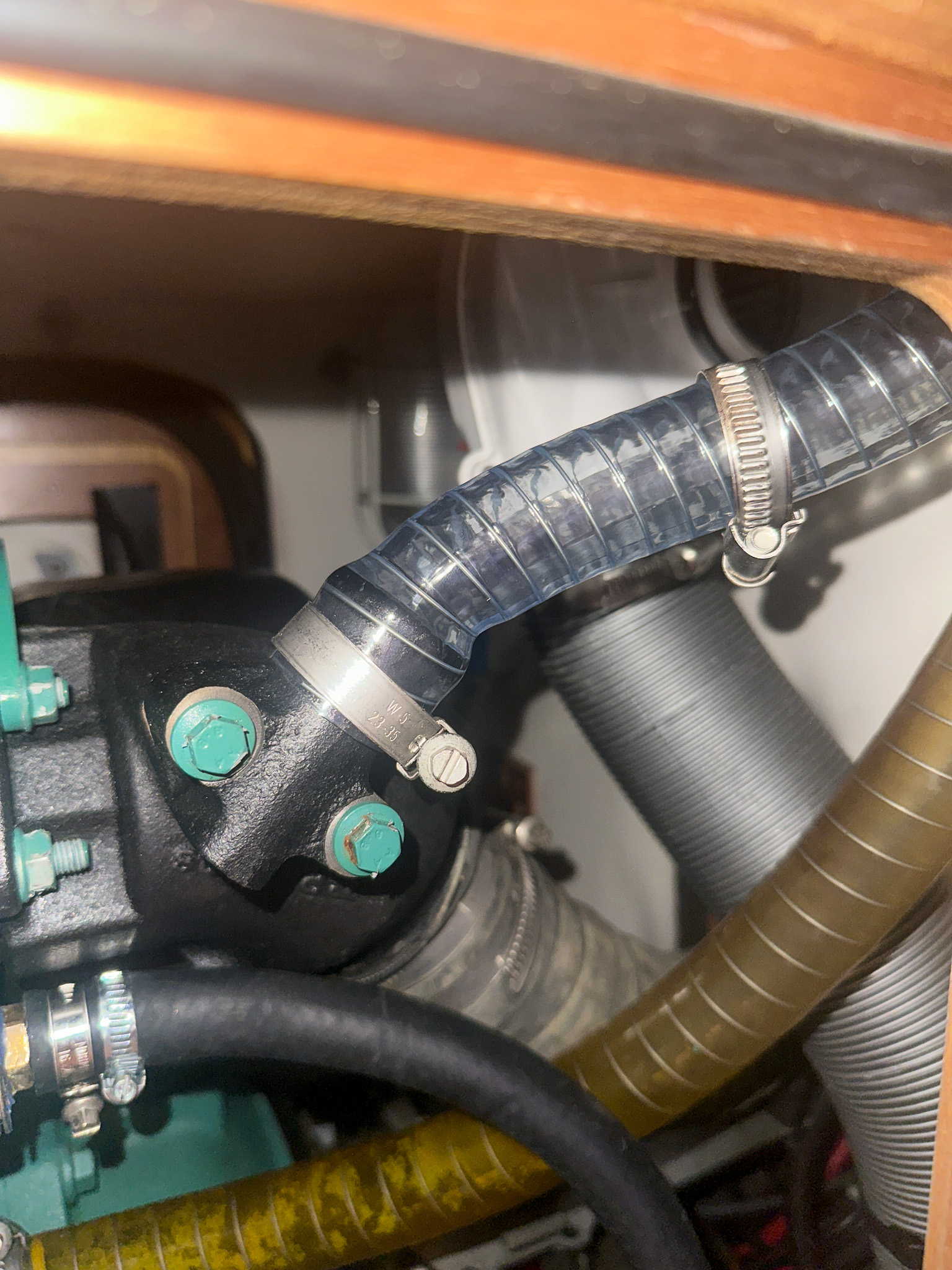

Exhaust elbow connection replaced, End 2025
Sail Drive serviced 01/2025
New Volvo Penta Starter Panel EVC 01/2026
New and stronger engine fan 2026

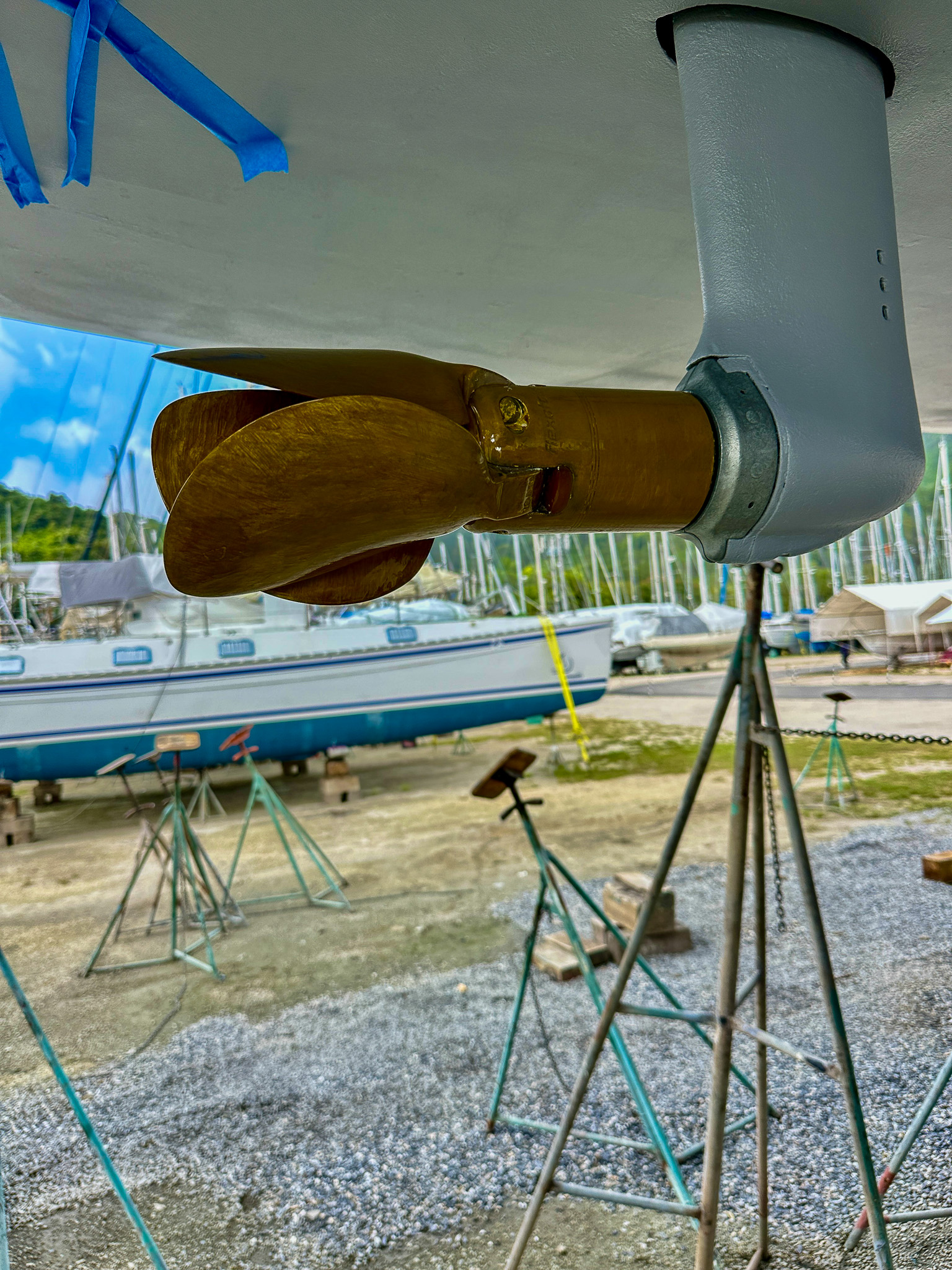

3-bladed folding propeller, Flex o Fold. New Prop Speed (end 2025)

Rigg & Segel

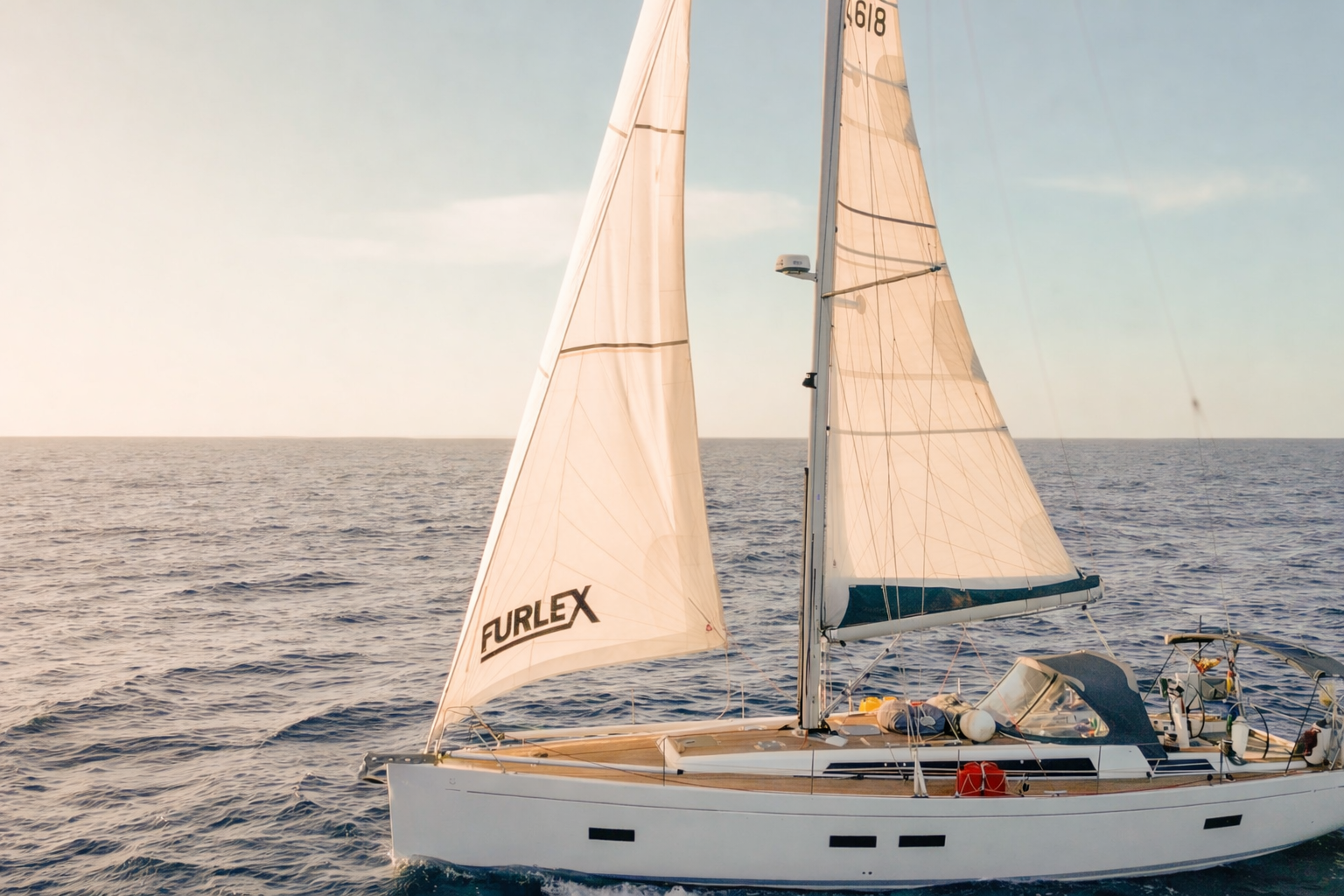

Seldén Furlex 304, Jib furling system 2022
Standing rigging Dyform s/s – G&G Rigging 2022
Rig check, D1 renewed 03/2025
Reinforced spreaders Sparcraft 2021
Backstay Dyneema 10mm SK99 2022
New springs for Sparcraft vang 2022
Holmatro hydraulic backstay adjuster, serviced 2022
Harken main sail track on mast and ball-bearing cars, serviced 2025
Cunningham 2:1 2022
Upgraded to German main sheet system 2022
Carbon spinnaker pole + Harken mast mounted track

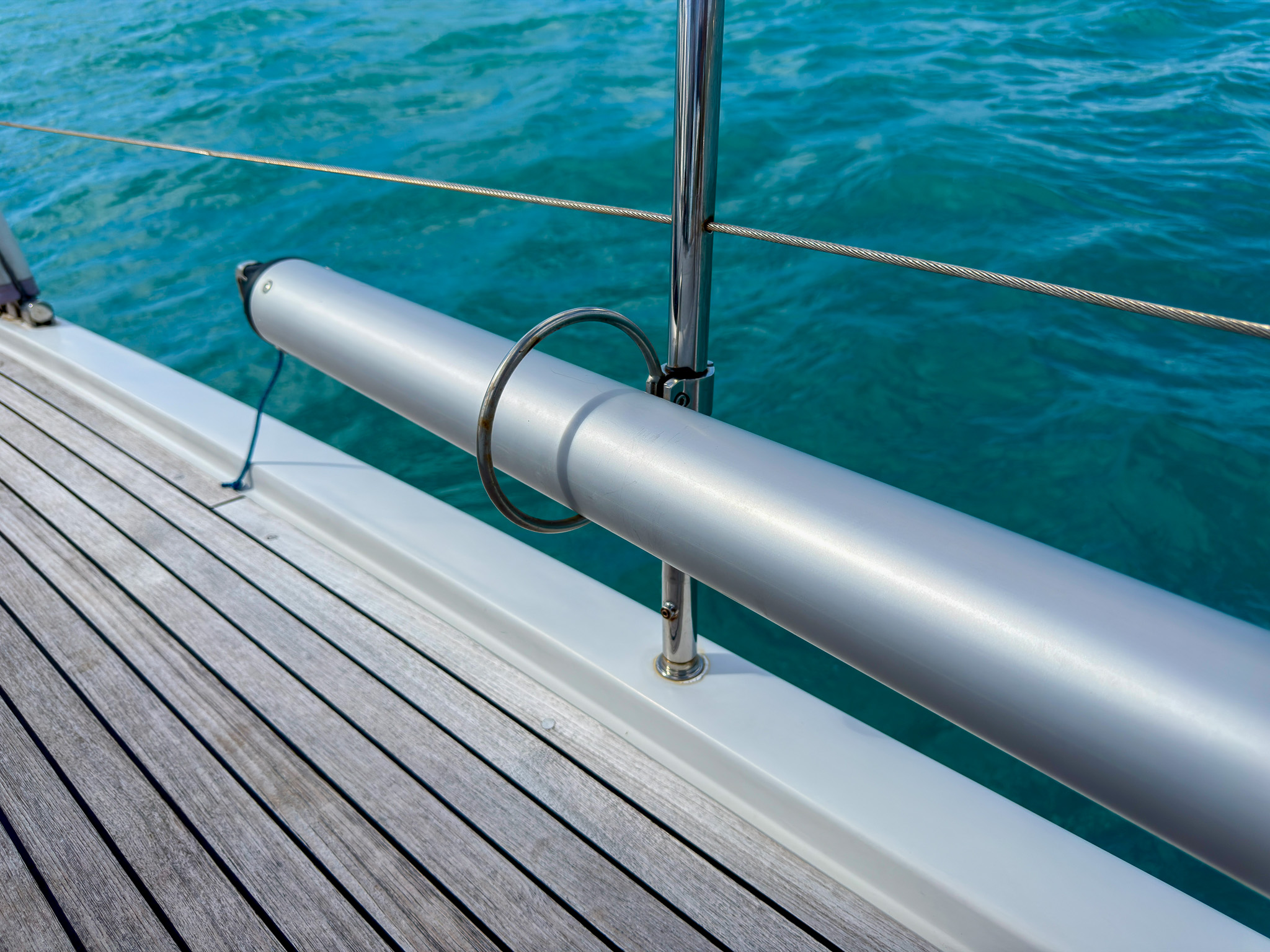

Aluminium pole, for Jib + extra boom traveller Pfeiffer 2025

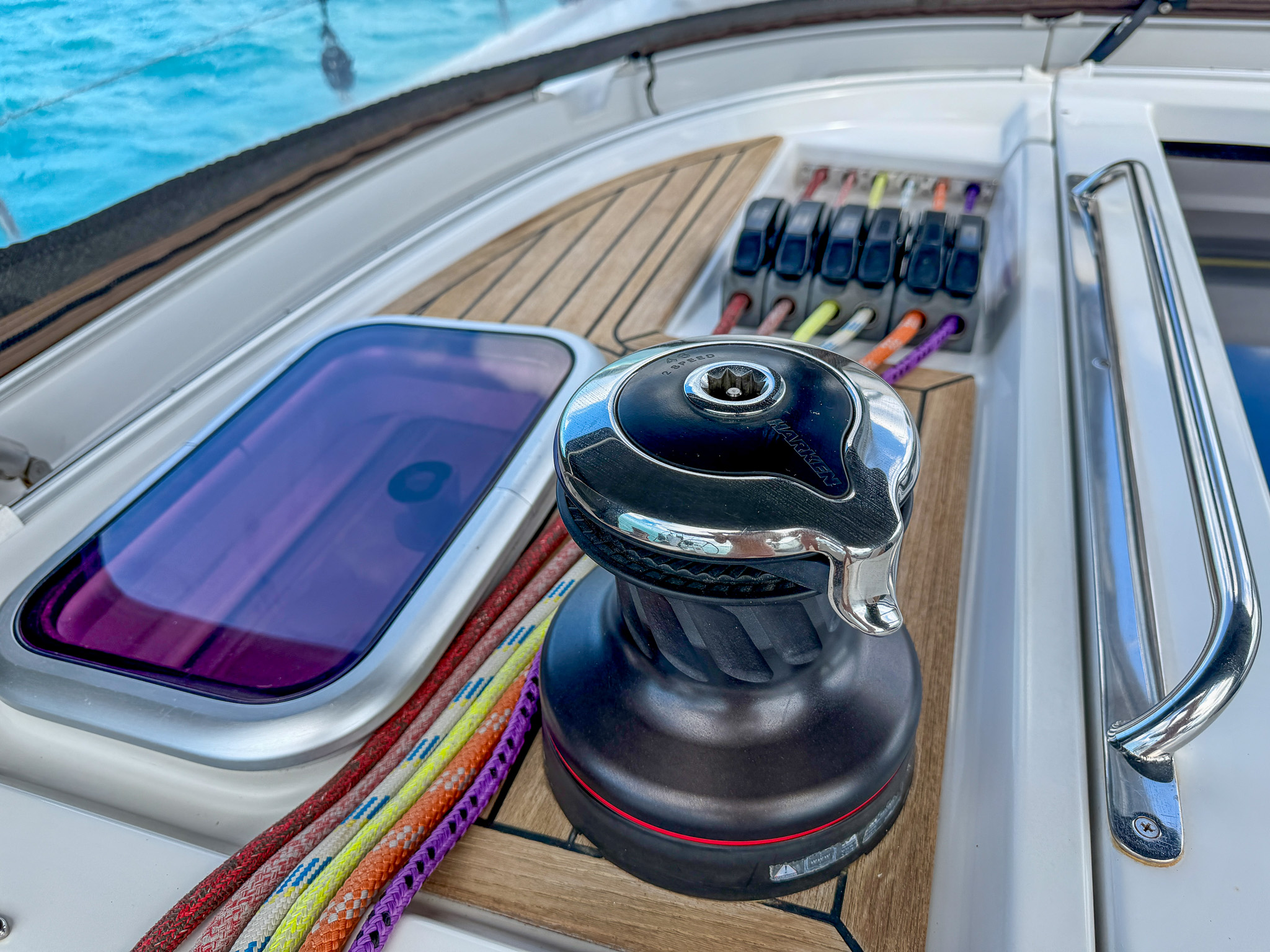

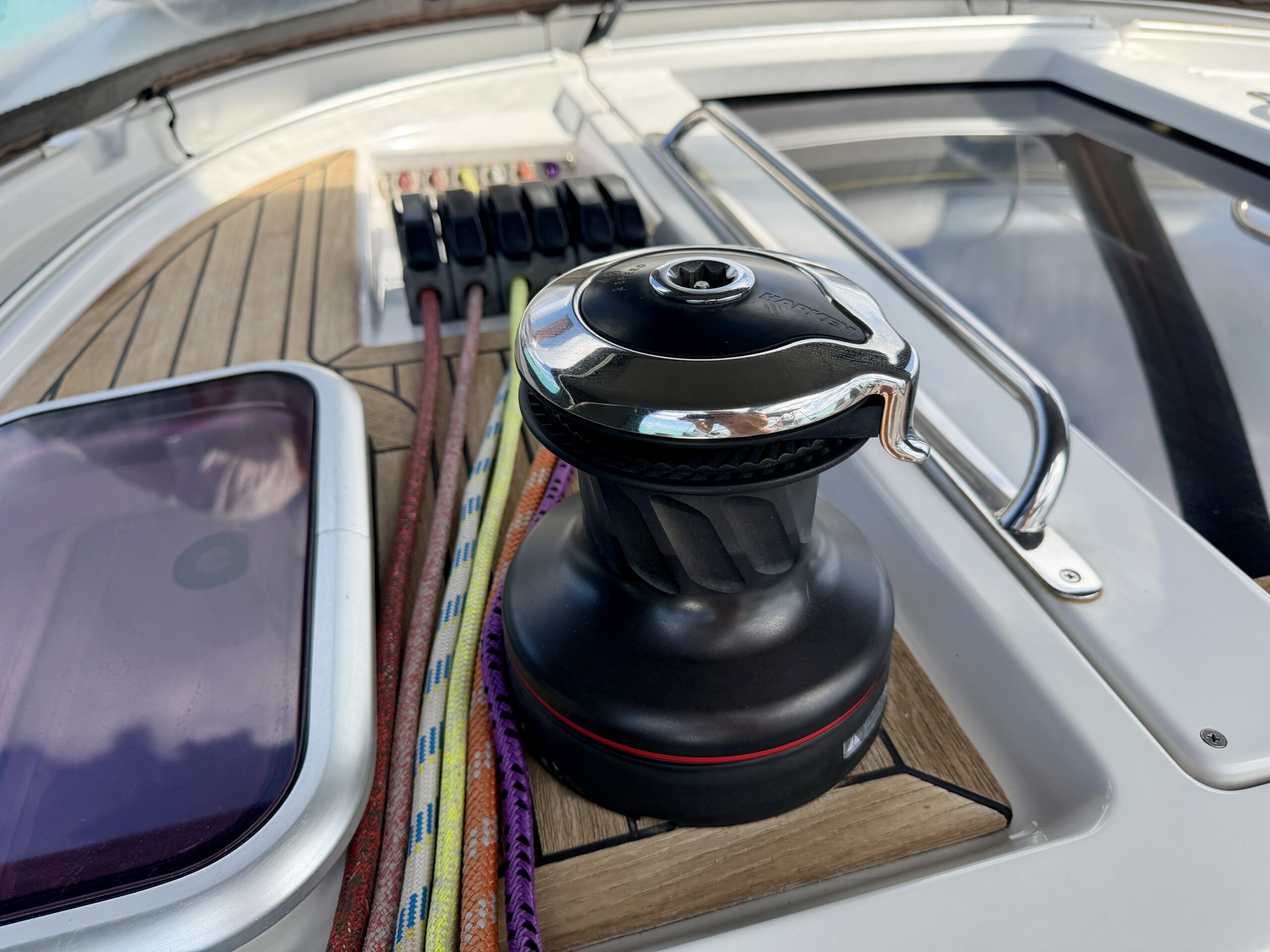

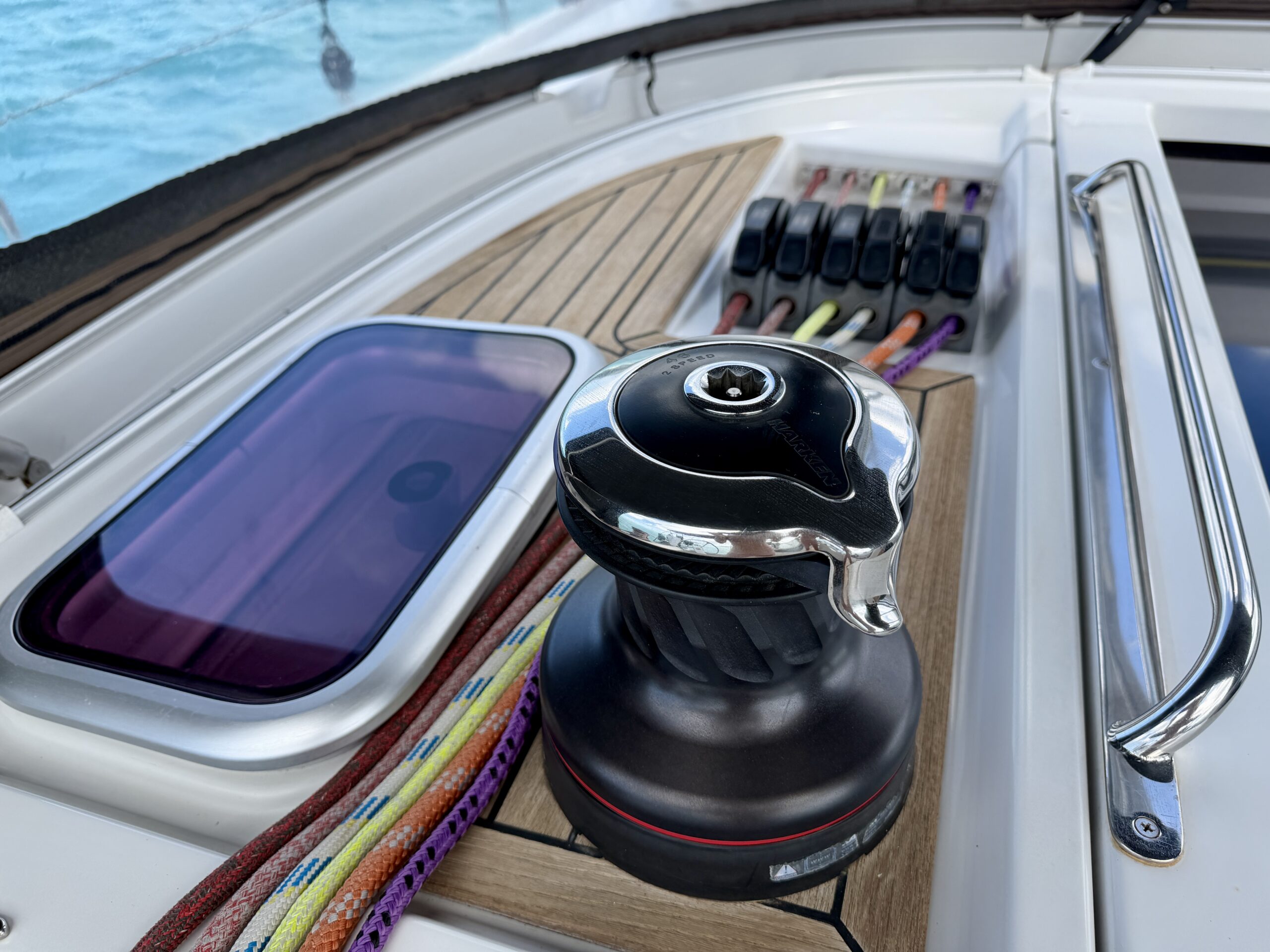

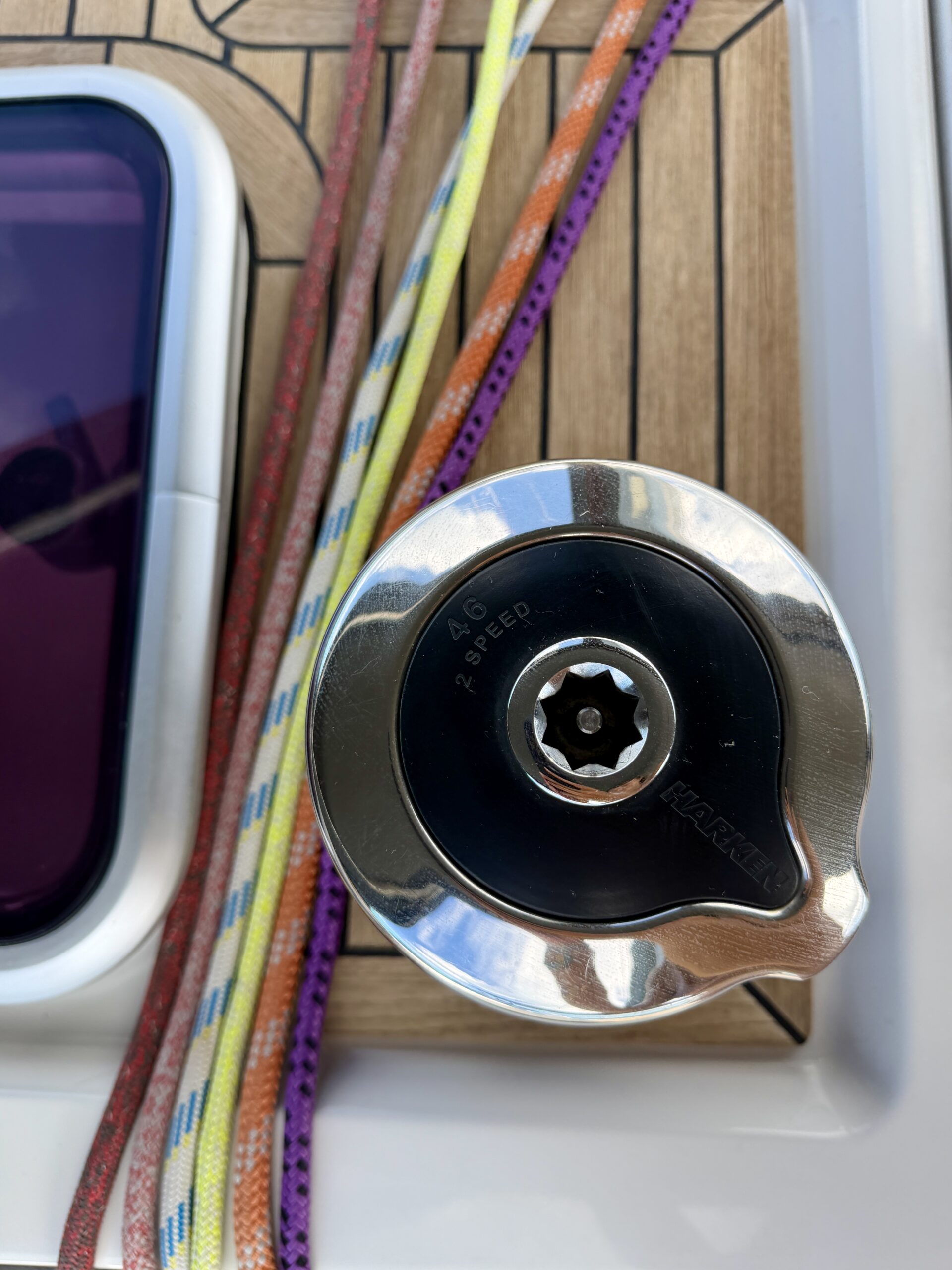

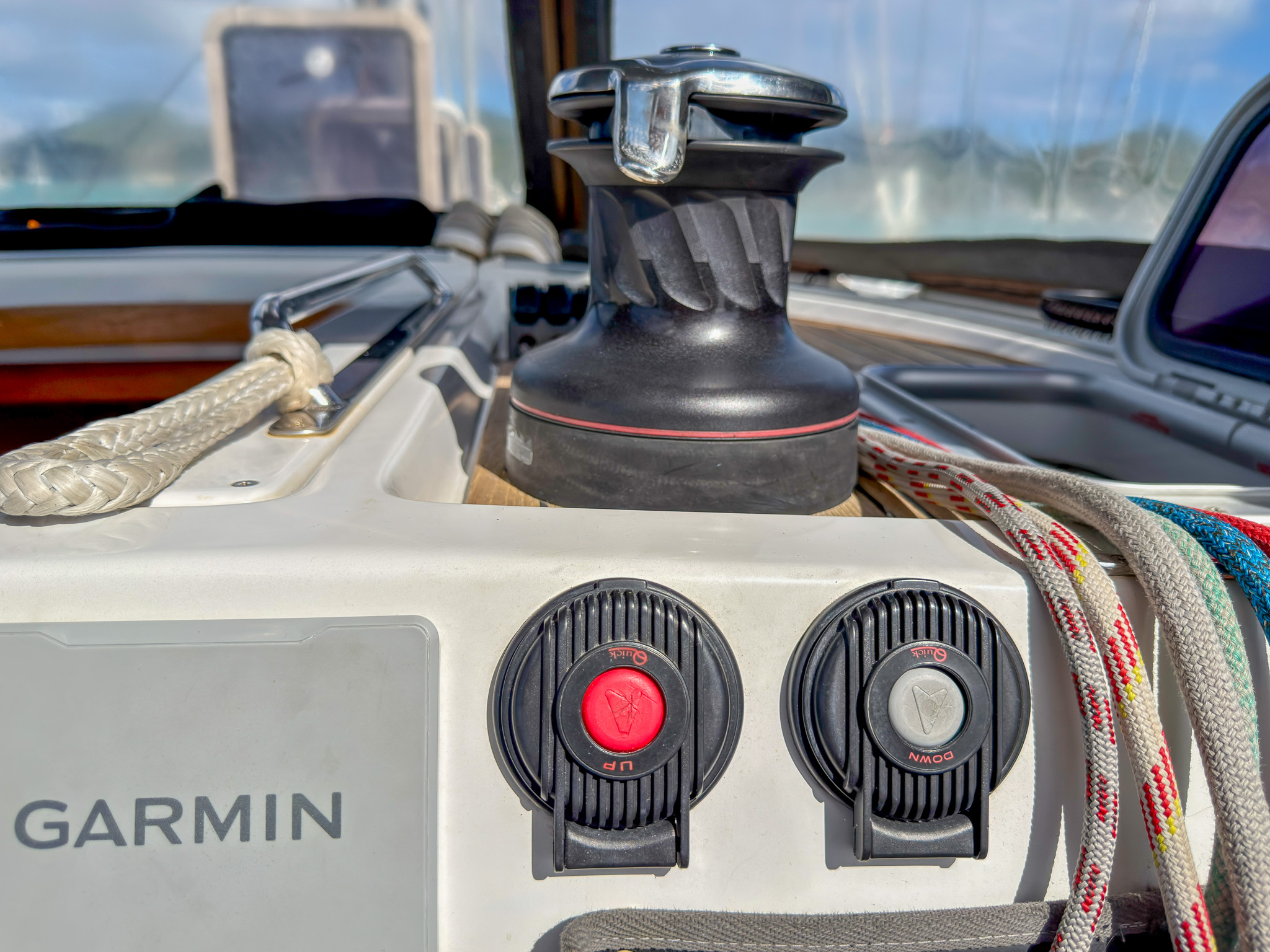

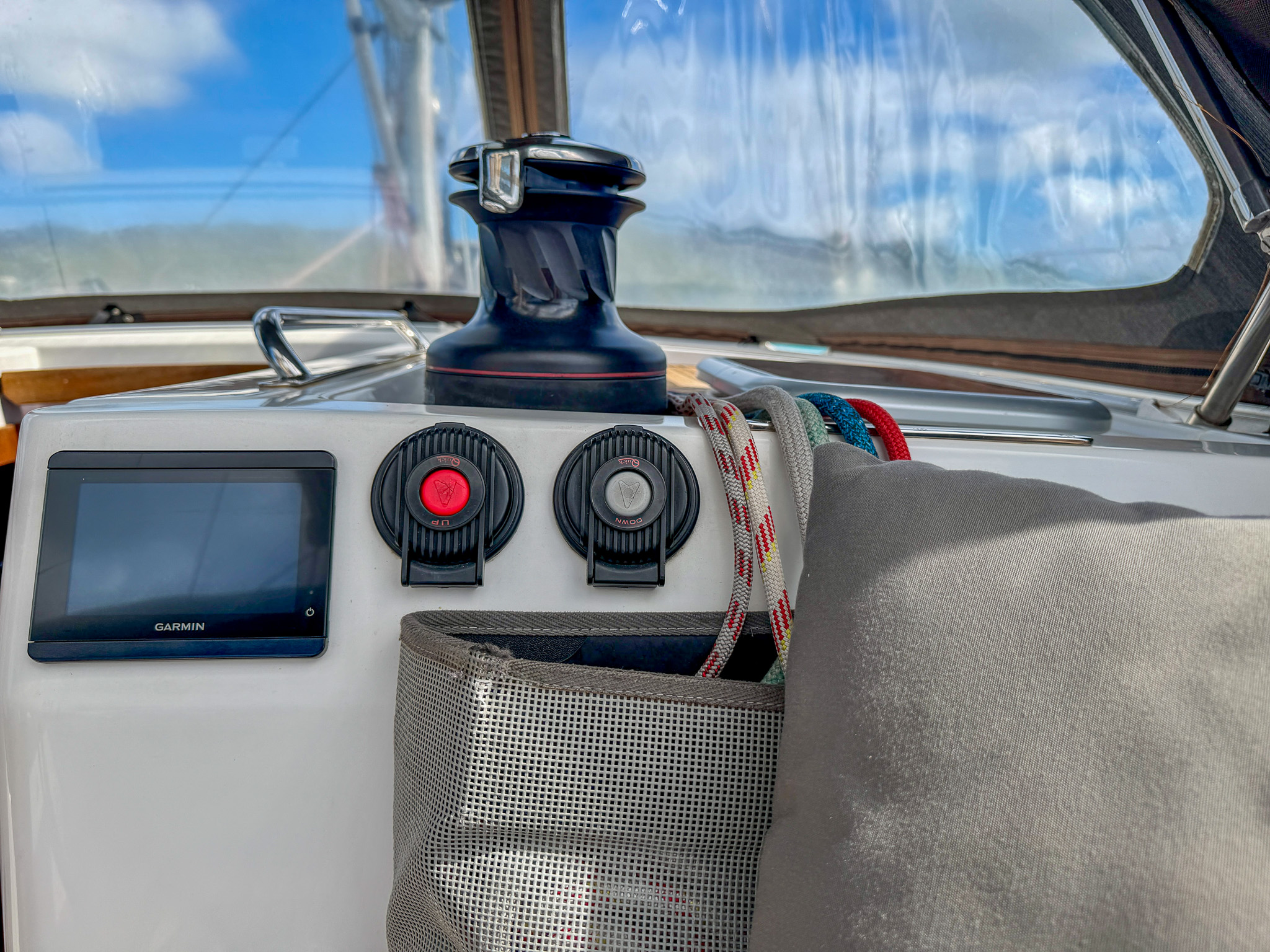

2 x Harken 46.2STE electrical halyard winches, starboard and port side, serviced 2x/year

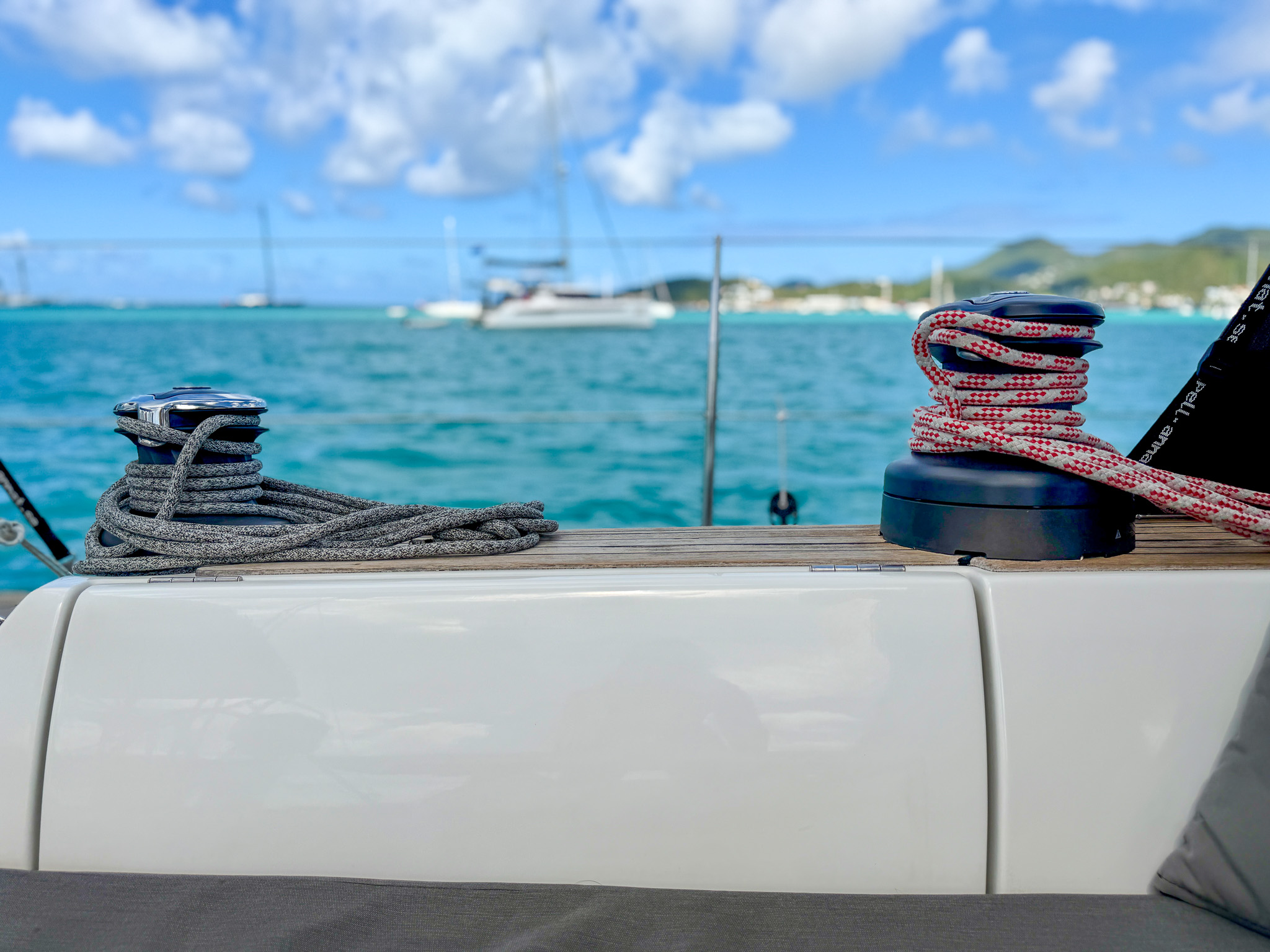

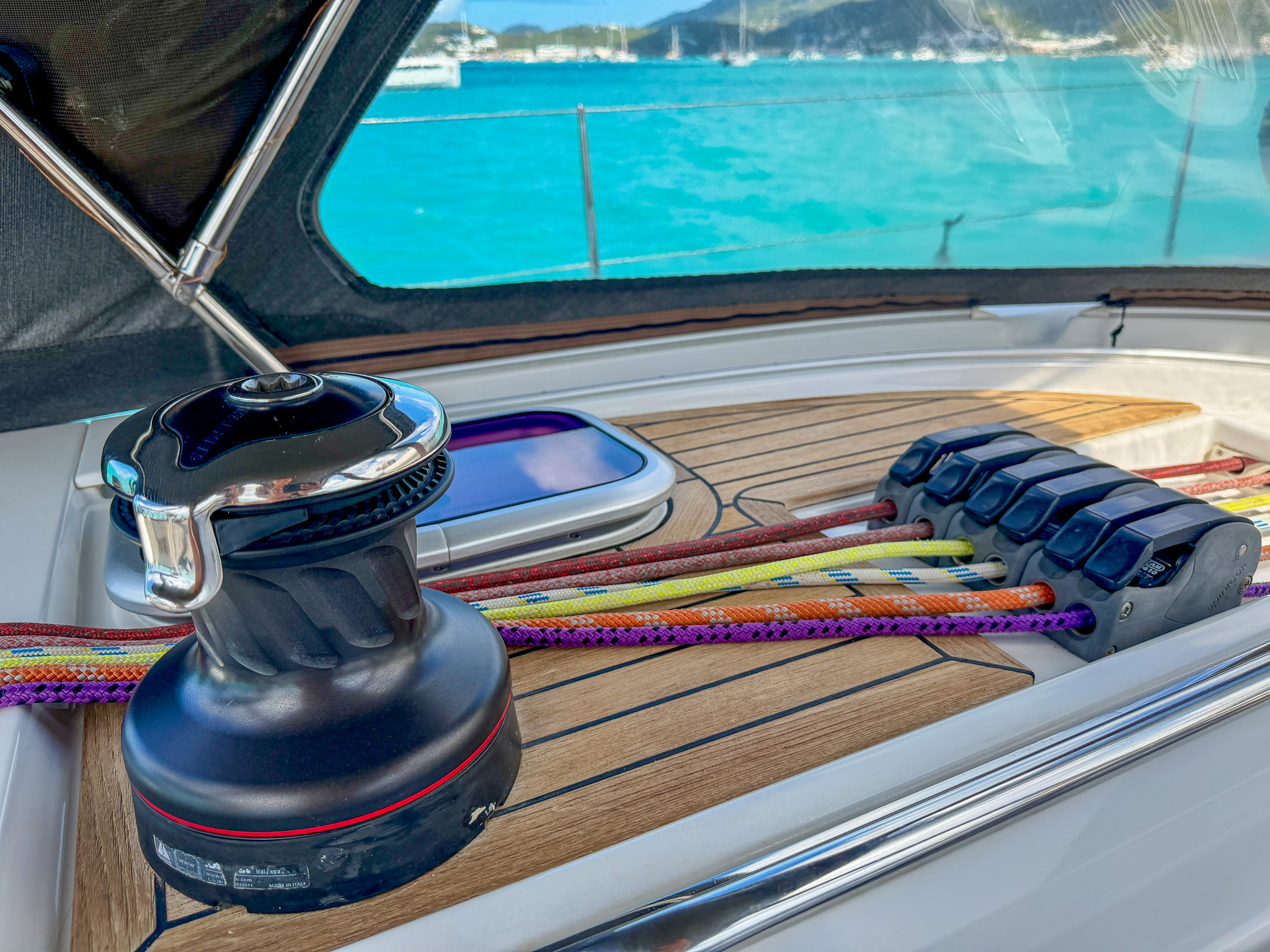

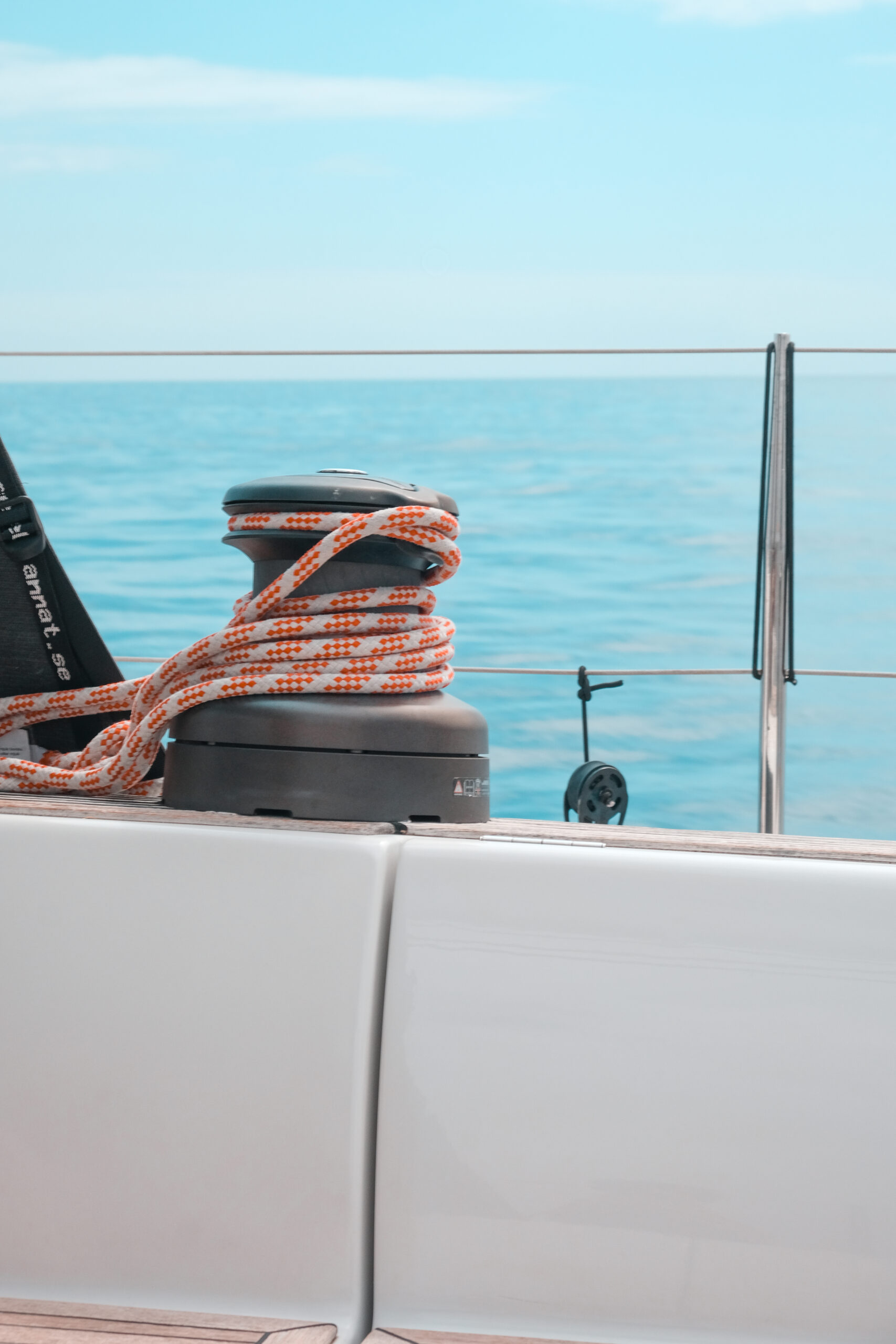

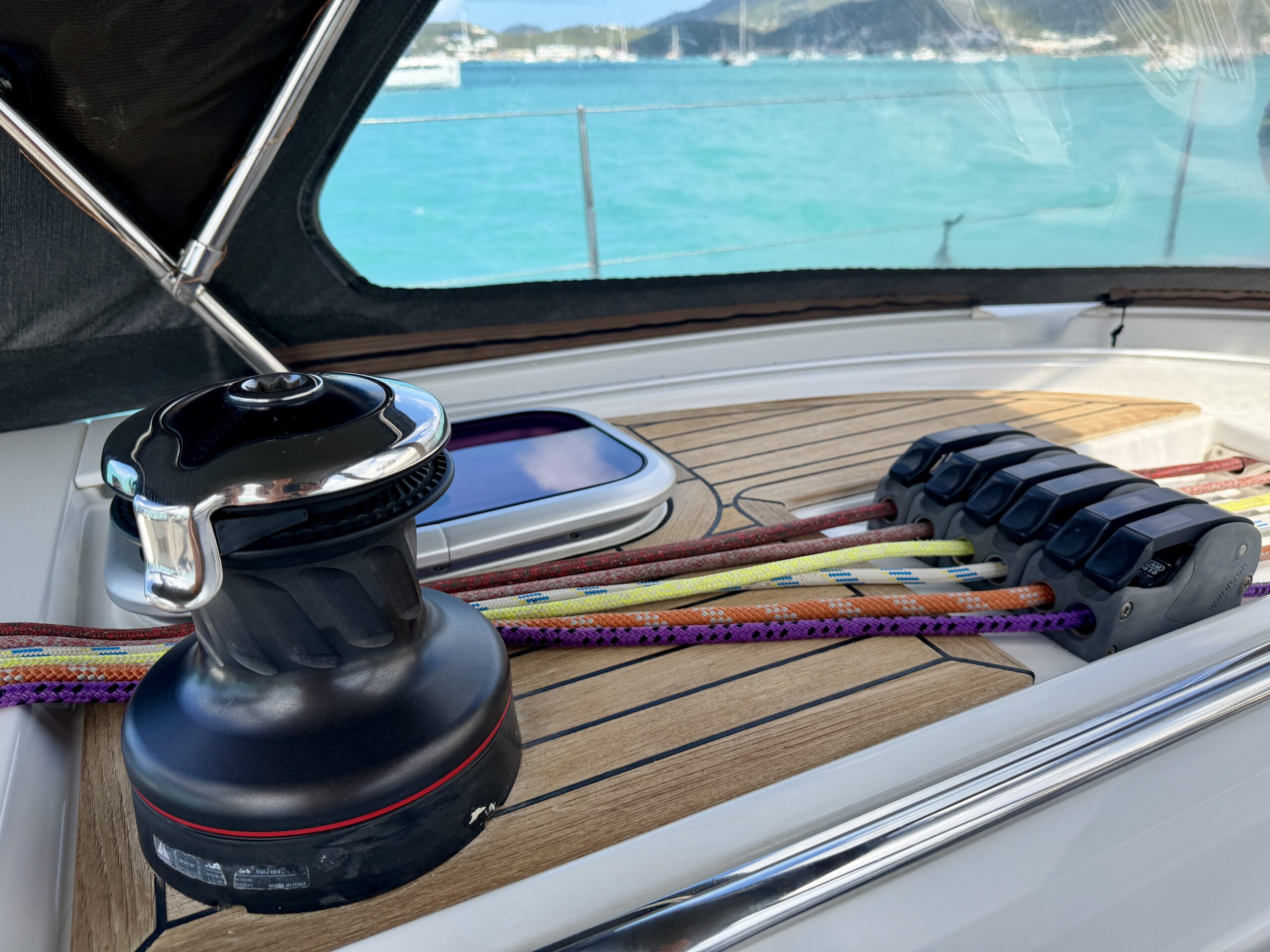

2 x Harken 60ST, primary winches, 2021, serviced 2x/year
2 x Harken 50ST, main sheet winches, serviced 2x/year
Main halyard, Admiral 3000 2022
Jib halyard, Robline Globe 5000 2022, new cover 06/2023
2 x Spinnaker halyard, Robline Sirius XTS 2022
Reef 1 & 2, Robline Admiral 7000 2022
Main sheet, Robline Sirius XTS 2022
Jib sheet, Robline Sirius 300 2022
2 x Spinnaker guys with Wichard trigger snap shackle
2 x Spinnaker sheets with Wichard trigger snap shackle
2 x Spinnaker/Gennaker sheets with Wichard shackle
All trim and control lines updated to Robline/Teufelberger 2021/2022

Delta Voiles, Main Sail, Radial, DP DCX, 5 x full batterns 59 sqm, 2 reefs (1,5 + 3), 2022

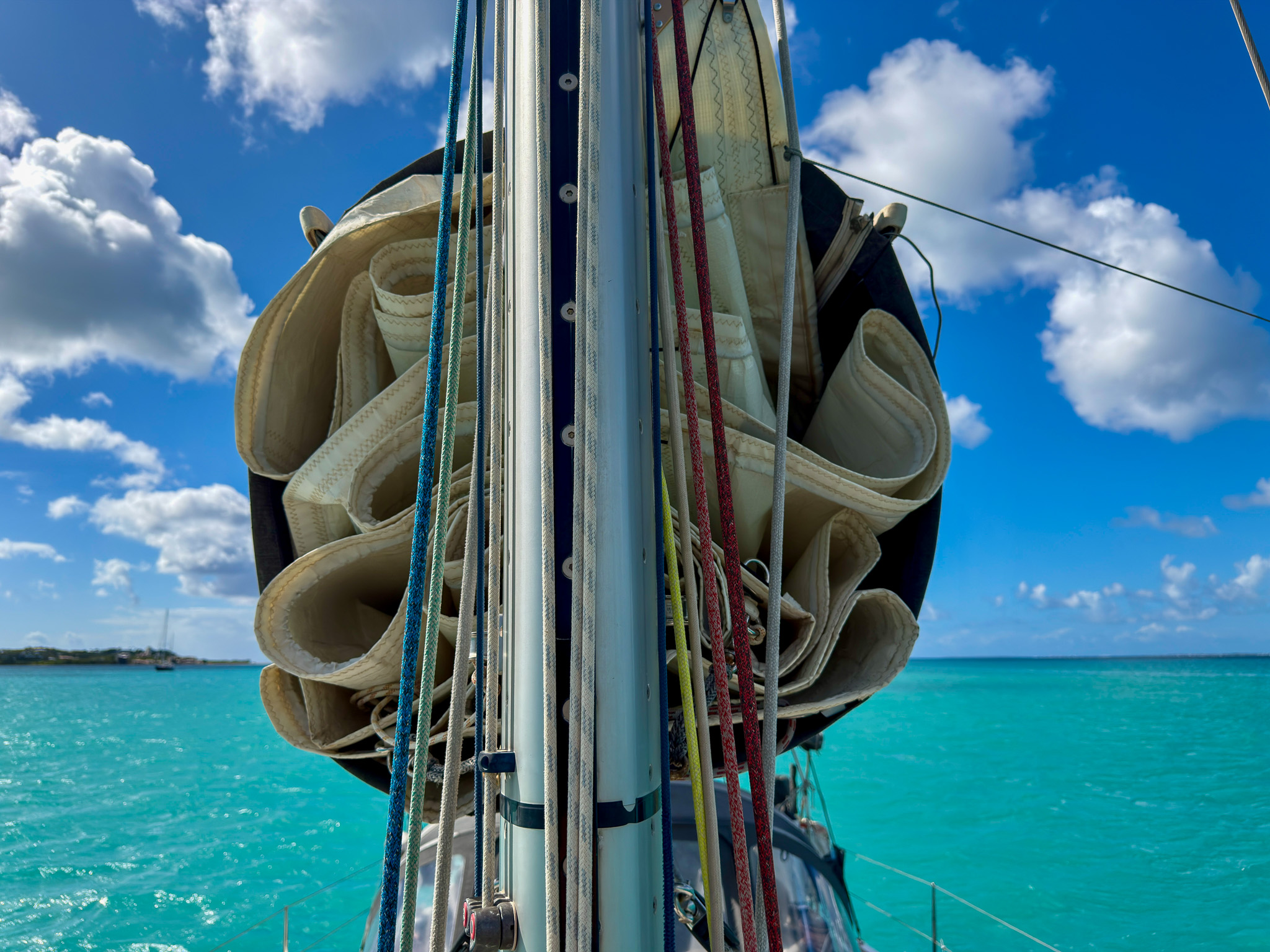

Delta Voiles, Furling Jib, Radial, DP DCX, VORTEX, 53sqm, 2022, serviced 2025

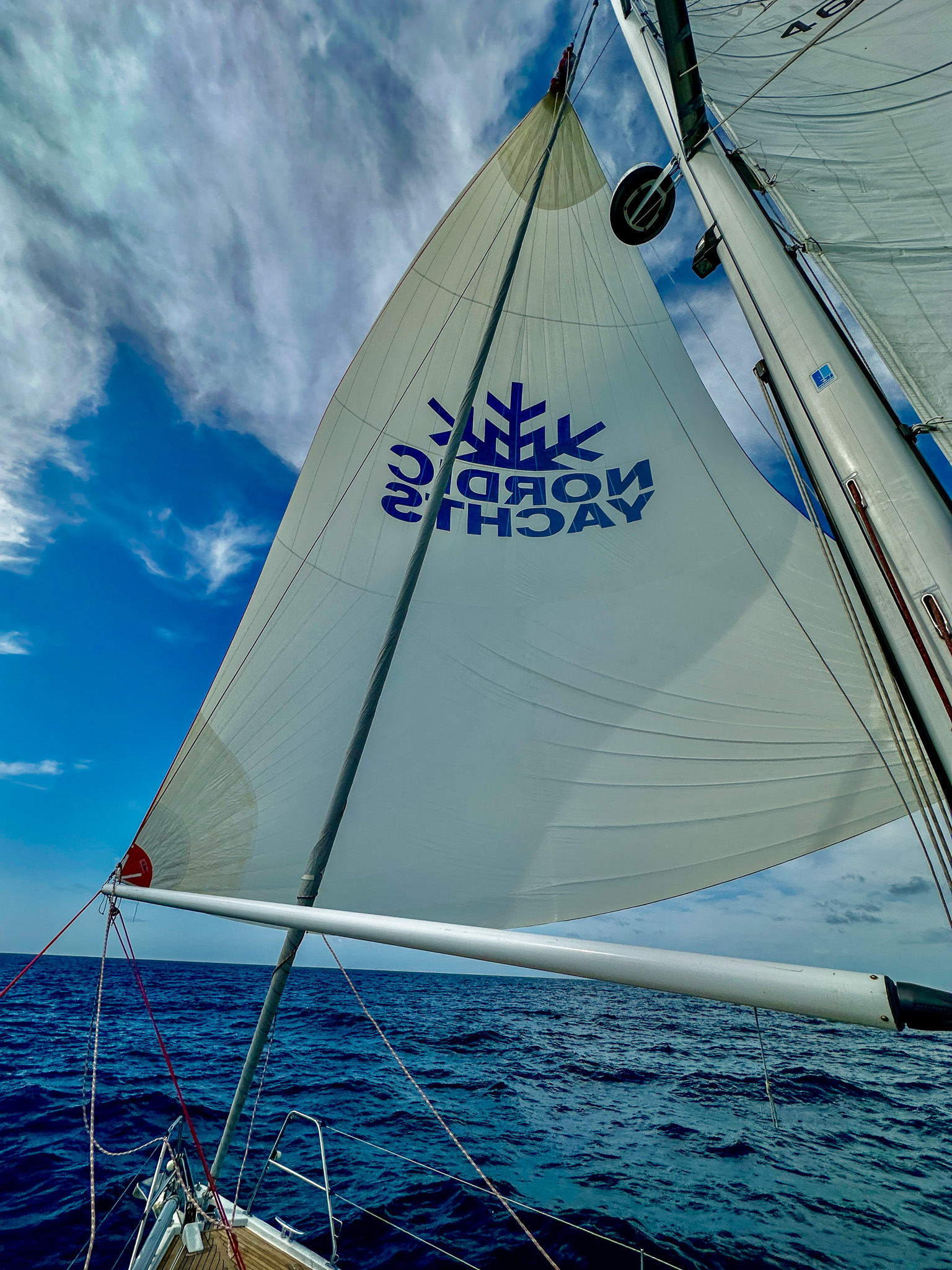

Spinnaker, All Purpose, 1,5oz 2022
Delta Voiles Storm Bag, 10 sqm

Skrov & Däcksutrustning

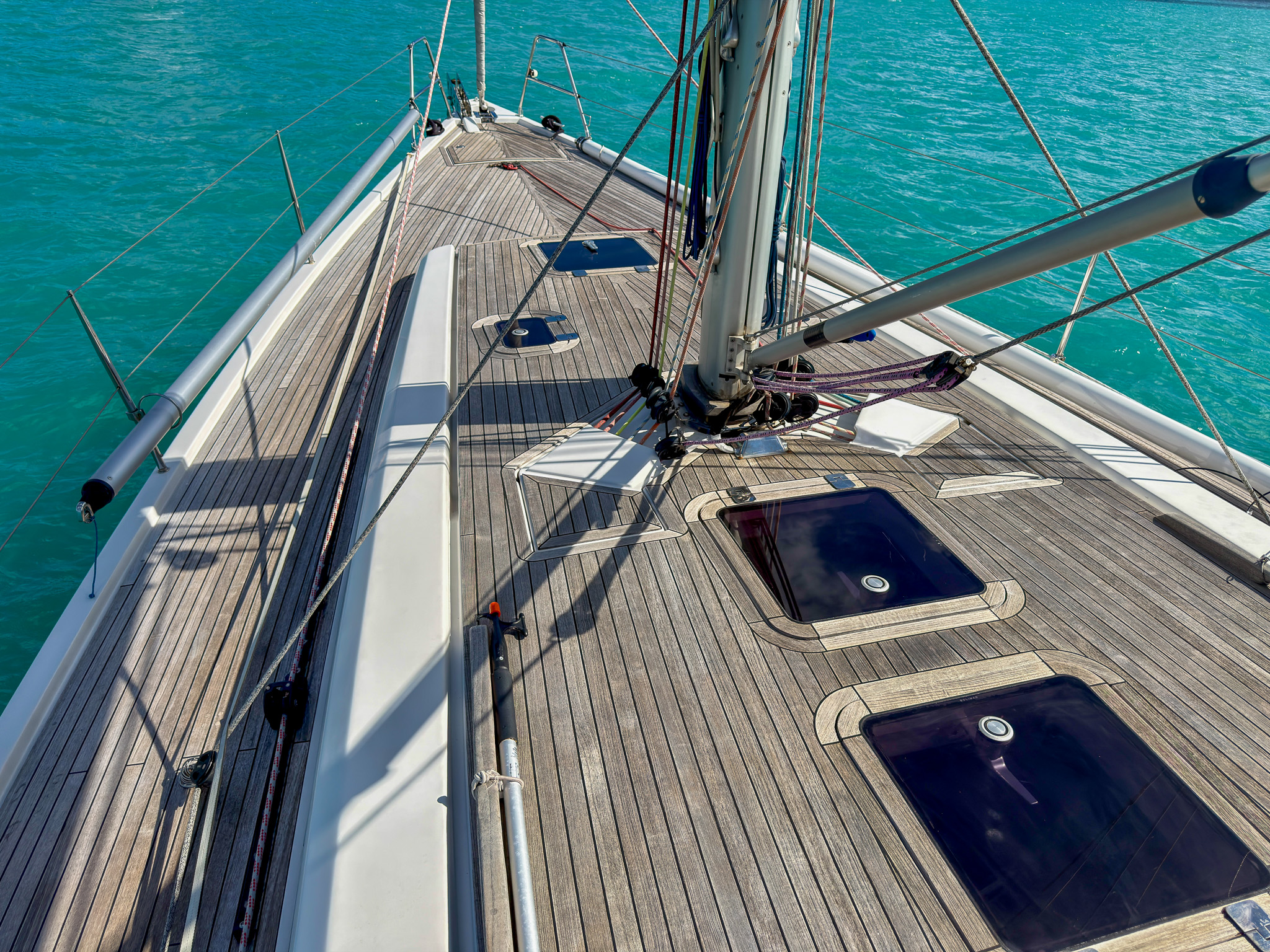

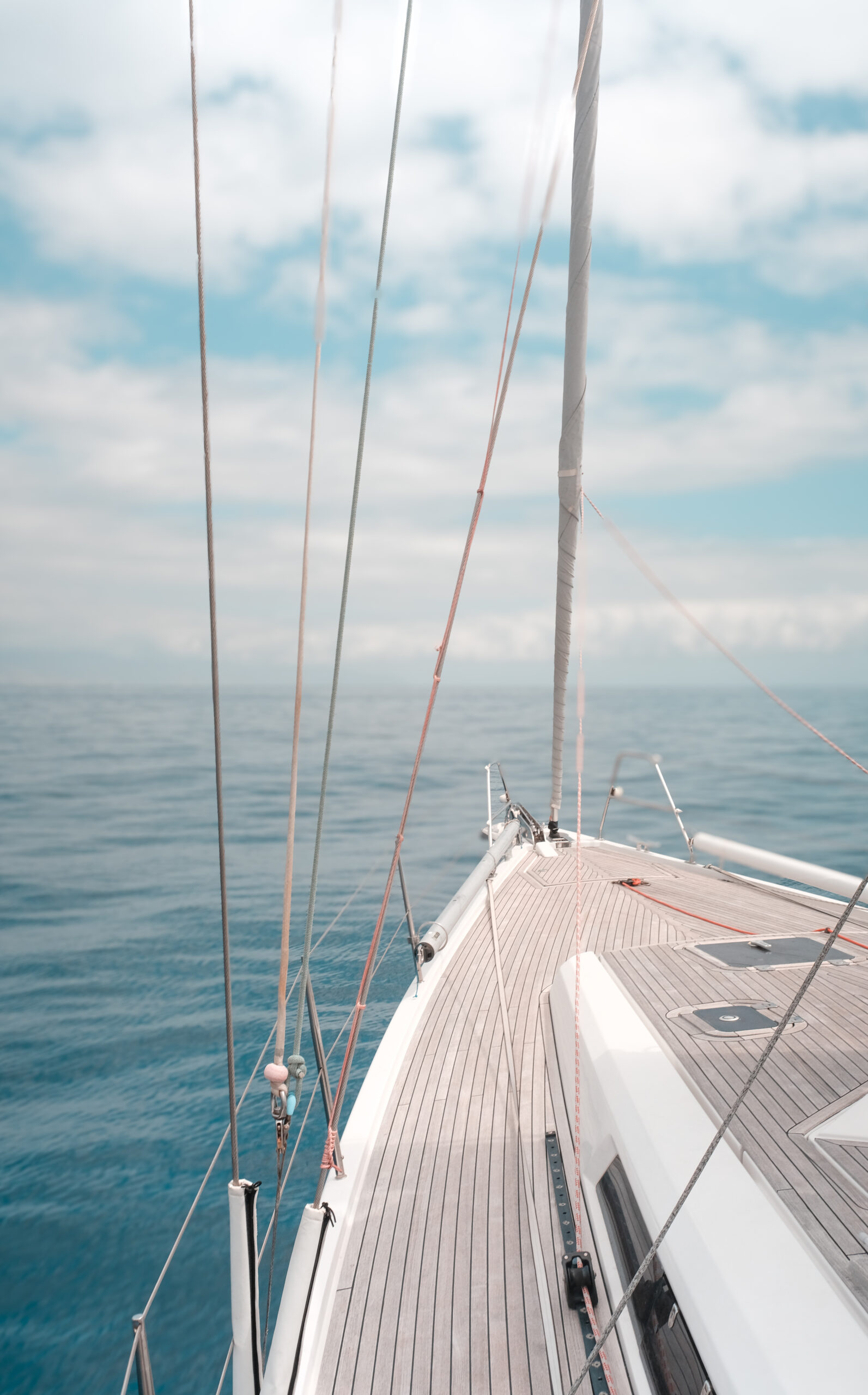

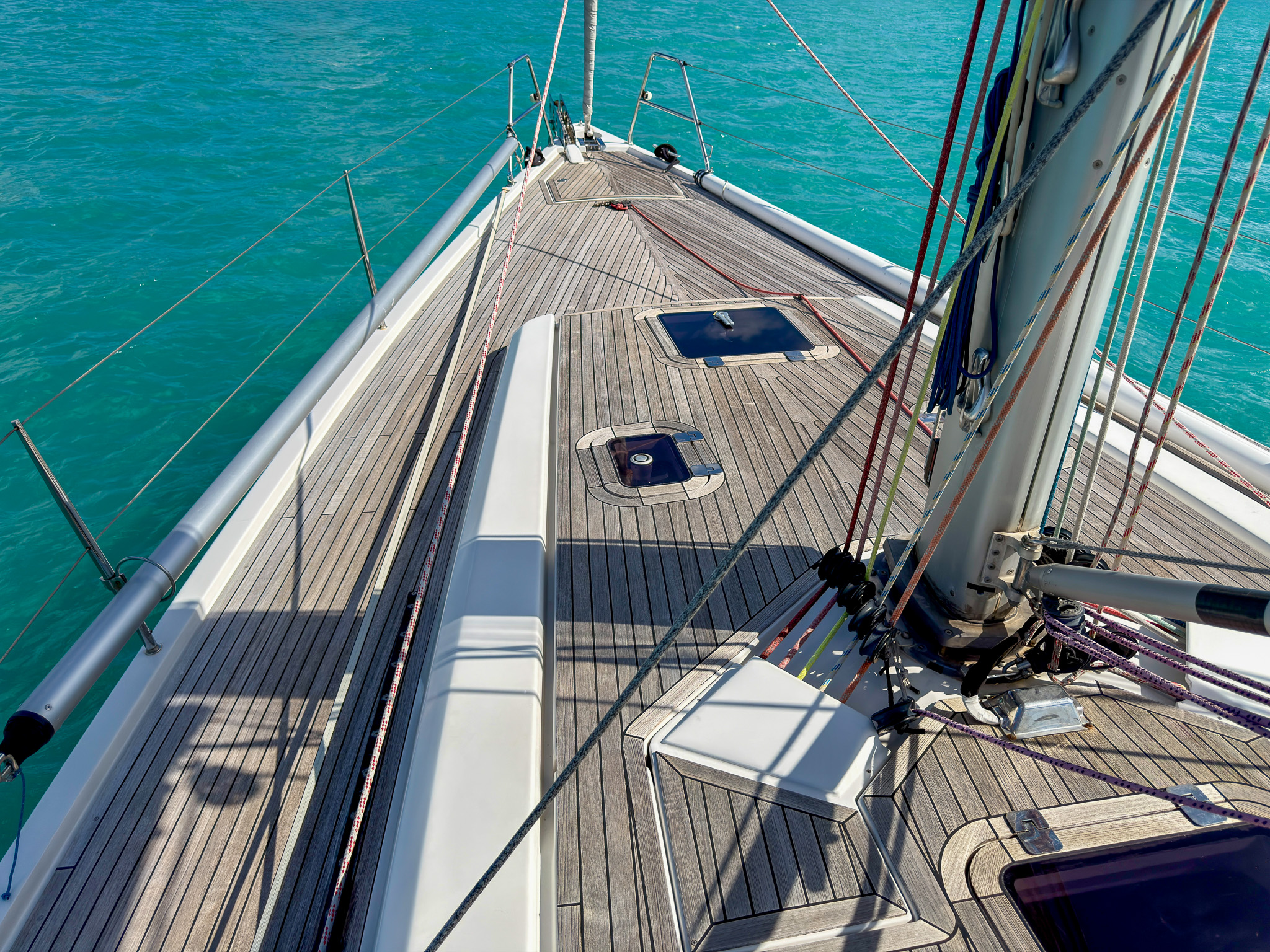

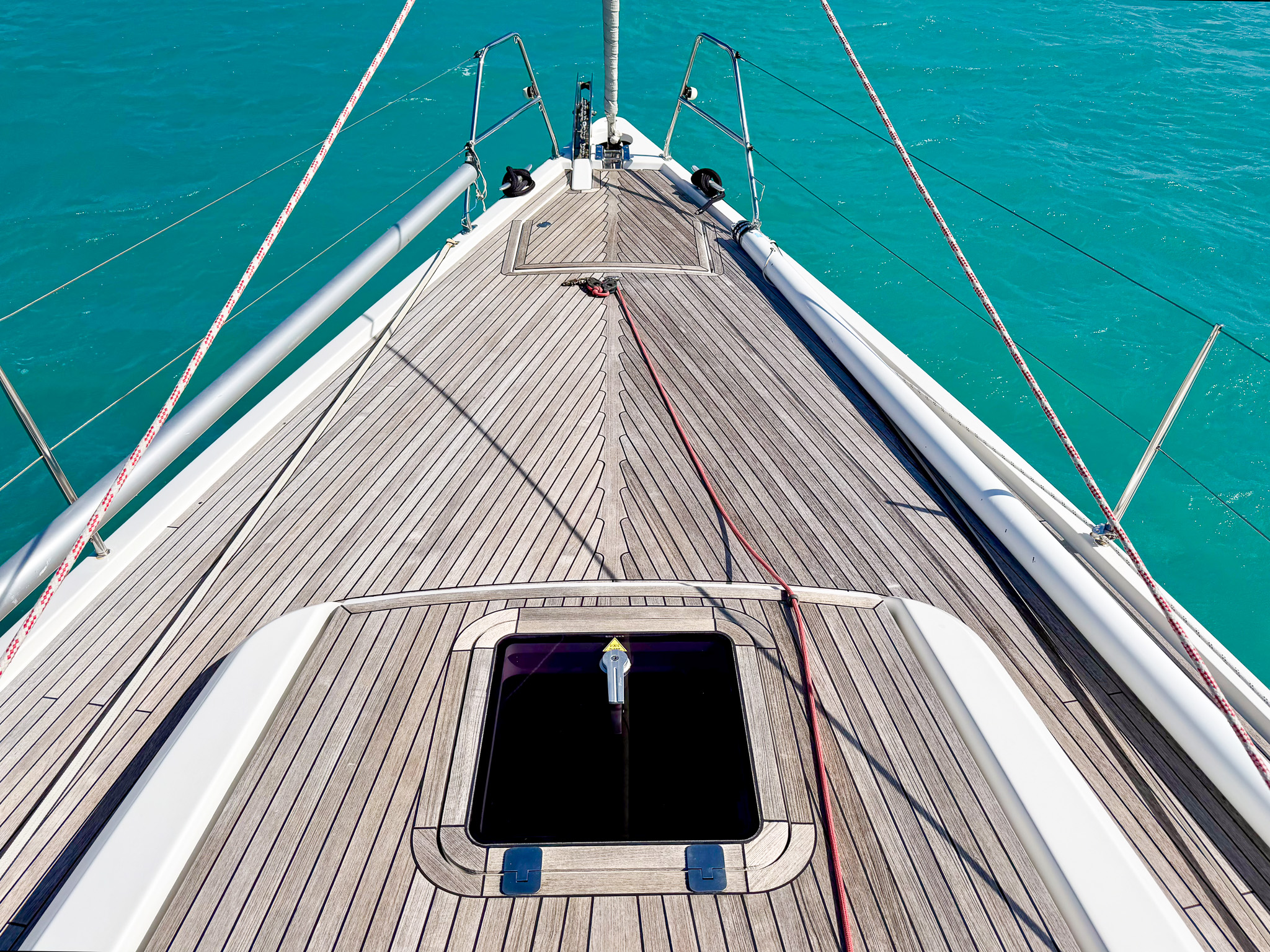

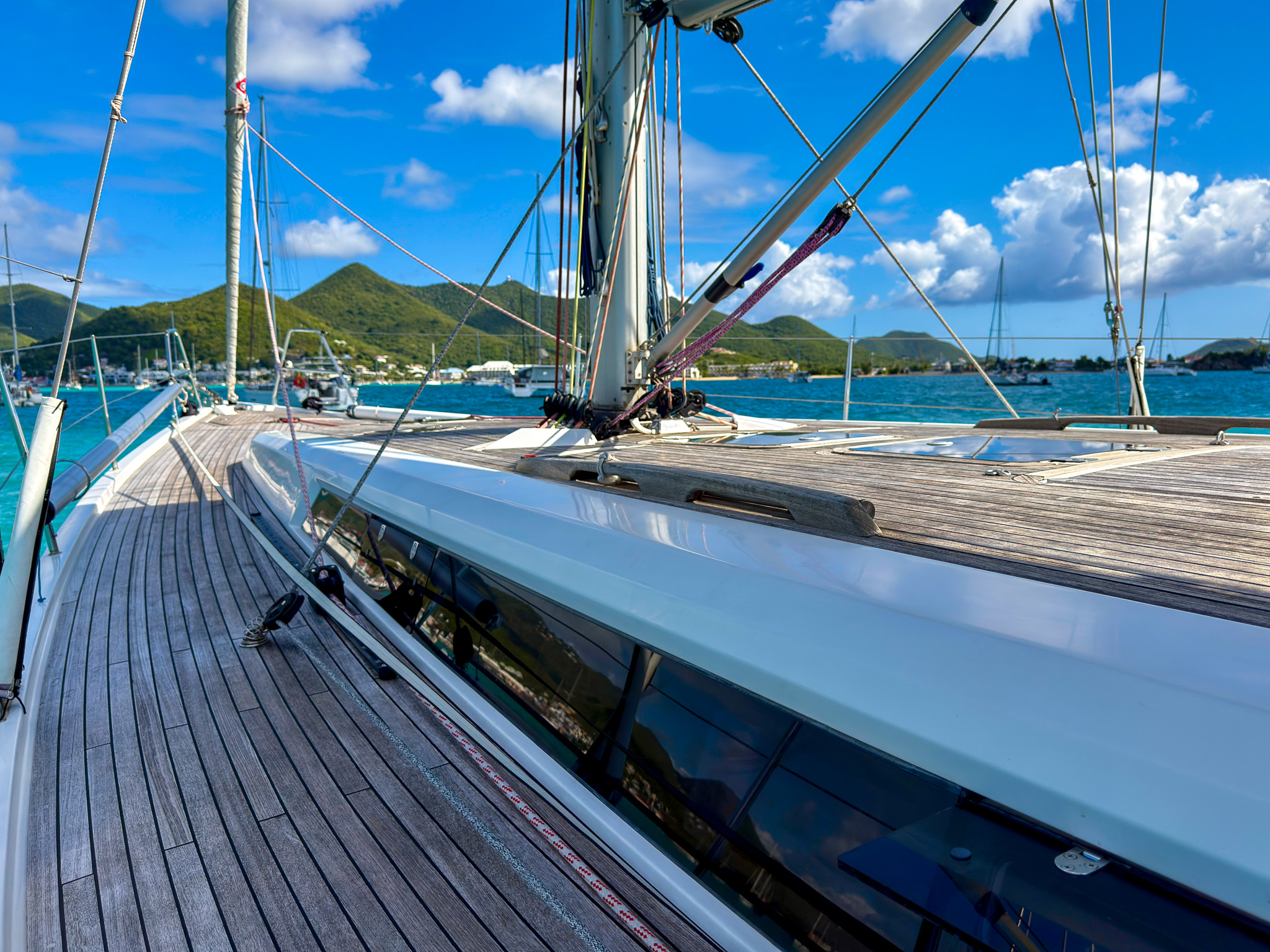

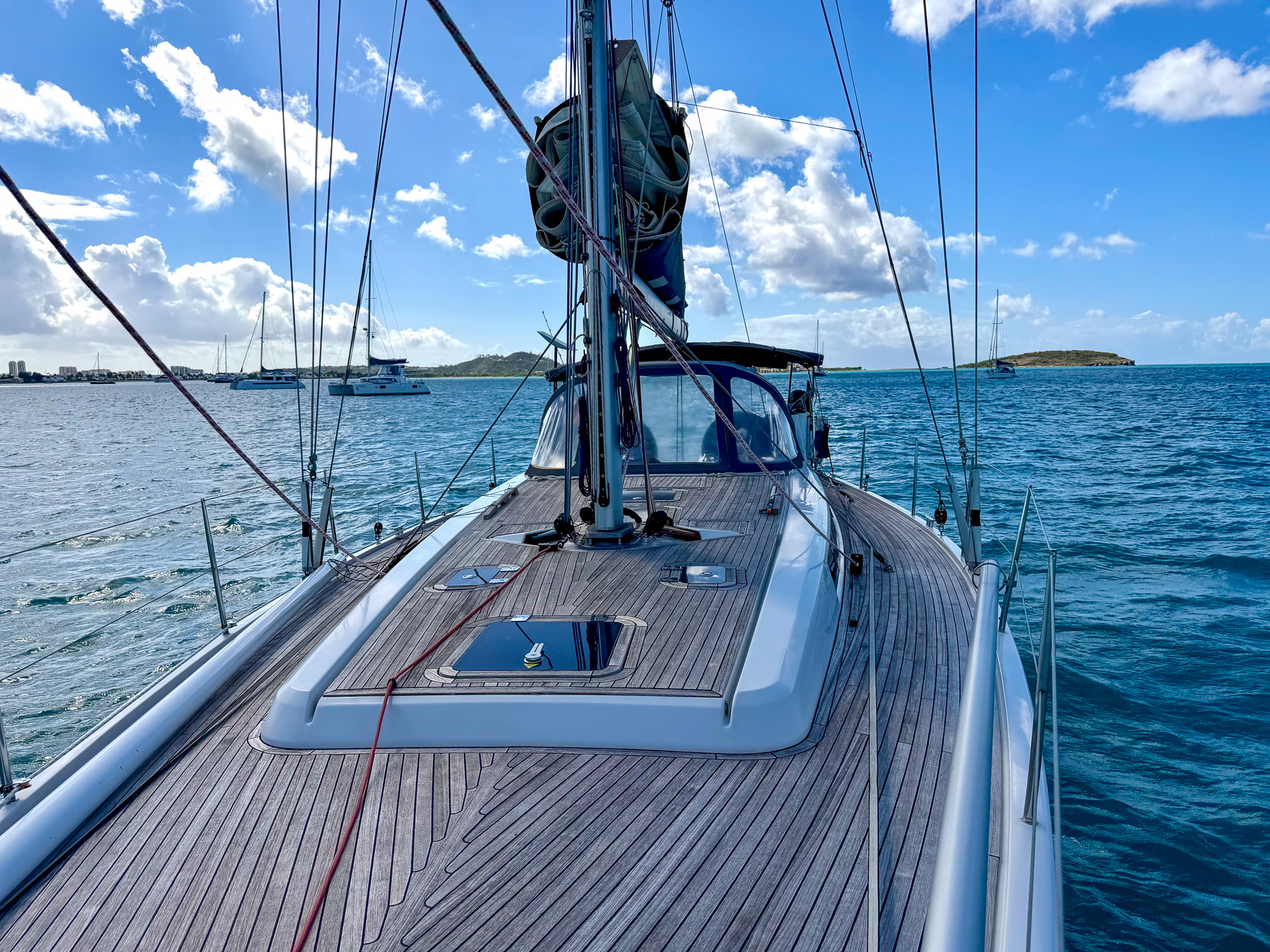

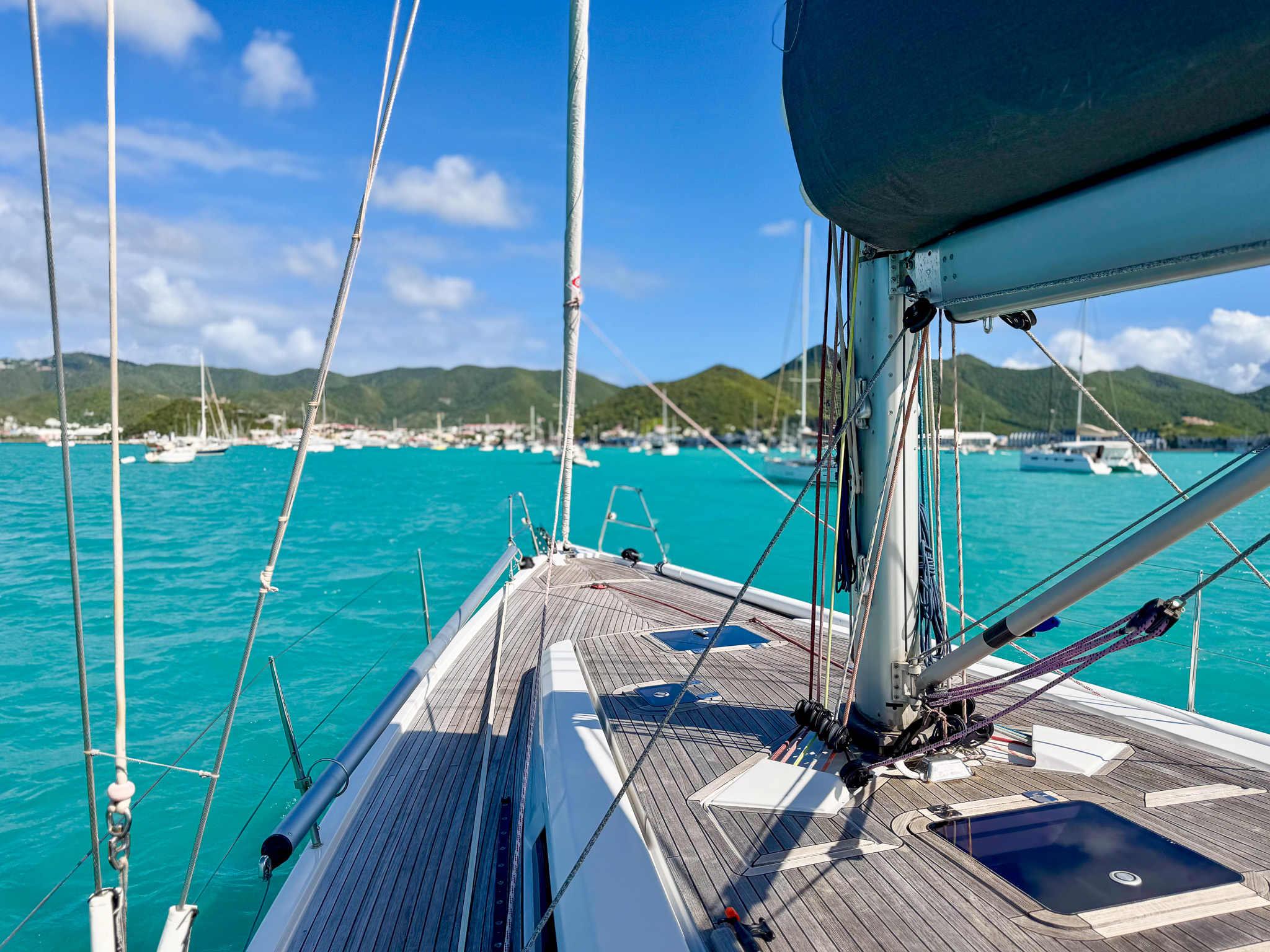

Full teak incl. deck, cockpit & coach roof covered with teak
(fully overhauled, sanded, cutting, painting with Teak Wonder in 2024 + 11/2025 painting with Teak Wonder)

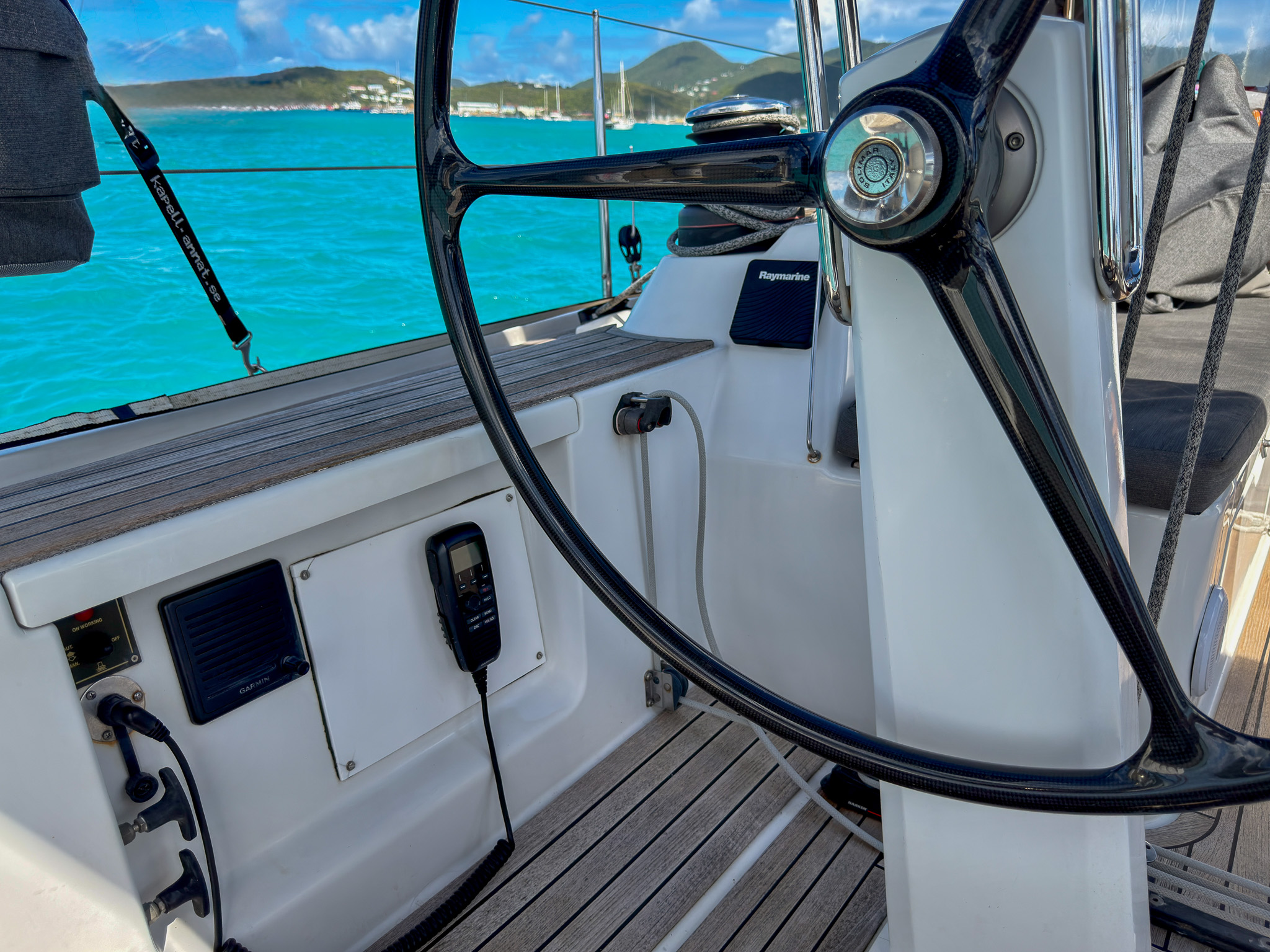

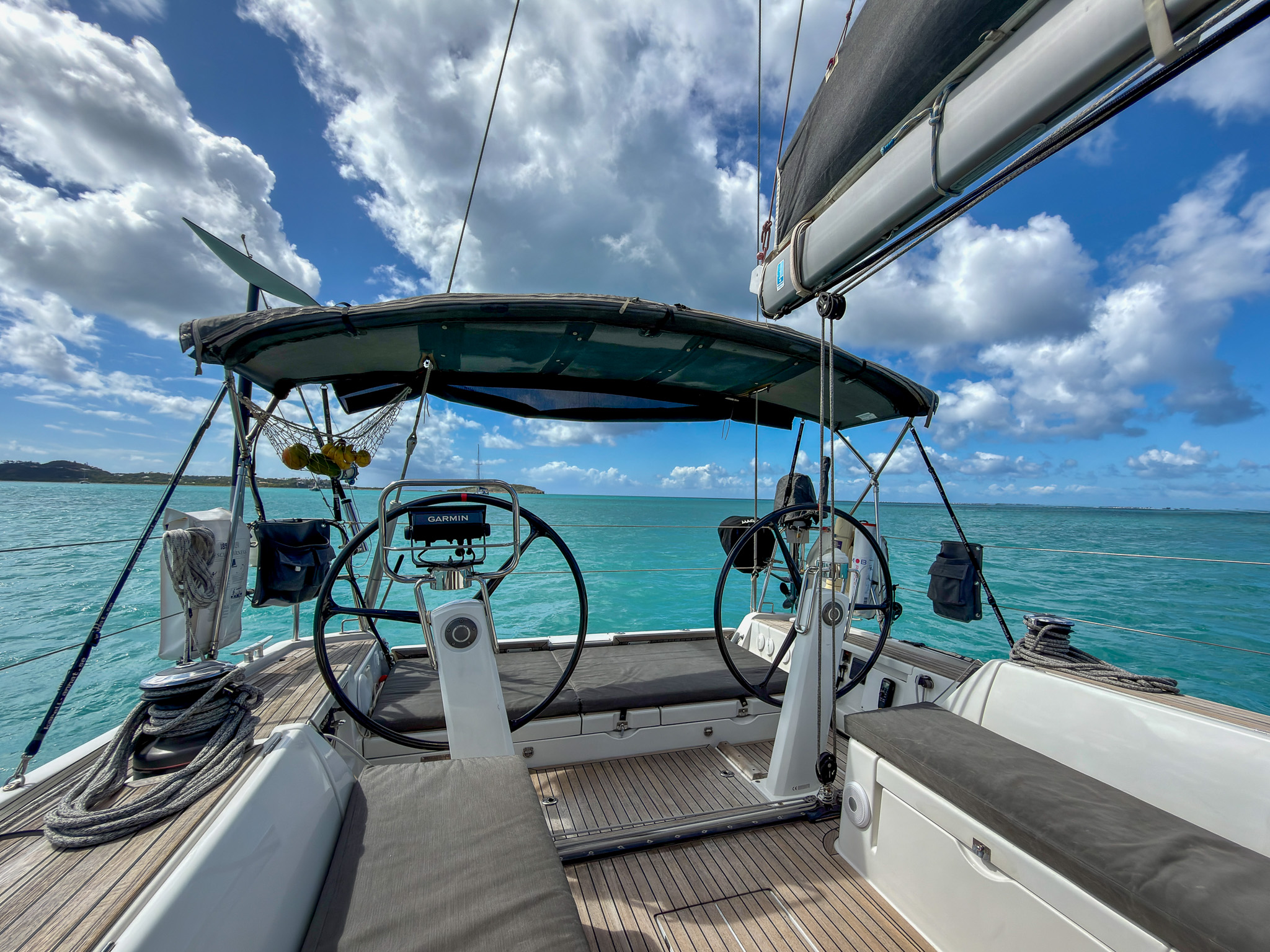

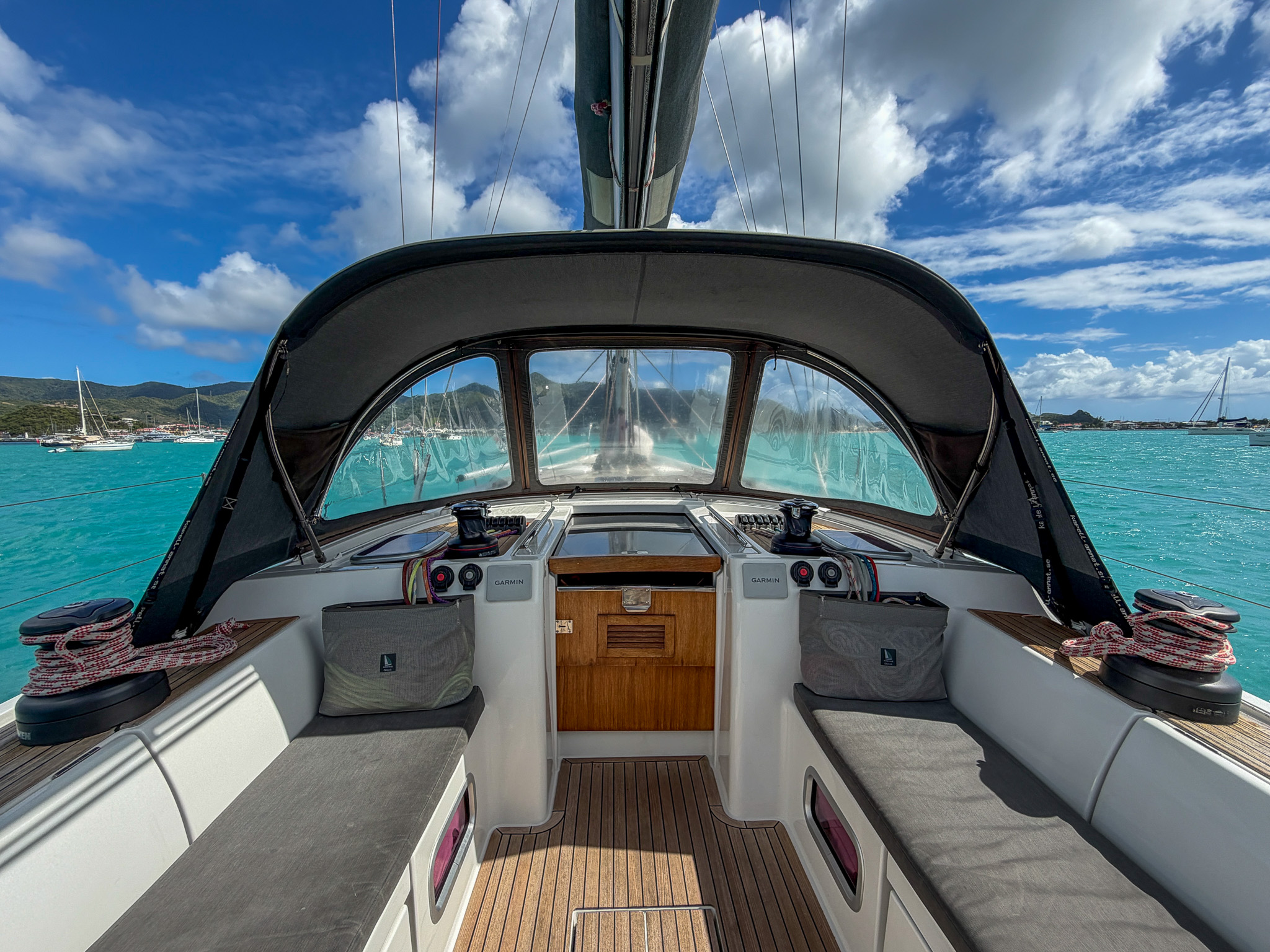

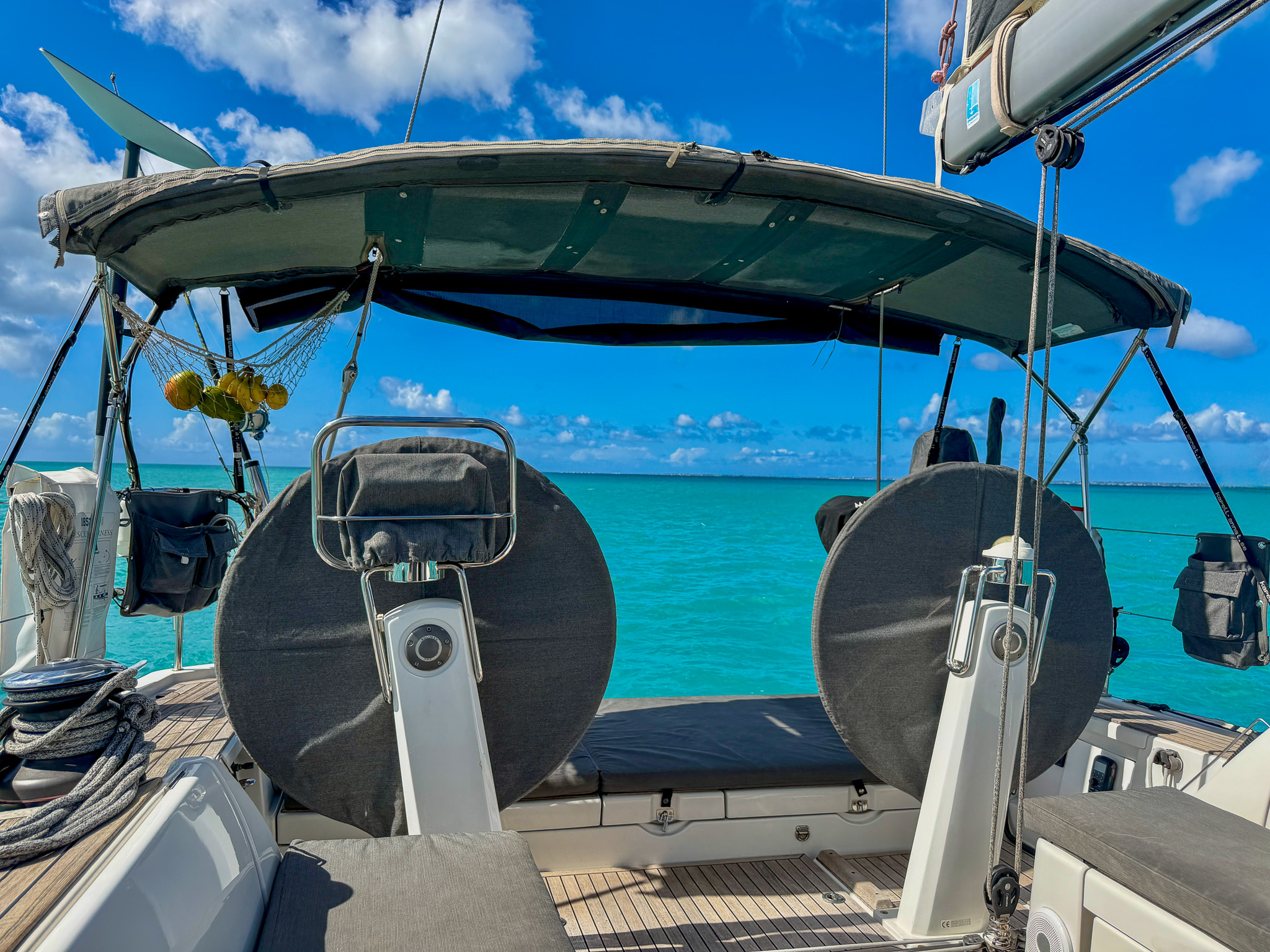

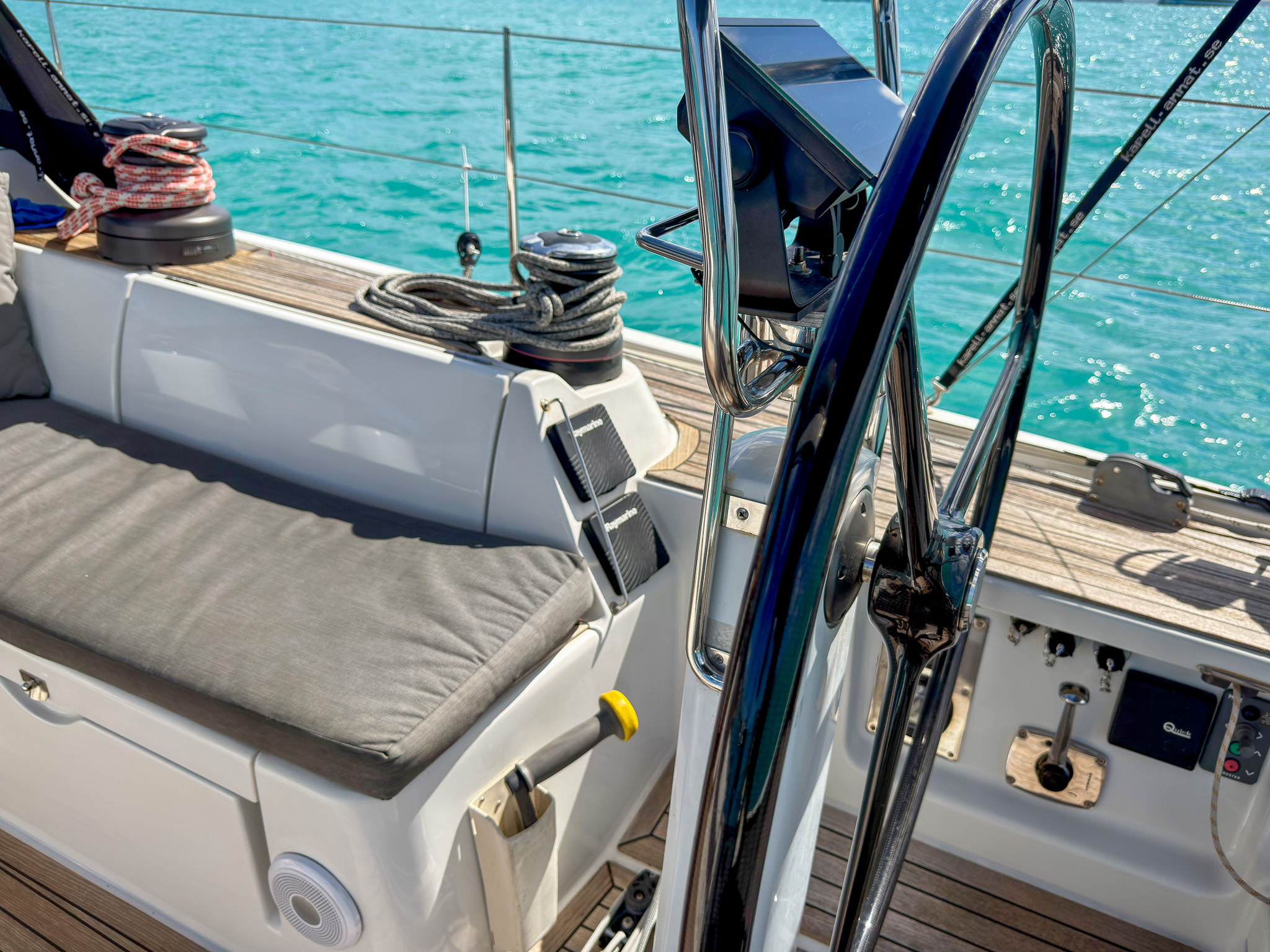

2 x Carbon steering wheels
2 x mid ships mooring cleats

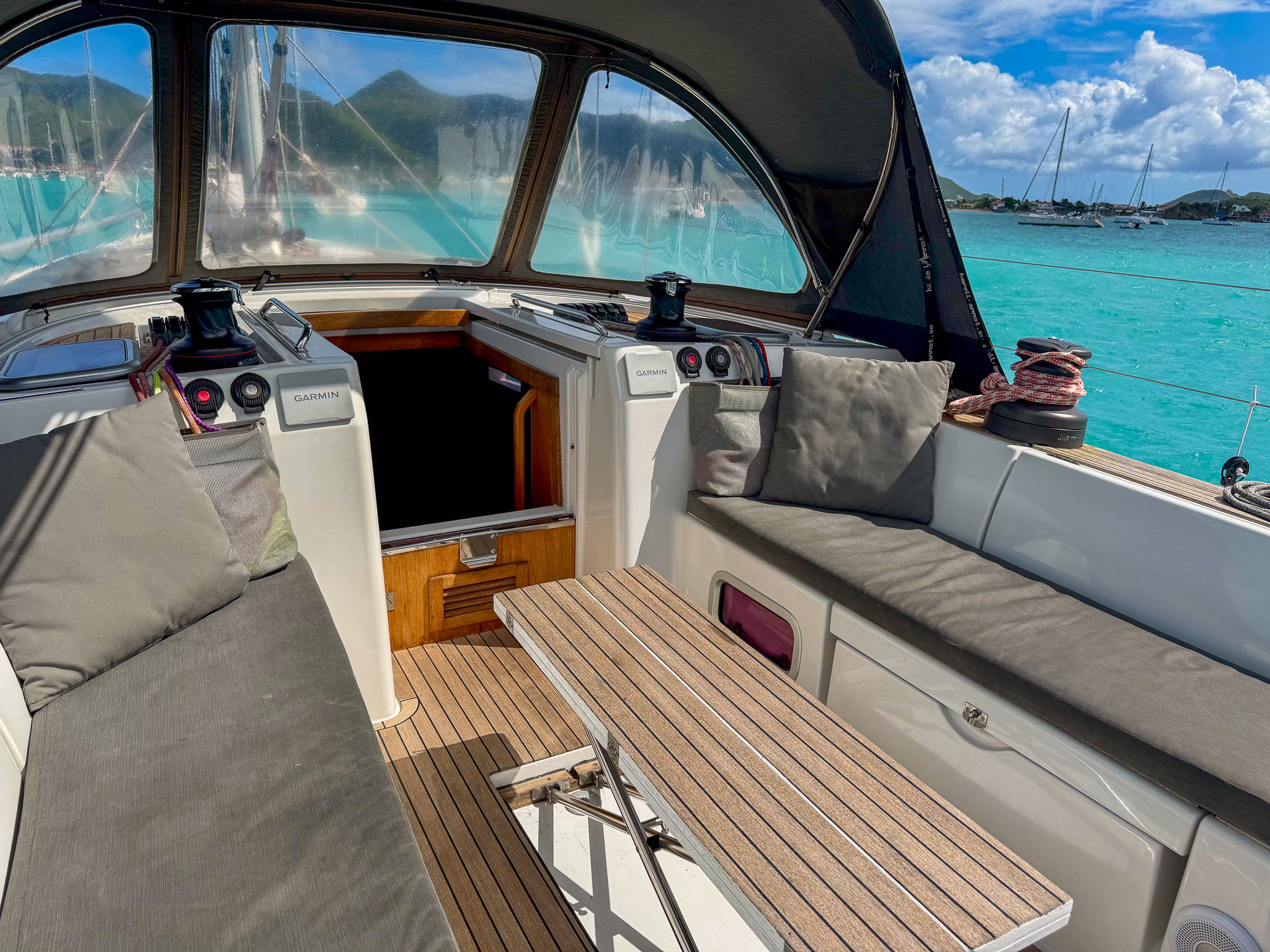

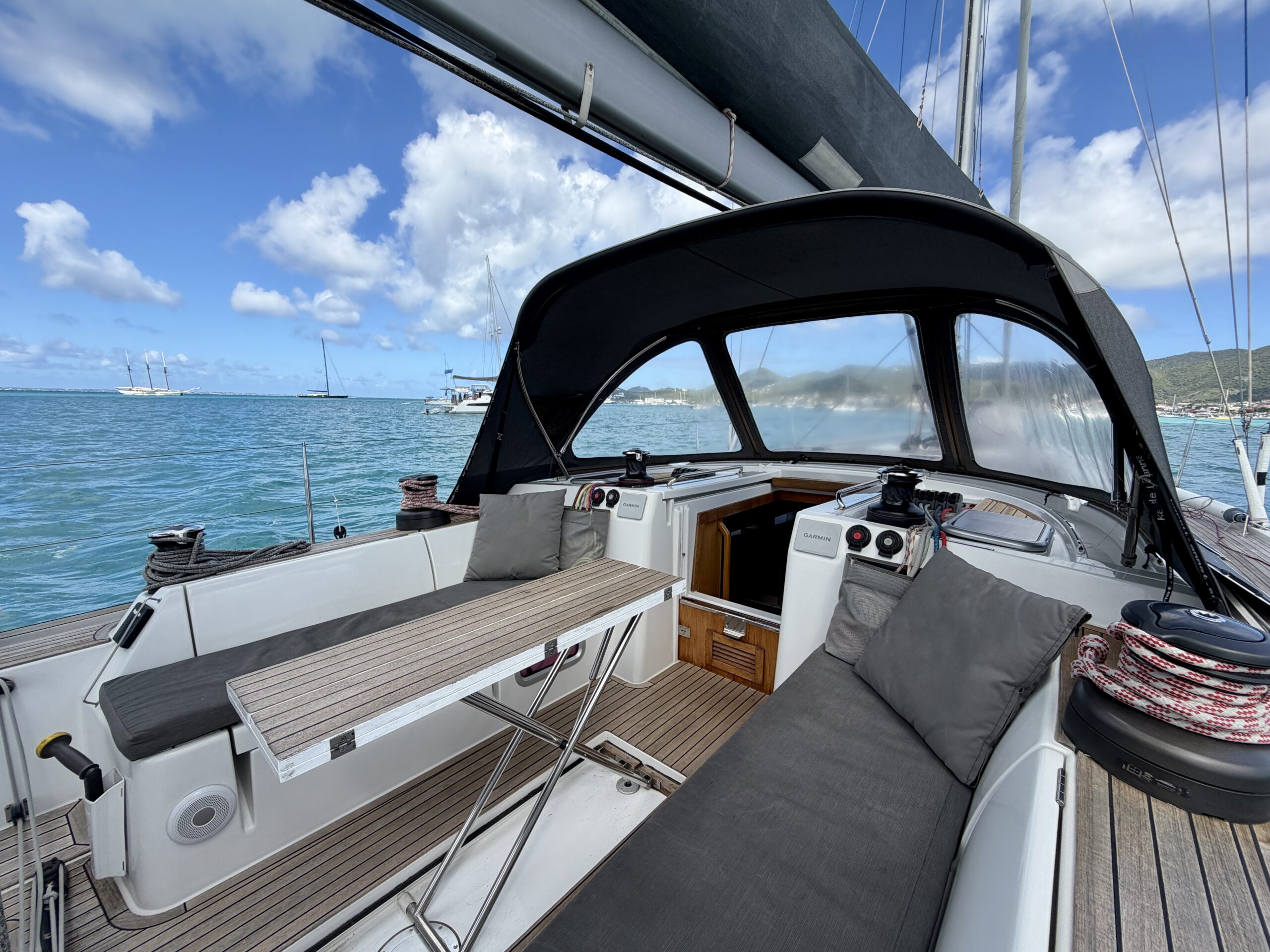

Retractable cockpit table in teak
QUICK Eagle 1000w anchor windlass, 10mm gypsy, serviced 1x/year

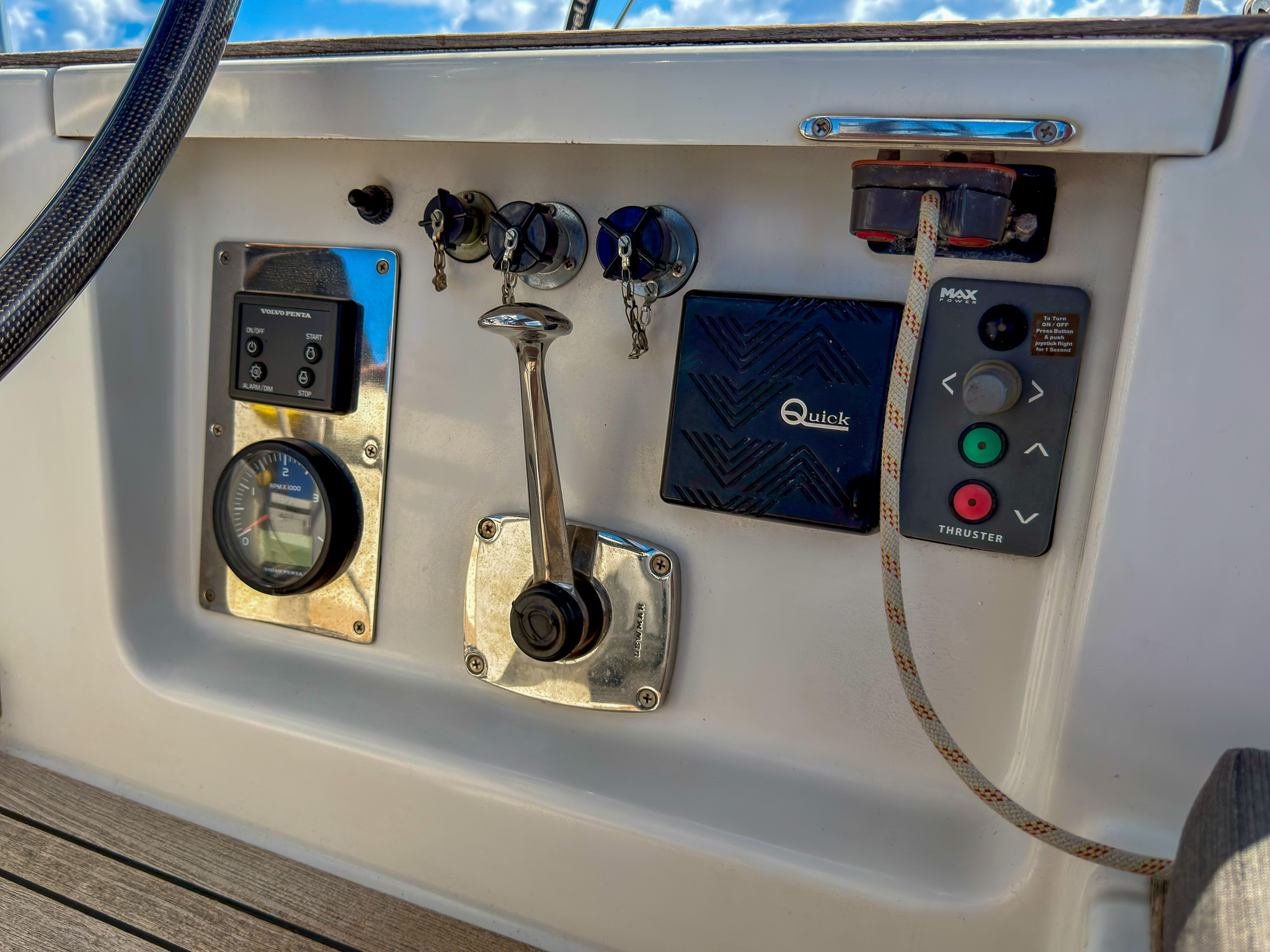

Anchor windlass remote control panel in cockpit
27kg ULTRA anchor, 60m 10mm chain + 40m rope 2022
15kg DELTA anchor incl. 50m leaded anchor rope
8 x fenders, 6 with fender covers. New fender covers 2025
1 x mooring ball fender
6 x Mooring lines
Deck brush + Boat hook

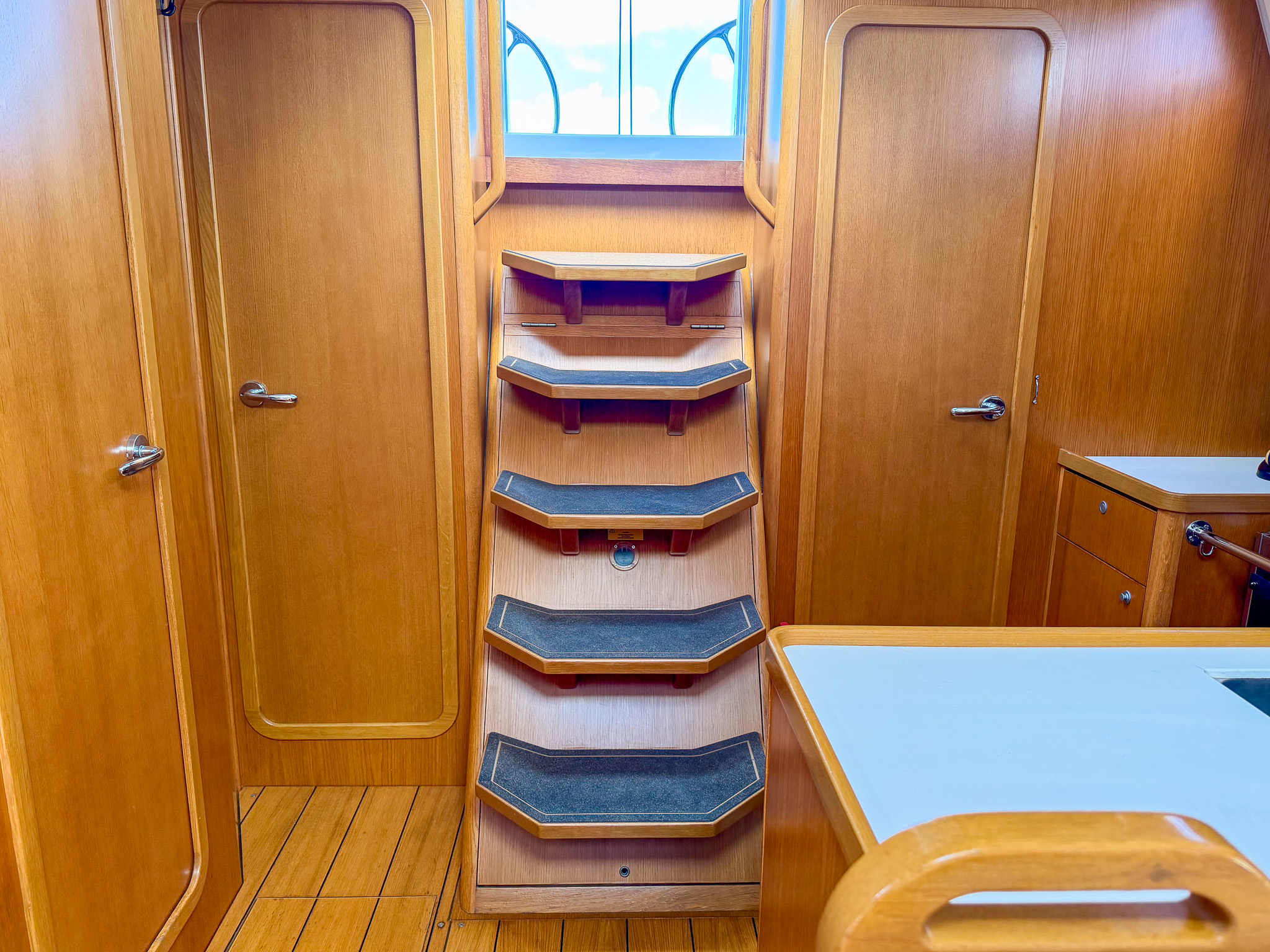

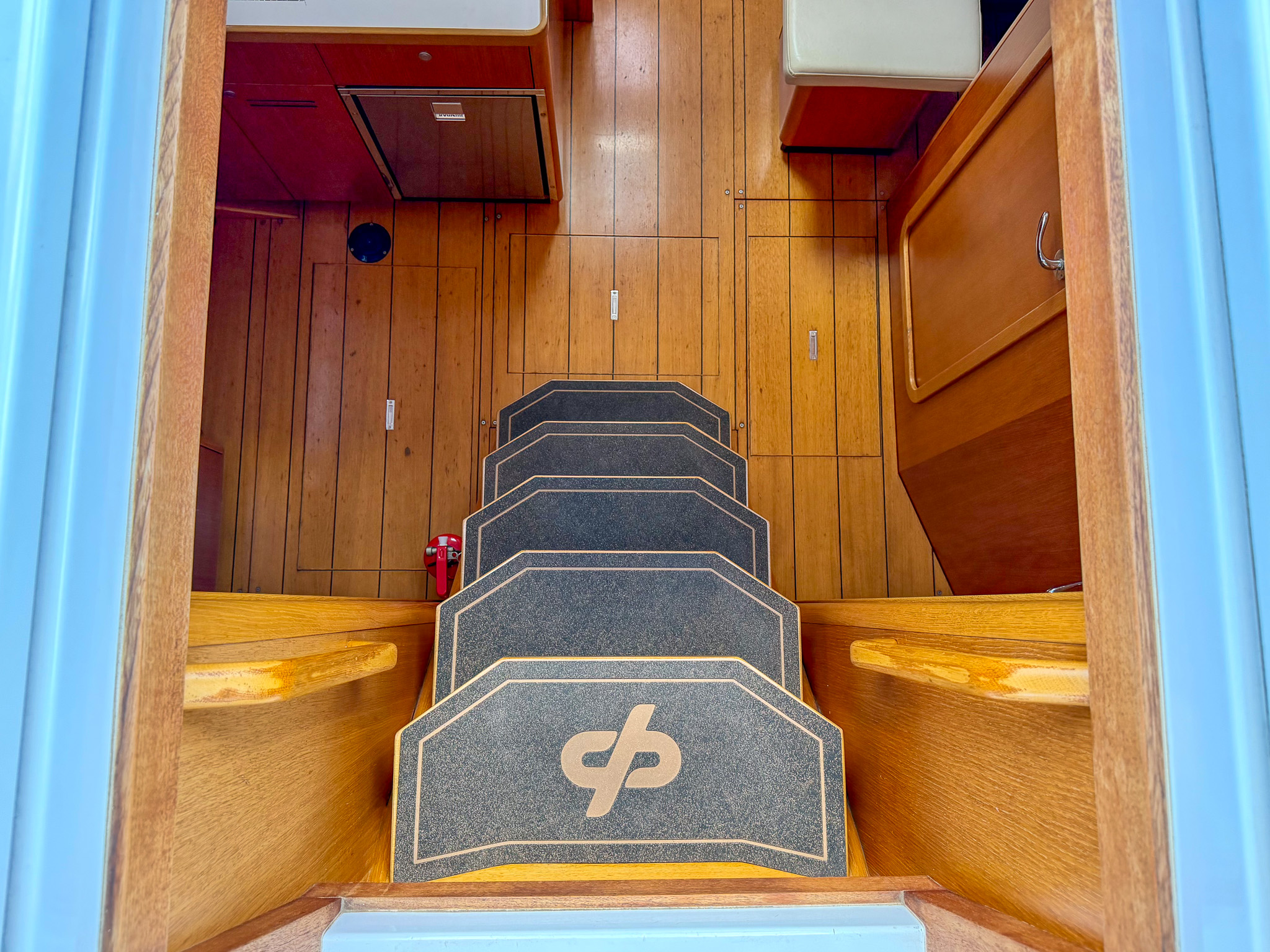

New anti-slip laser cut cork stair covers 11/2025

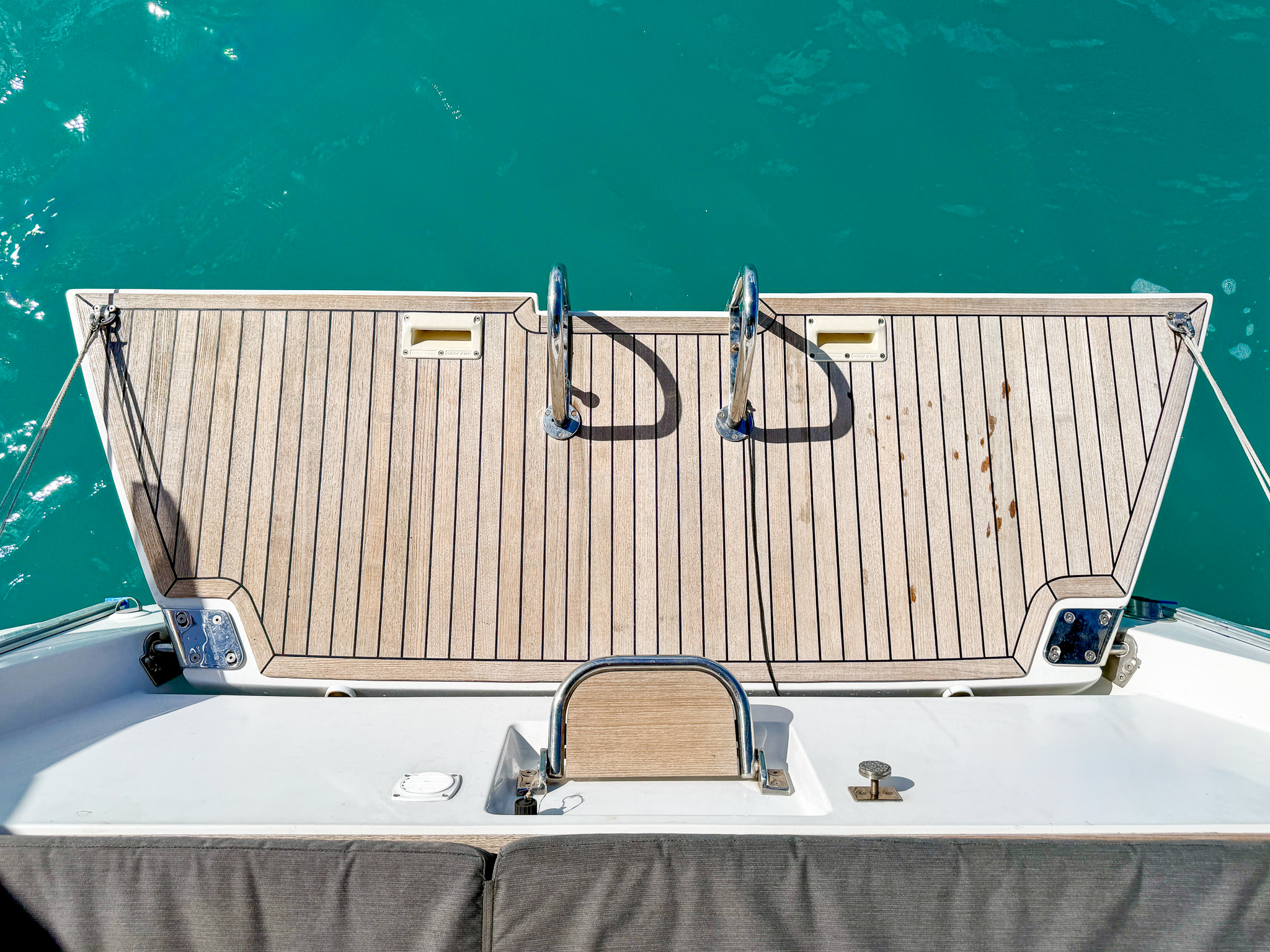

New dyneema ropes for the bathing platform, grey 12/2024

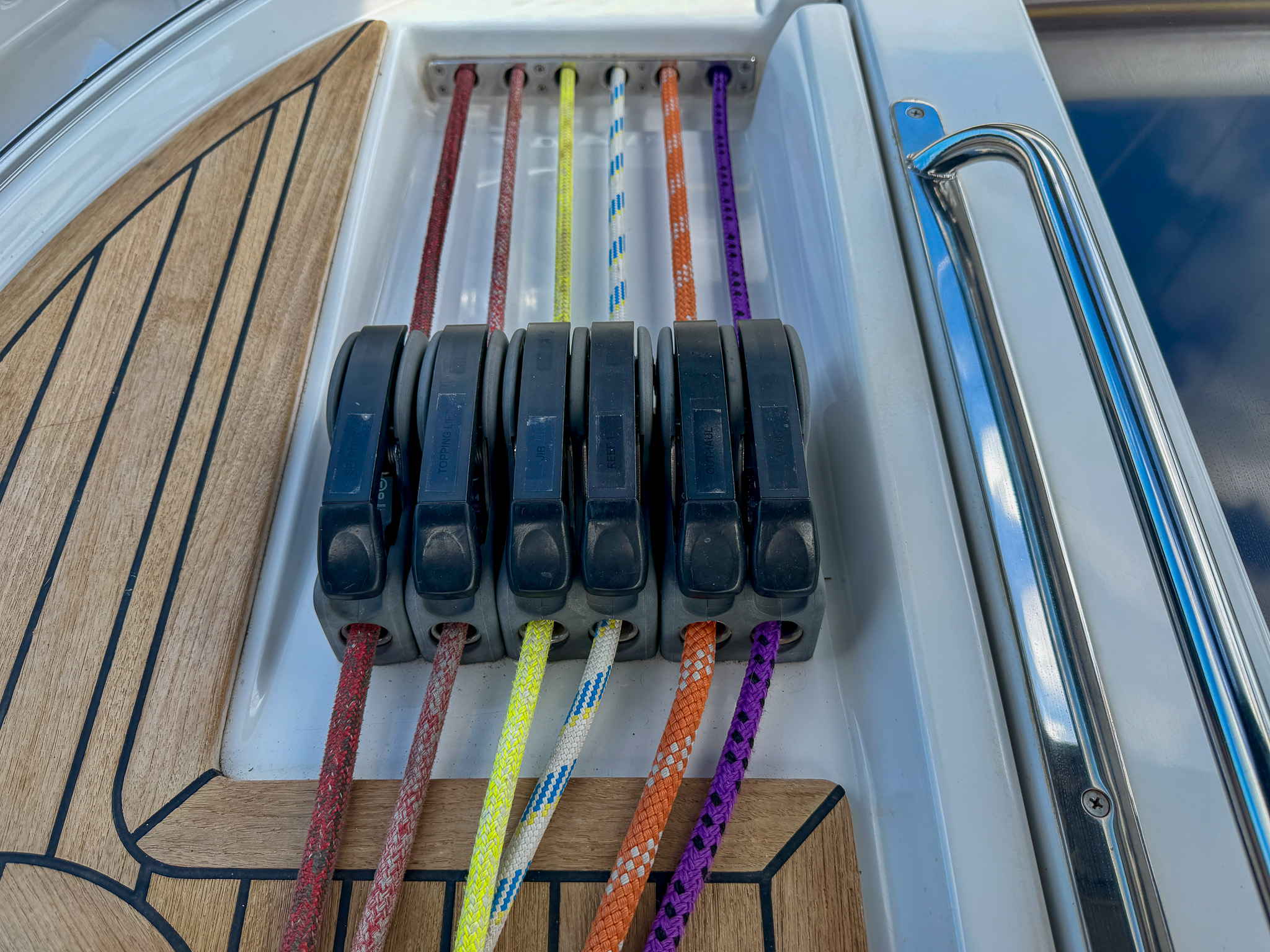

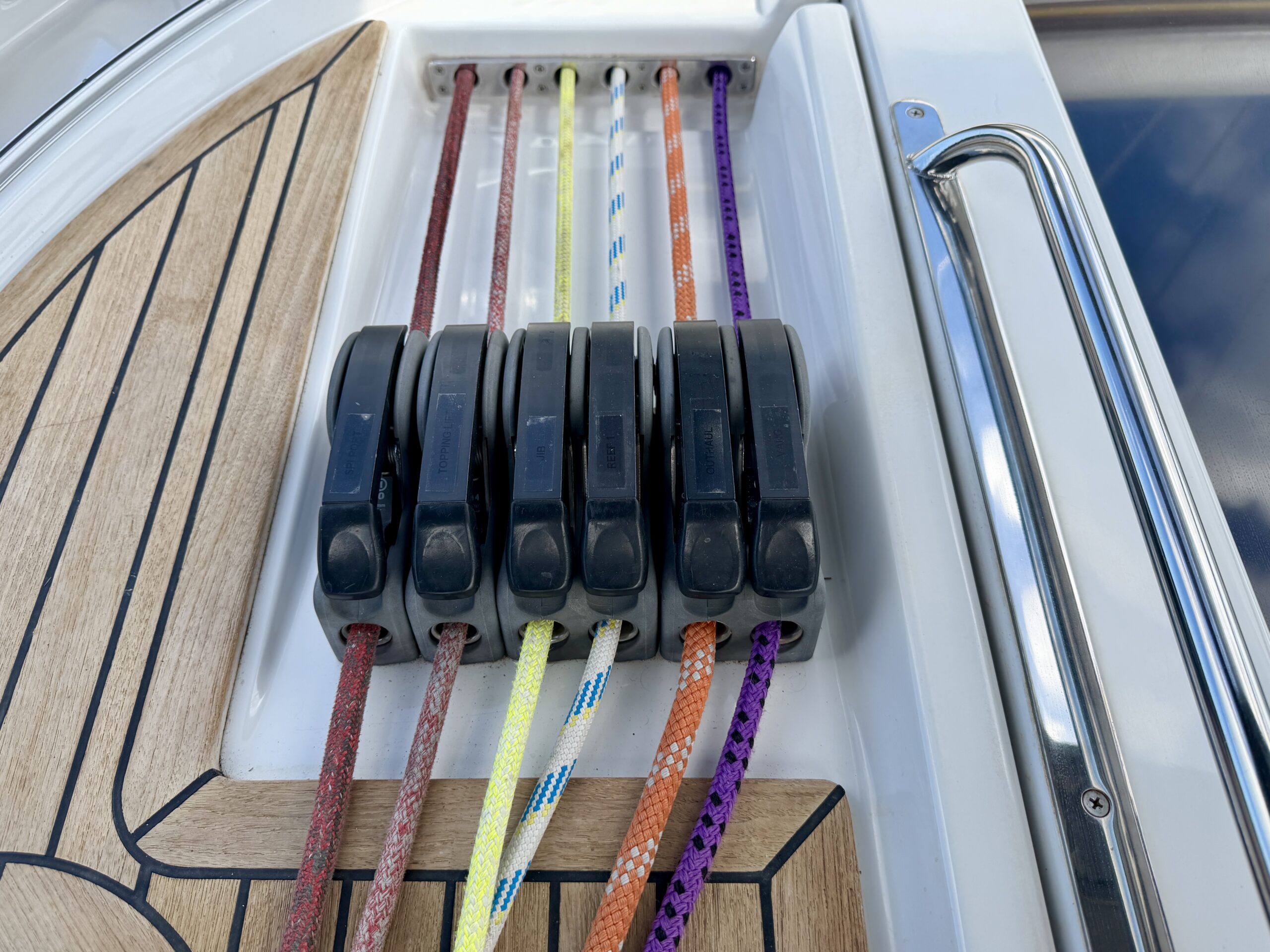

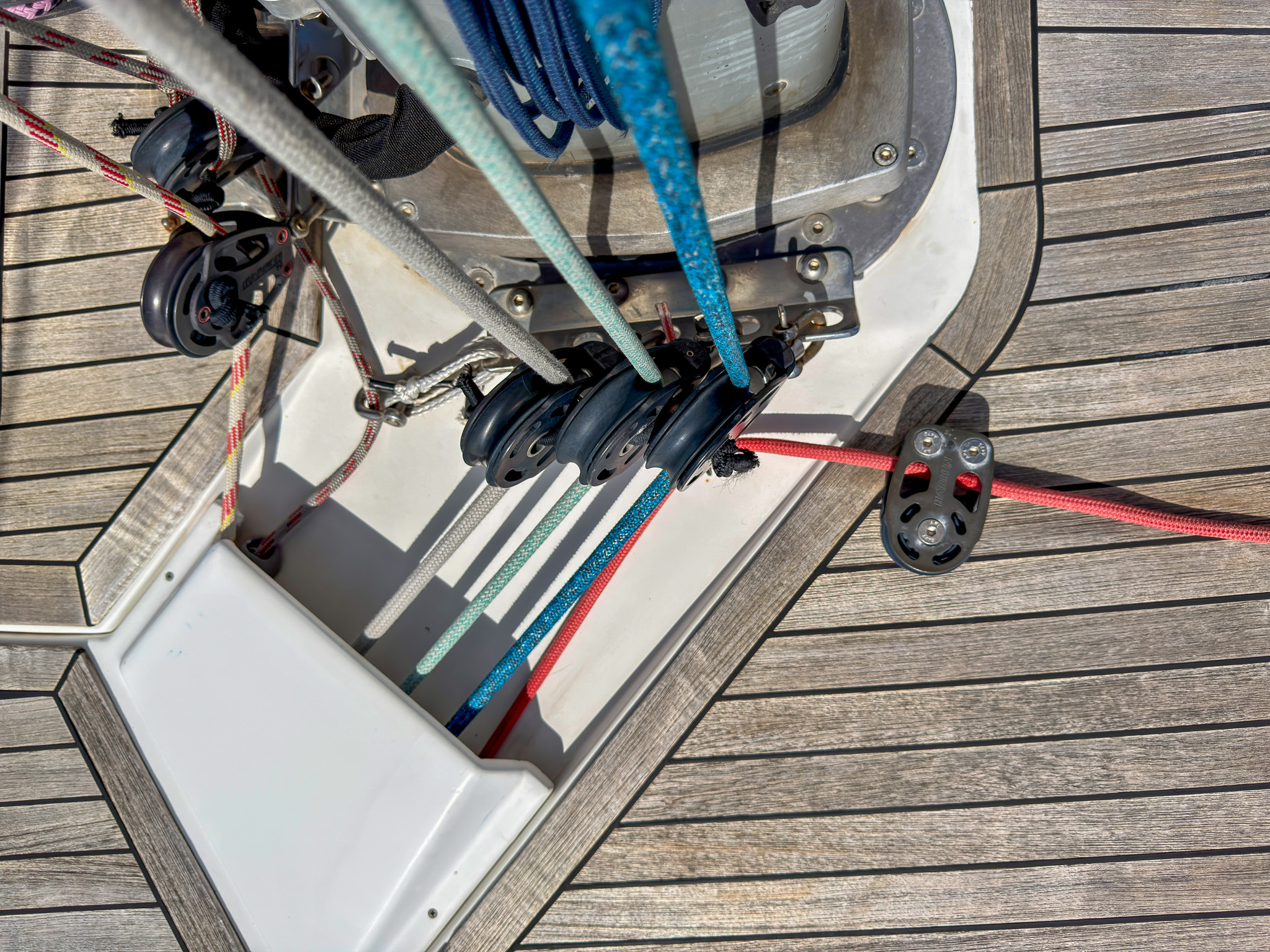

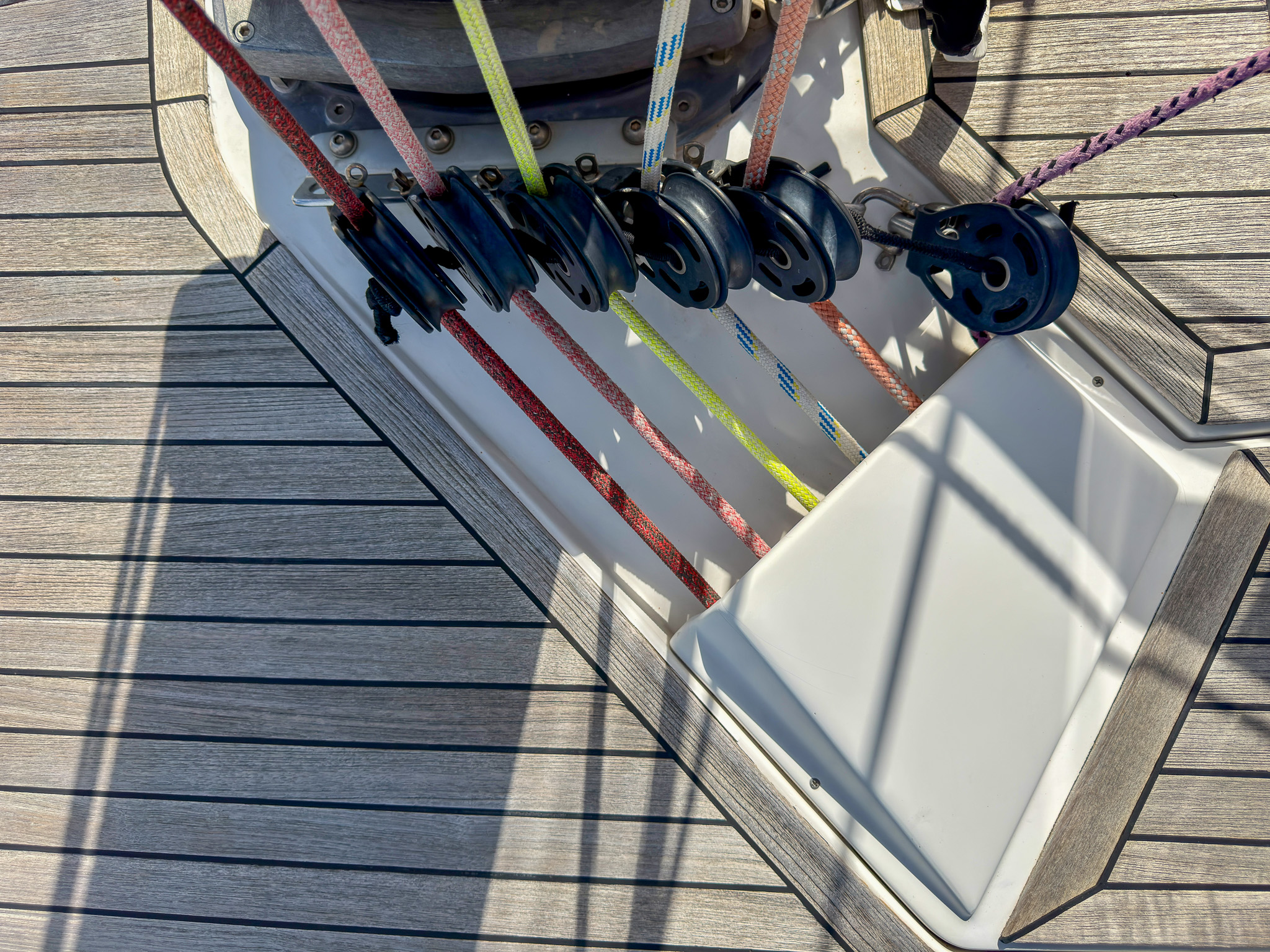

Spinlock clutches serviced and upgraded 2021
New rudder bearing and housing, Solimar 2022
Gas valves and hoses new 2021

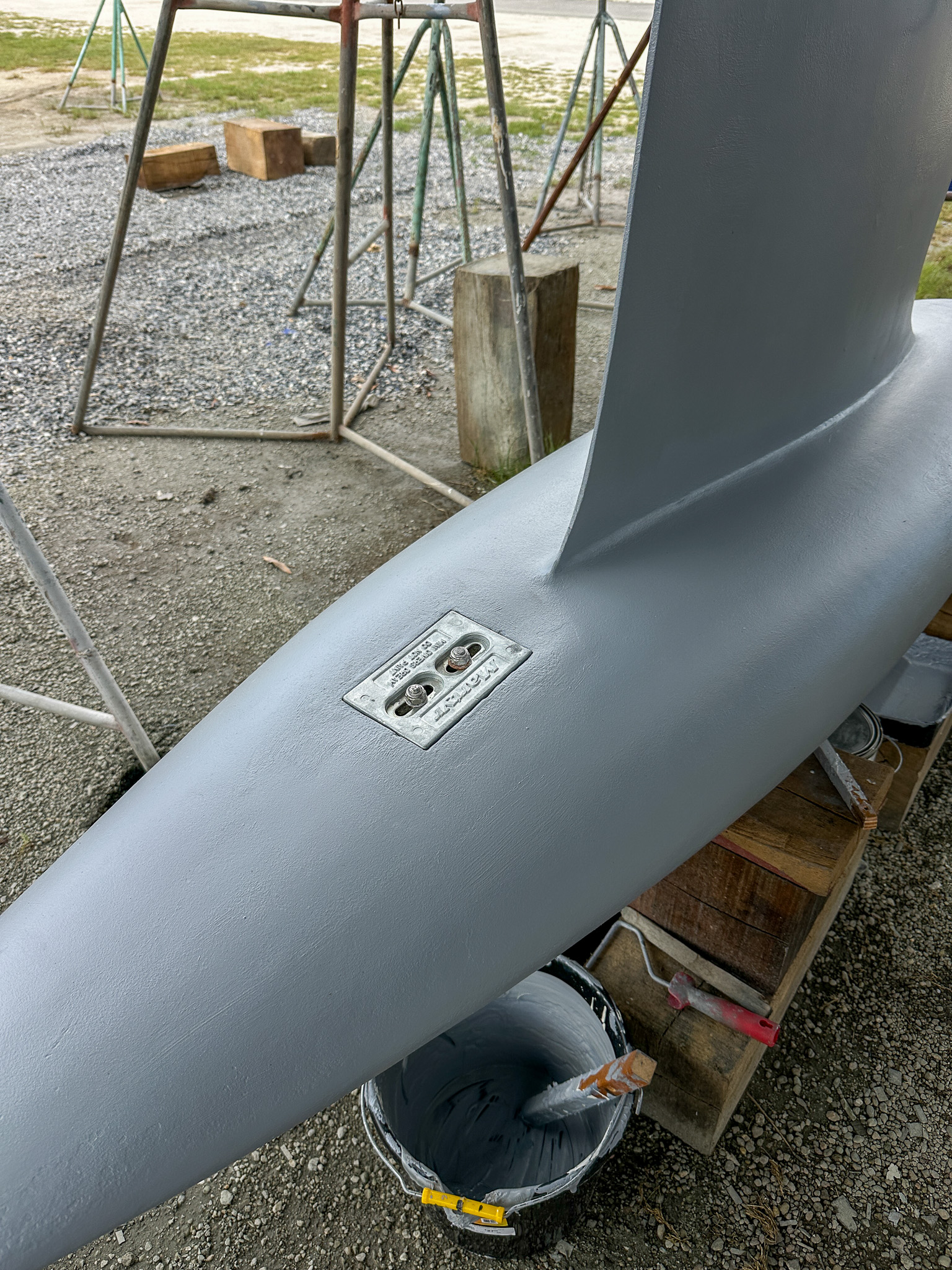

Latest antifouling (Colorkote Seahawk), new anodes 11/2025
Antifouling/waterline was raised and the decorative strip was professionally painted, grey 01/2025

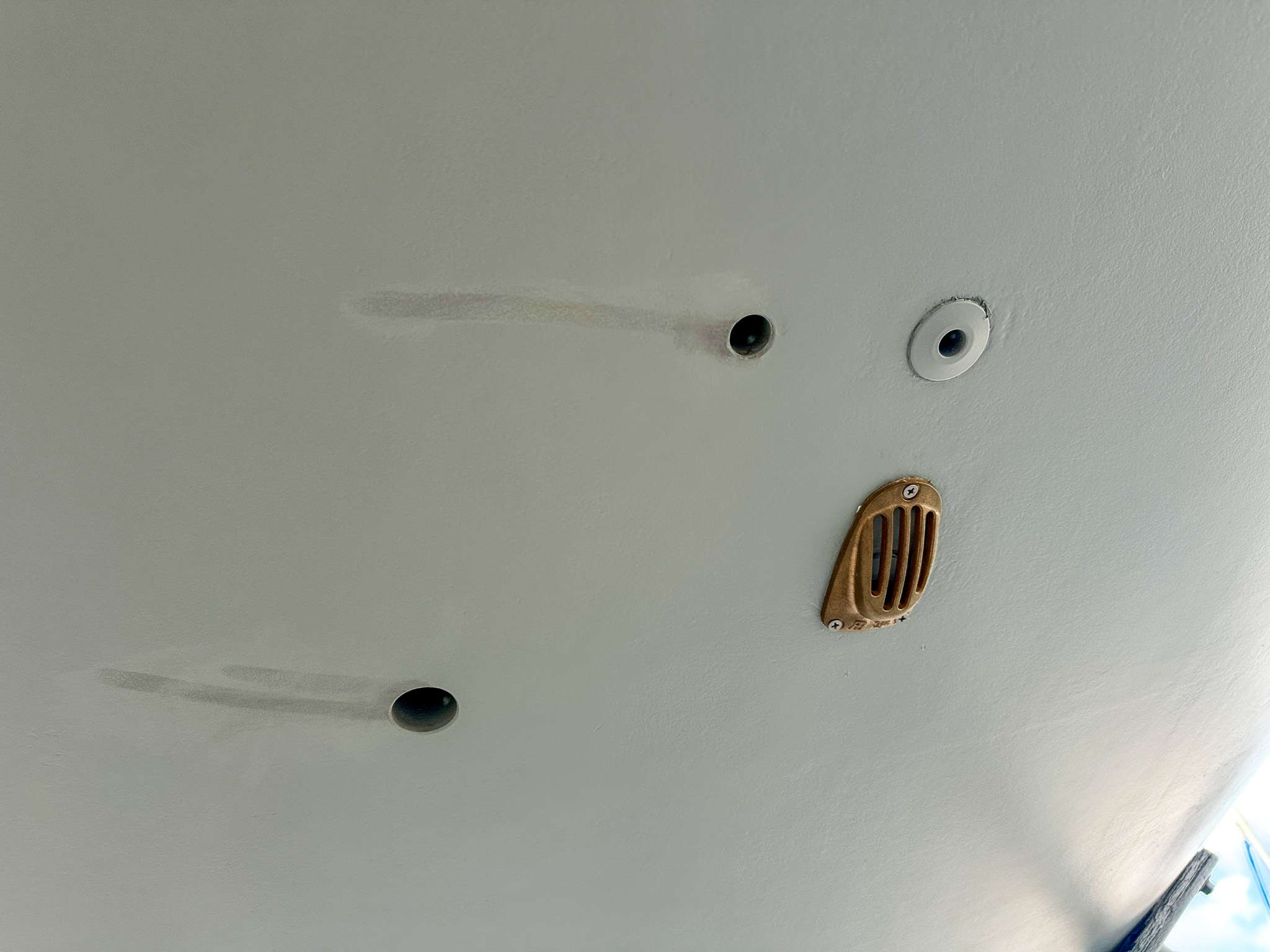

All seacocks and outlets replaced 01/2025

Elektronik och instrument
Garmin Speed, Echo & Temp, AIRMAR DST 810 Transducer, Generation 2 2025
Garmin gWind transducer incl. GND 10 2022
GARMIN Radar, GMR18 xHD 2022
2 x GARMIN TD50 4.4”, Multifunction instruments, cockpit mounted 2022
1 x GARMIN TD50 4.4”, Multifunction instrument mounted in front cabin 2022
3 x Raymarine i70s Multifunction instrument at helms position 2022
Garmin Plotter 932 mounted at s/s crash bar in cockpit, quick fittings 2022

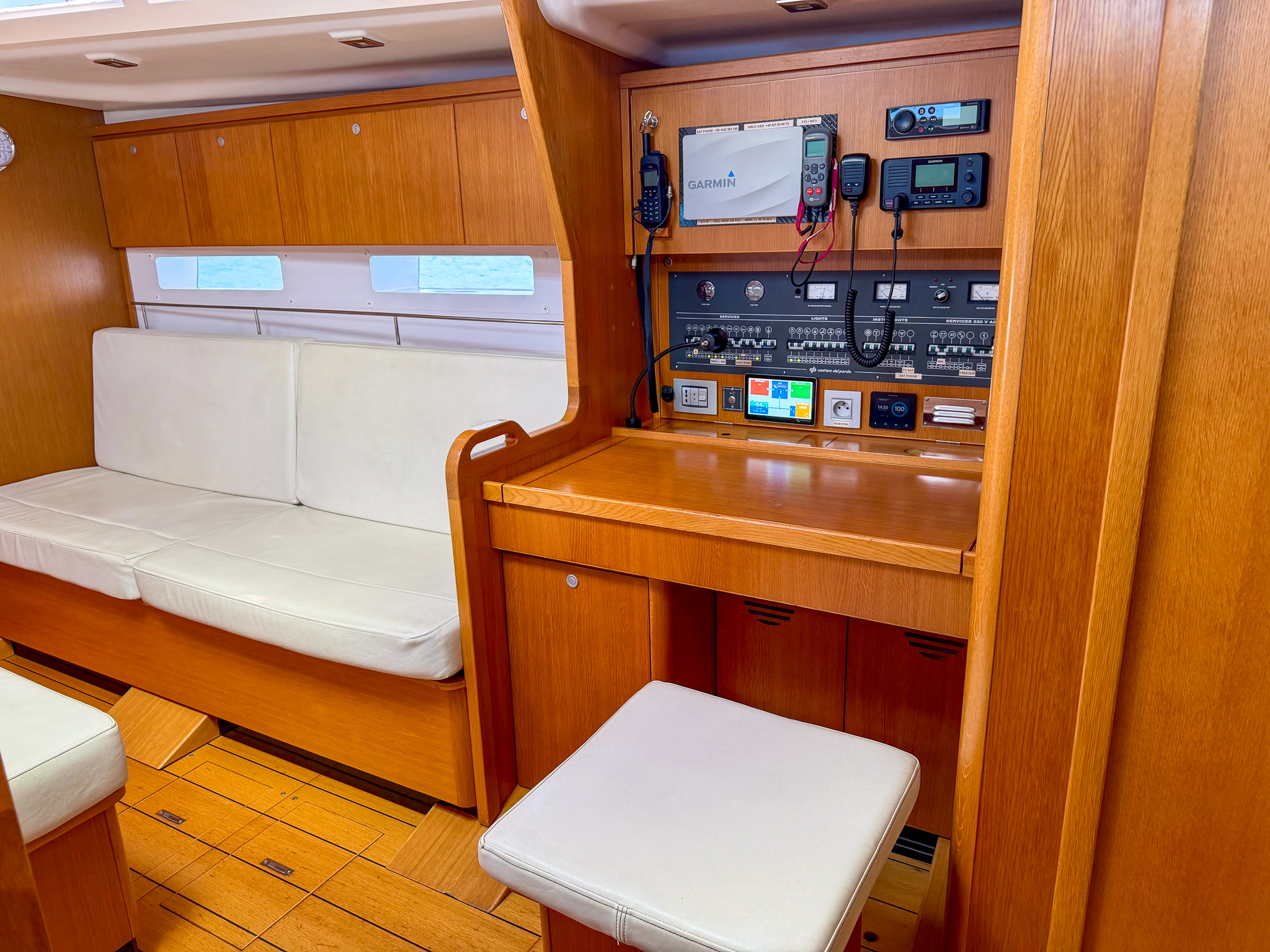

Garmin Plotter 922 mounted at navigation table
Raymarine Autopilot incl. ASU 400 computer, 2014, spare engine, spare gear (2025)
Autopilot ST70i instrument 2022
Raymarine SmartController, Wireless autopilot remote and instrument repeater 2021
Garmin GMS10, Ethernet Switch 2022
All Raymarine + Garmin equipment are connected via Sea Talk to NMEA 2000 and MFD’s via Ethernet

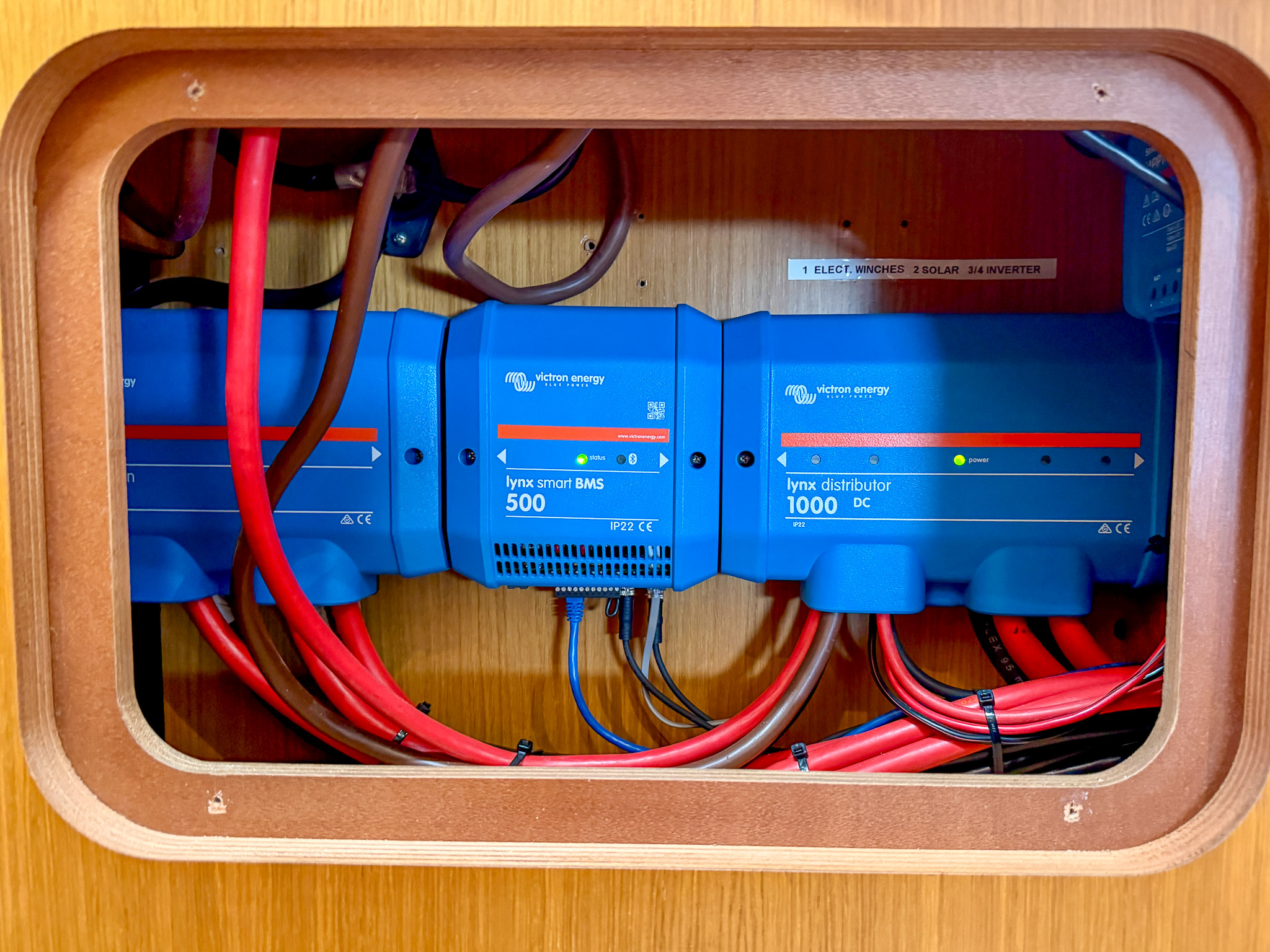

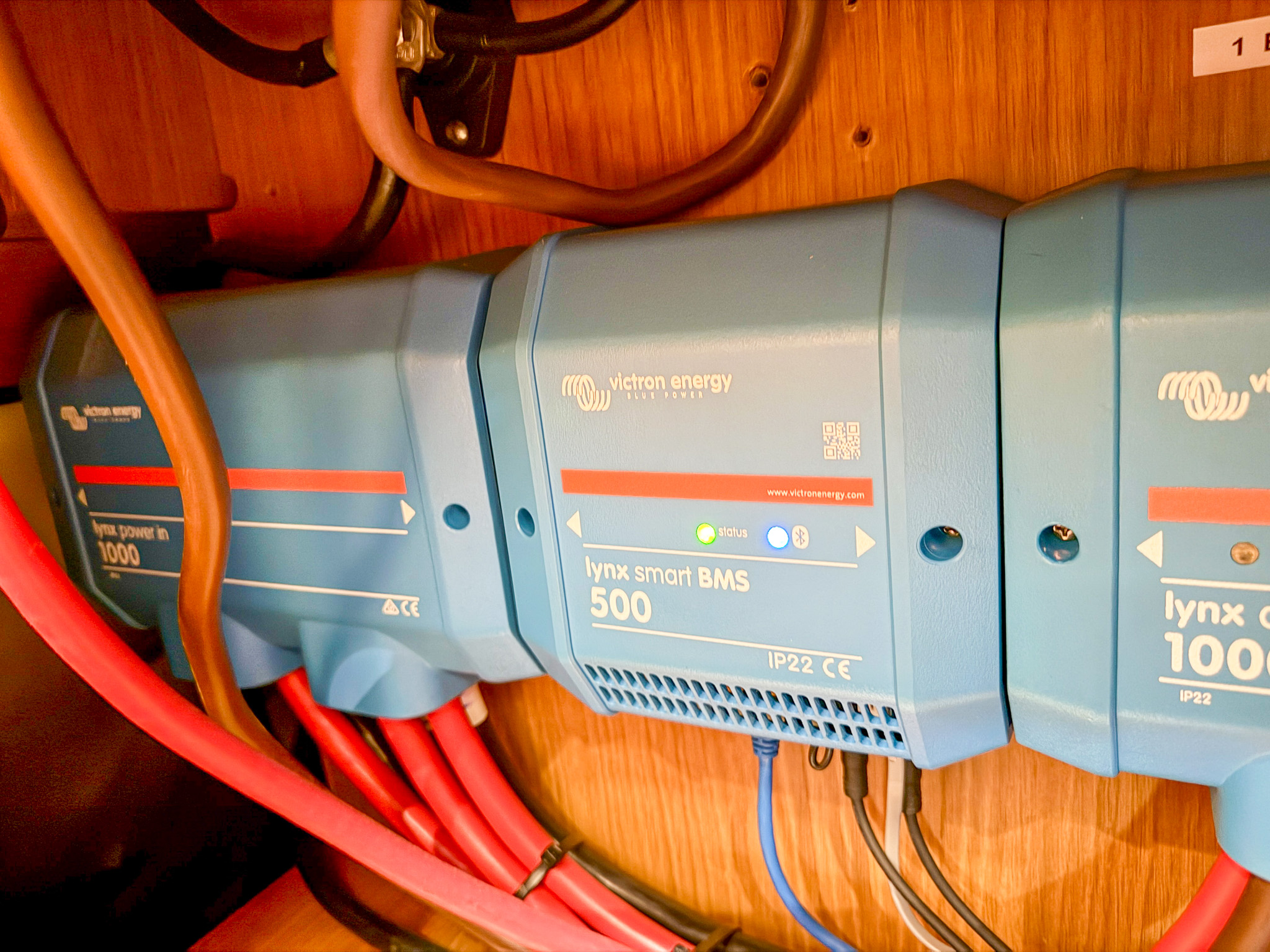

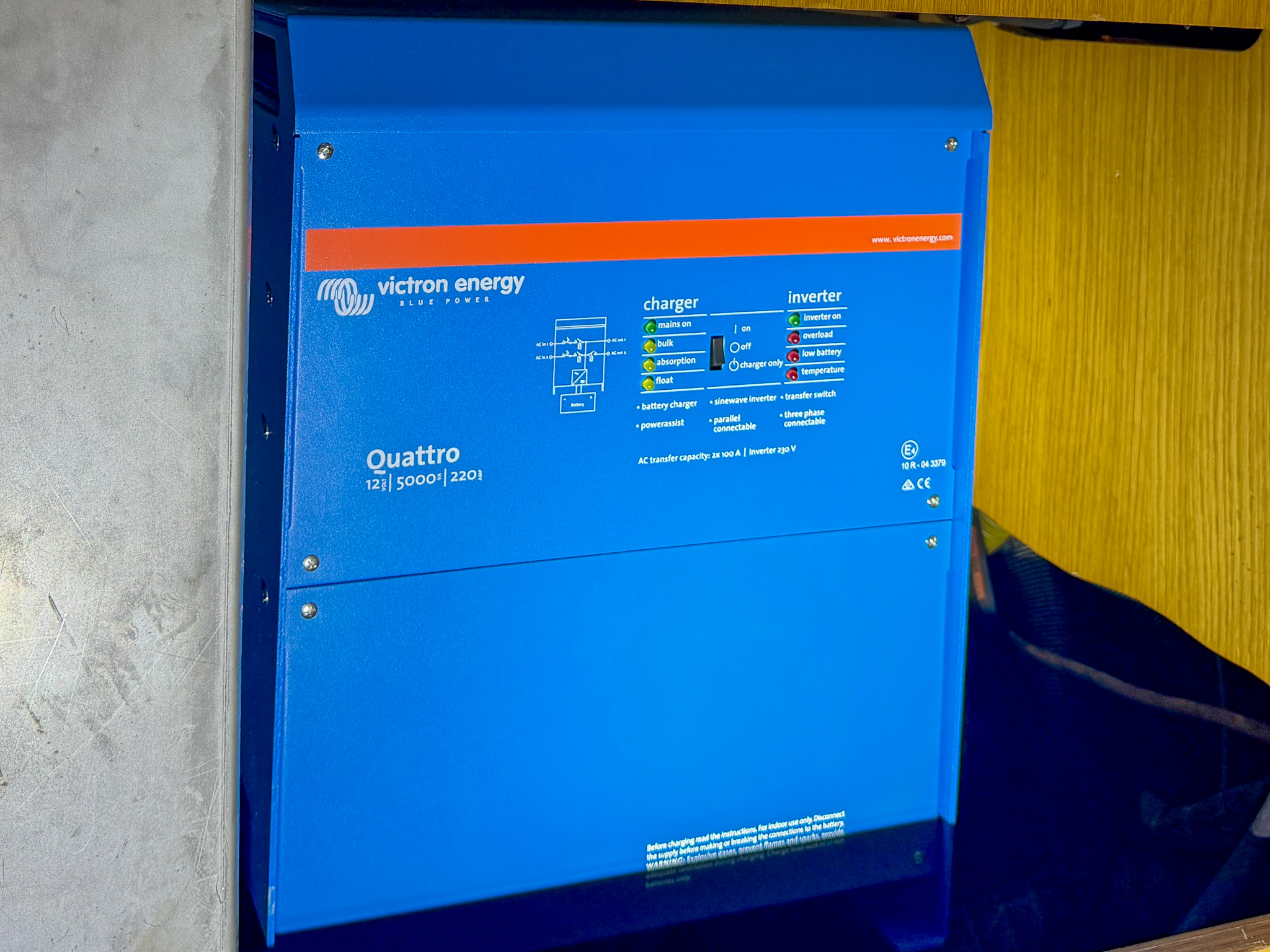

VICTRON QUATTRO charger/inverter 12V/5000W/220 AMP 2024
VICTRON Touch panel GX Touch 70 2024

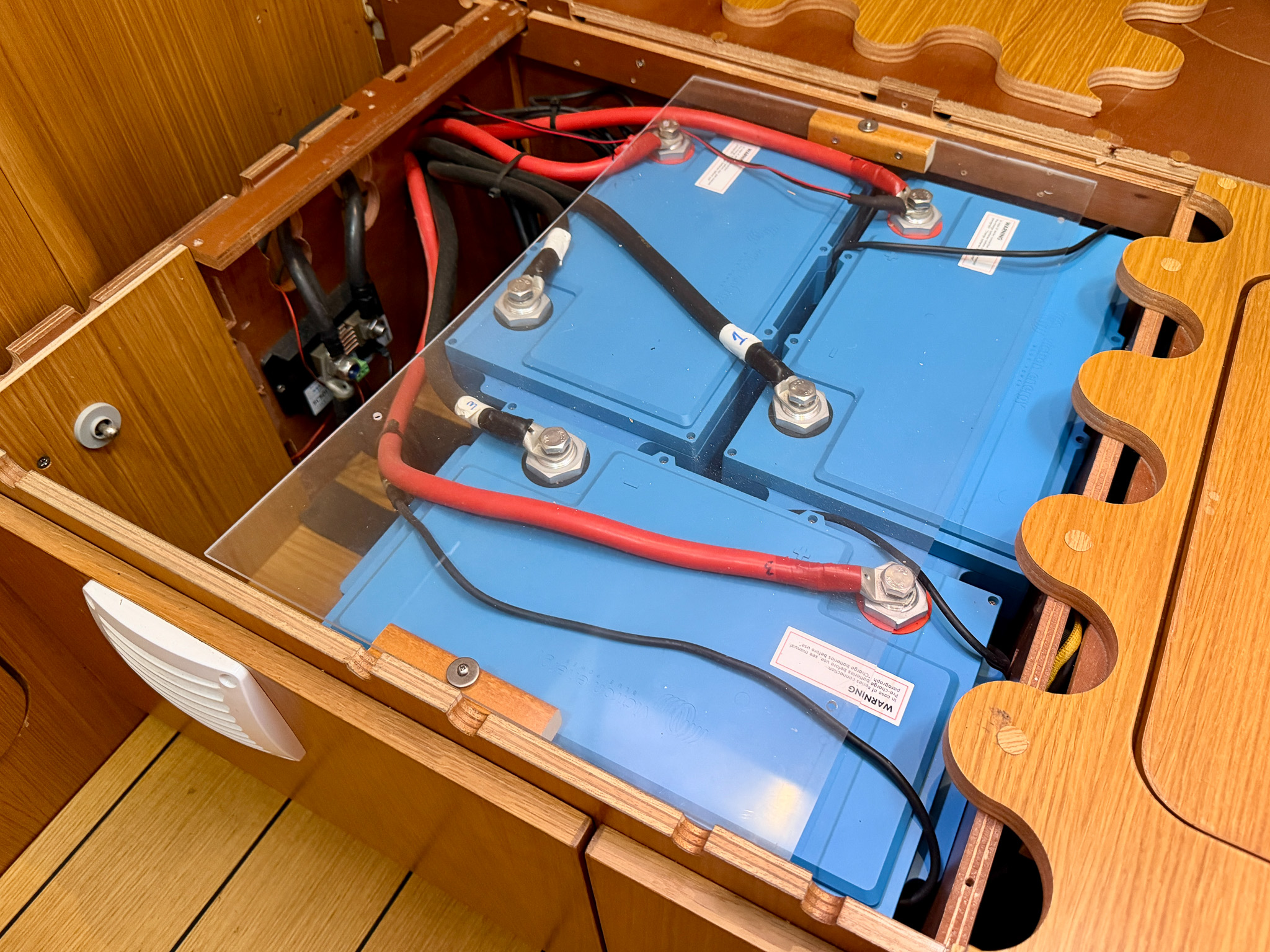

3 x 330Ah LITHIUM Battery VICTRON LIFE PO4 Smart 12,8V, consumers 2024
1 x 75Ah AGM start battery, engine 2021, tested in 2024/2026
3 x Tough+ 82W Carbon solar panels on biminitop, new 01/2025

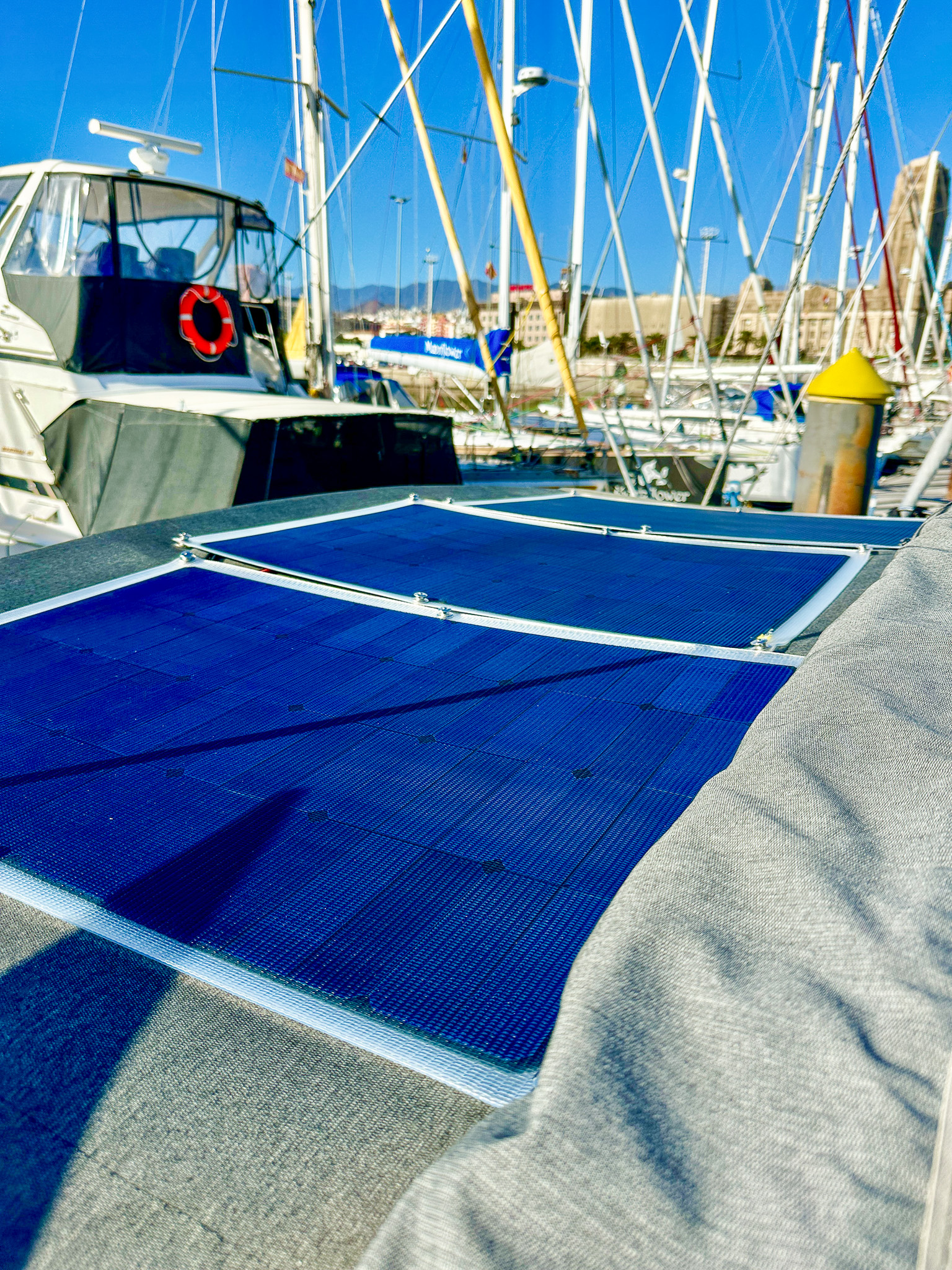

2 x 100W Solar Panels Flexible, quick fitting on deck, new 01/2026

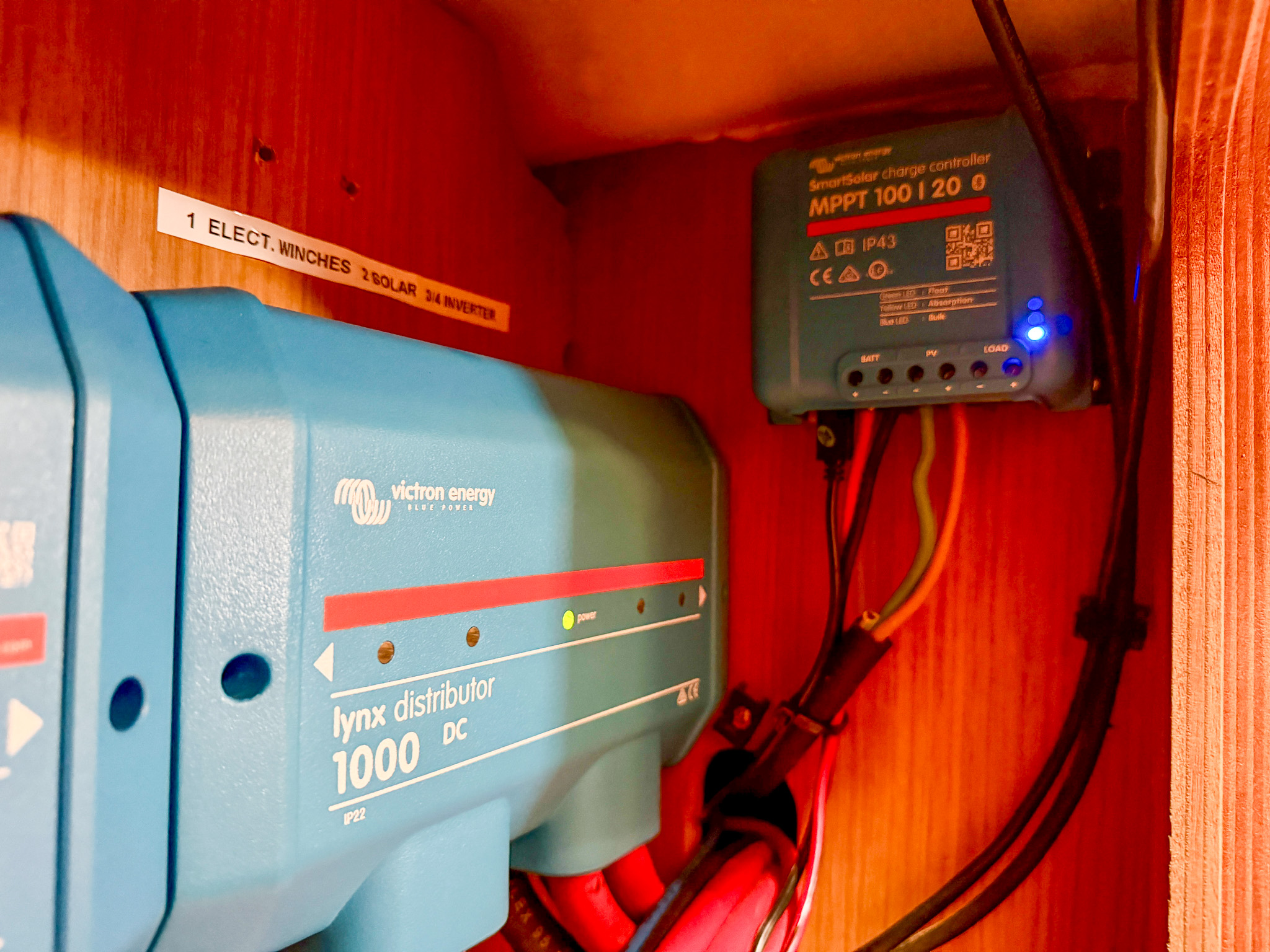

VICTRON Smart Solar MPPT 100/20 regulator 2022

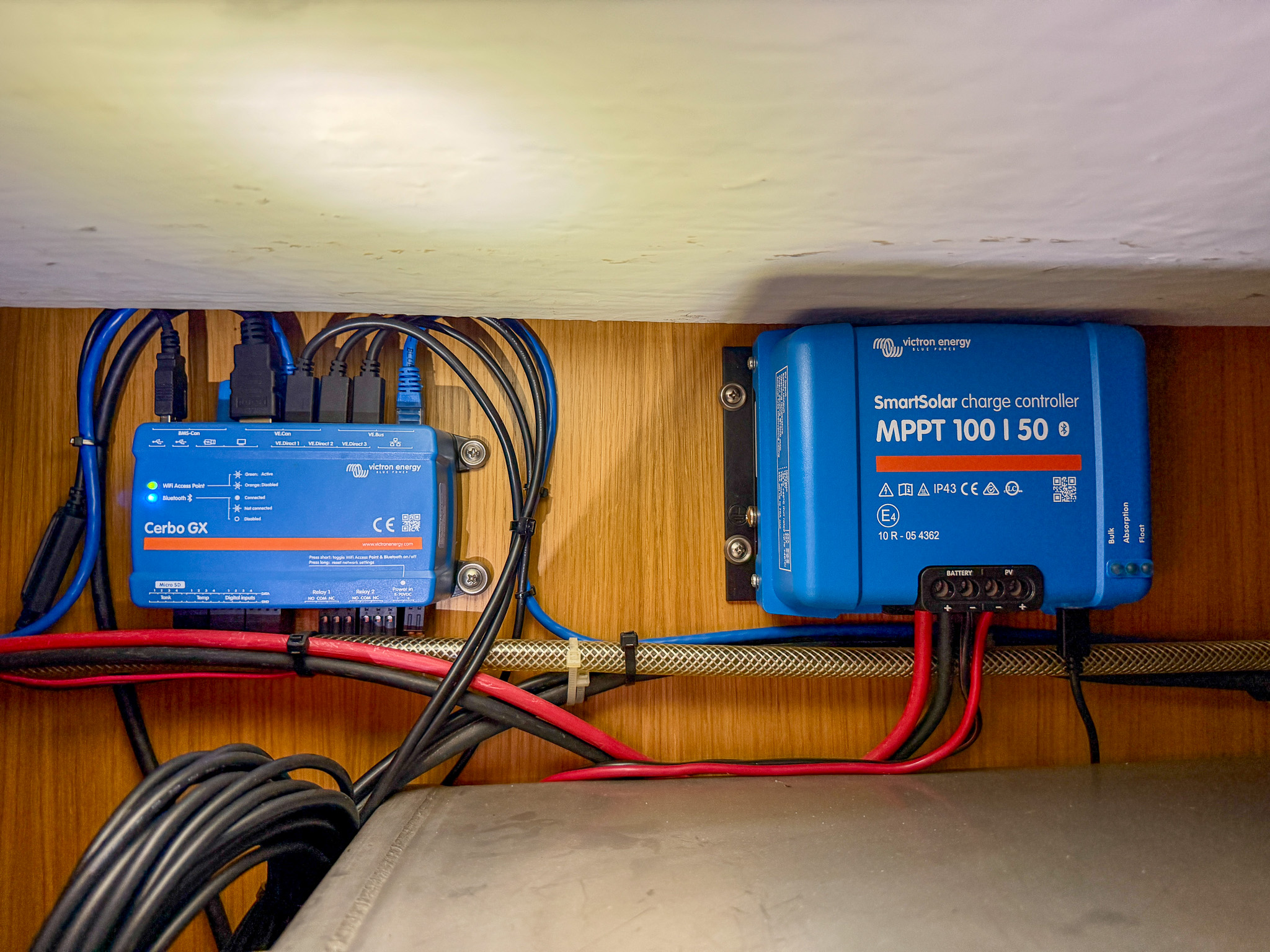

VICTRON Smart Solar MPPT 100/50 regulator 2024
2 x VICTRON Orion XS 12/12-50A DC-DC Battery Charger 2024

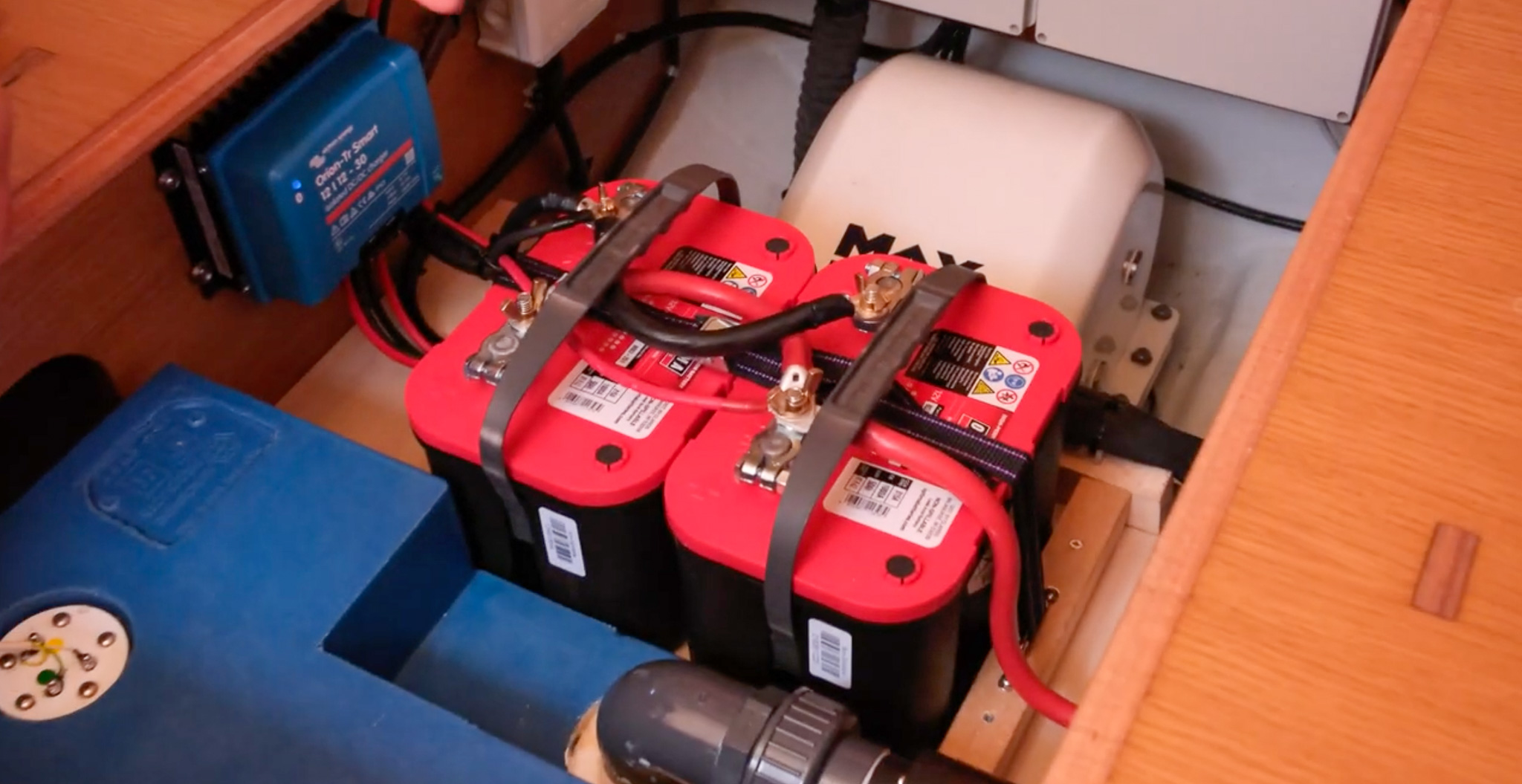

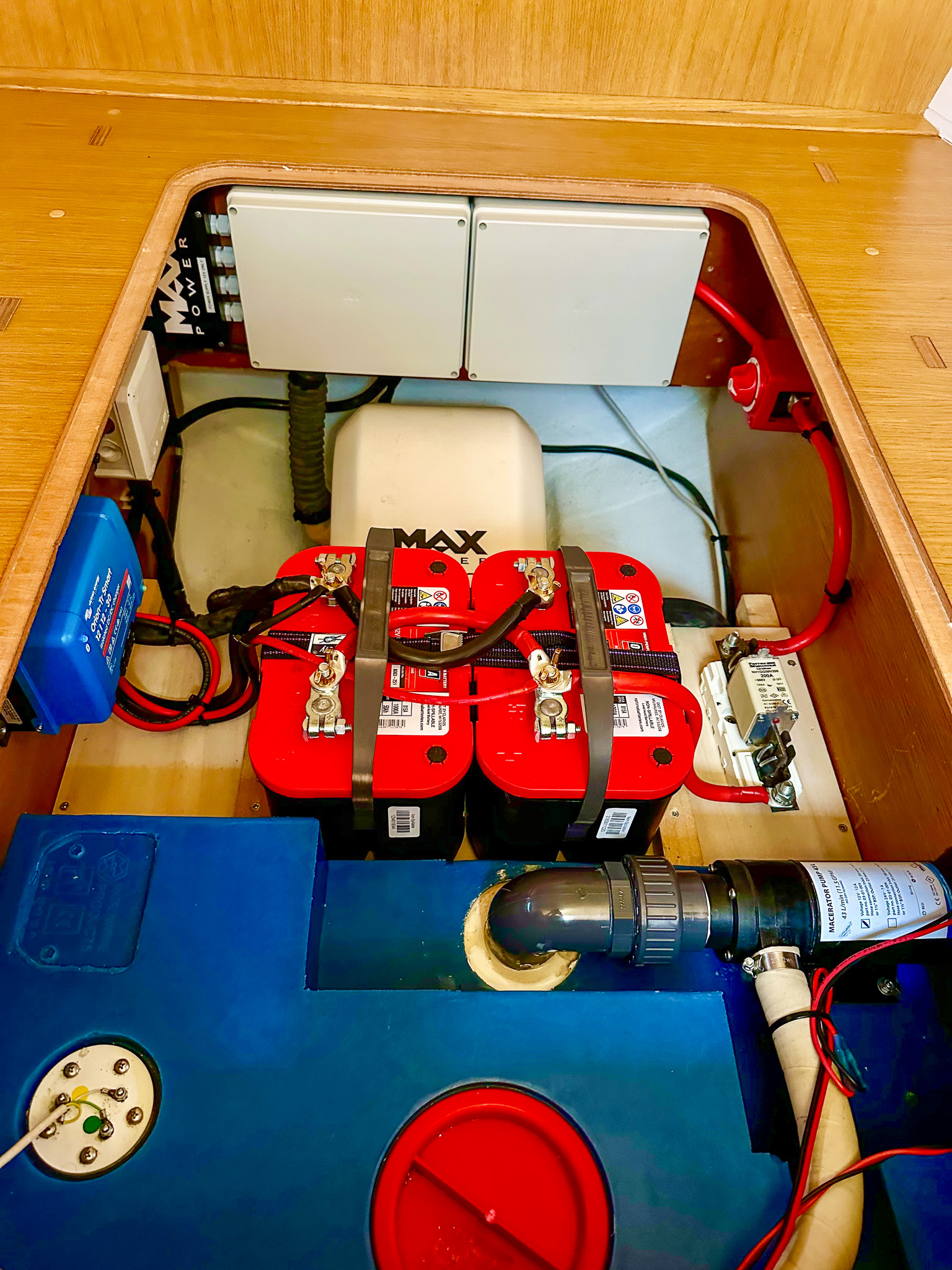

Bow thruster MAX POWER VIP 150, Retractable Thruster, 2x Optima RedTop RT C 4.2 12V 50Ah 815A AGM + Orion 100/30
2024, upgraded to a fully autonomous battery and charging system with new batteries
Backup: SIMARINE, Pico Battery monitor including 1 x master shunt and 2 x consumer shunts for individual monitoring of fridges, freezer, watermaker, solarpanels

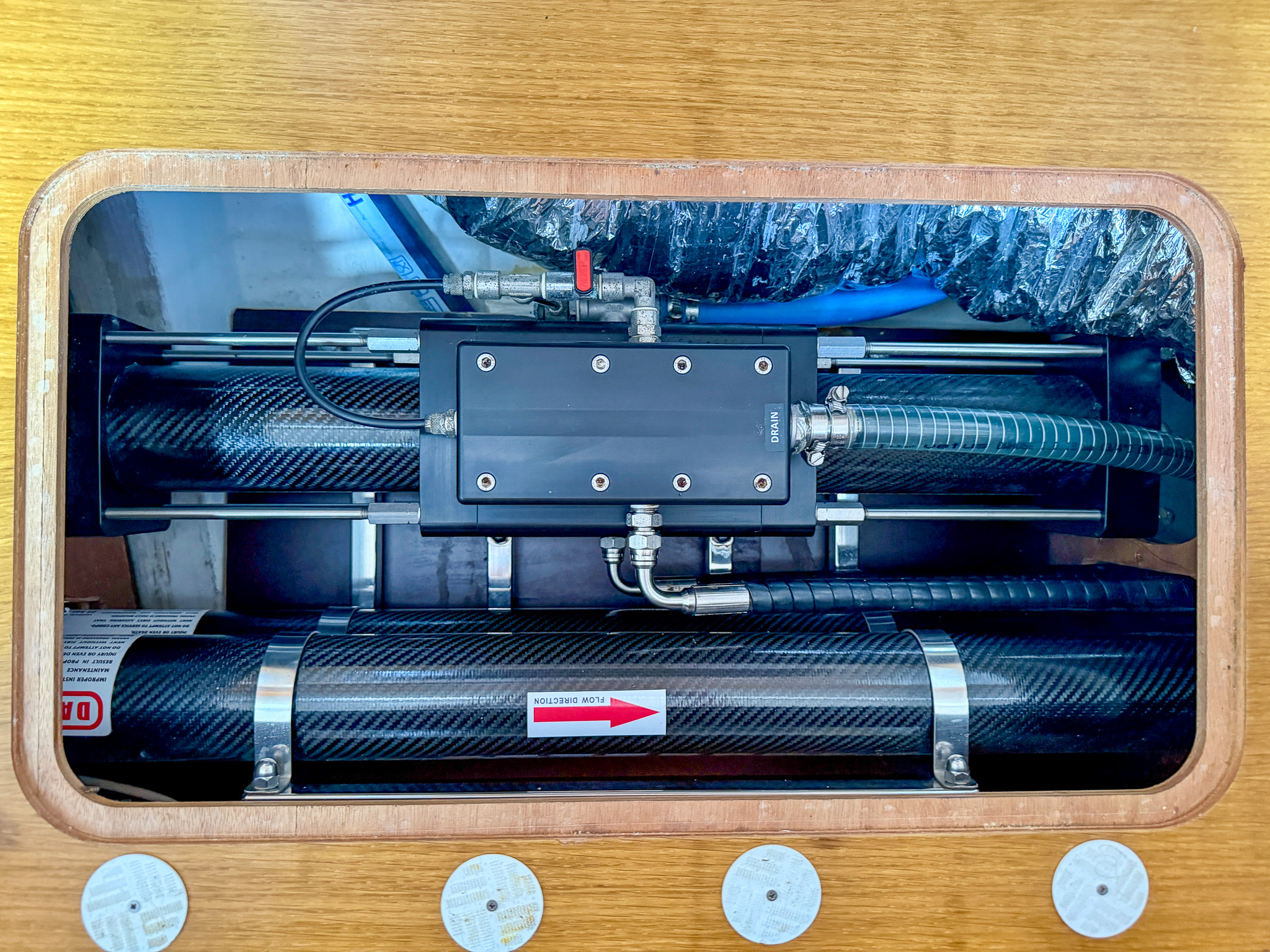

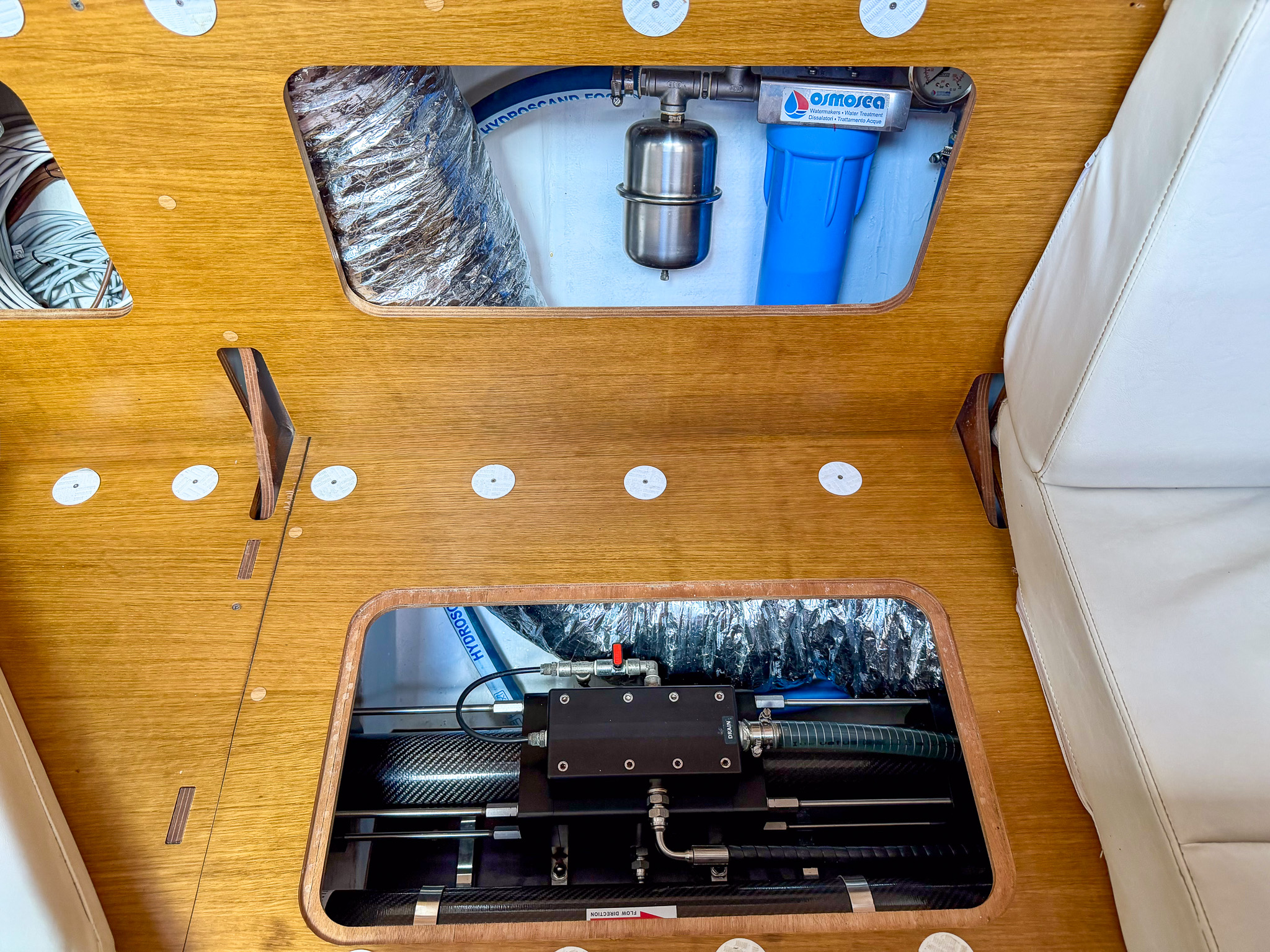

Watermaker OSMOSEA NEW12 ES 80, 80L/hour
2022 (2x/year maintained, properly stored)

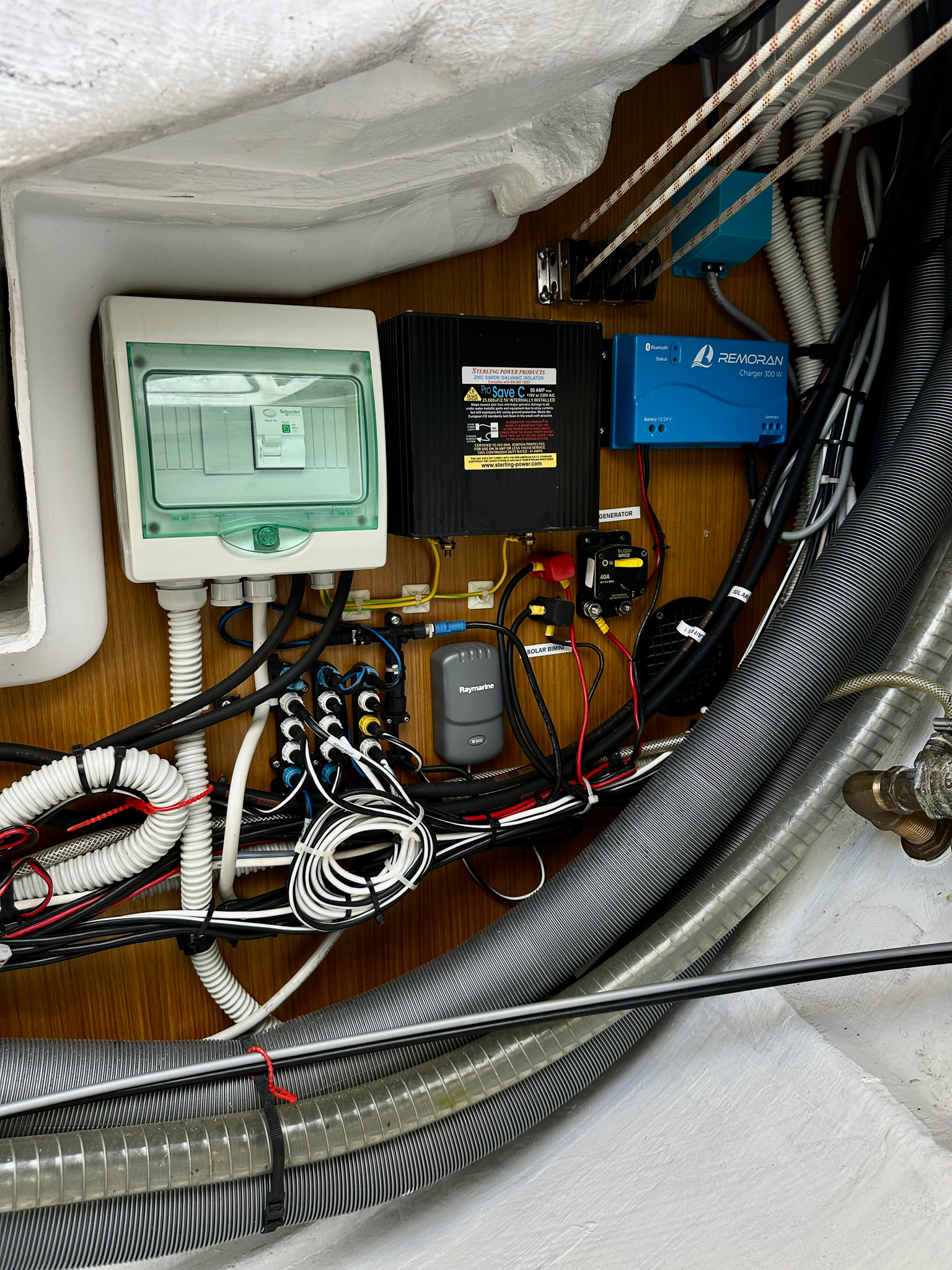

Hydrogenerator REMORAN Wave 3, 300w. 2 x transom mounted slides + extra turbine 2021

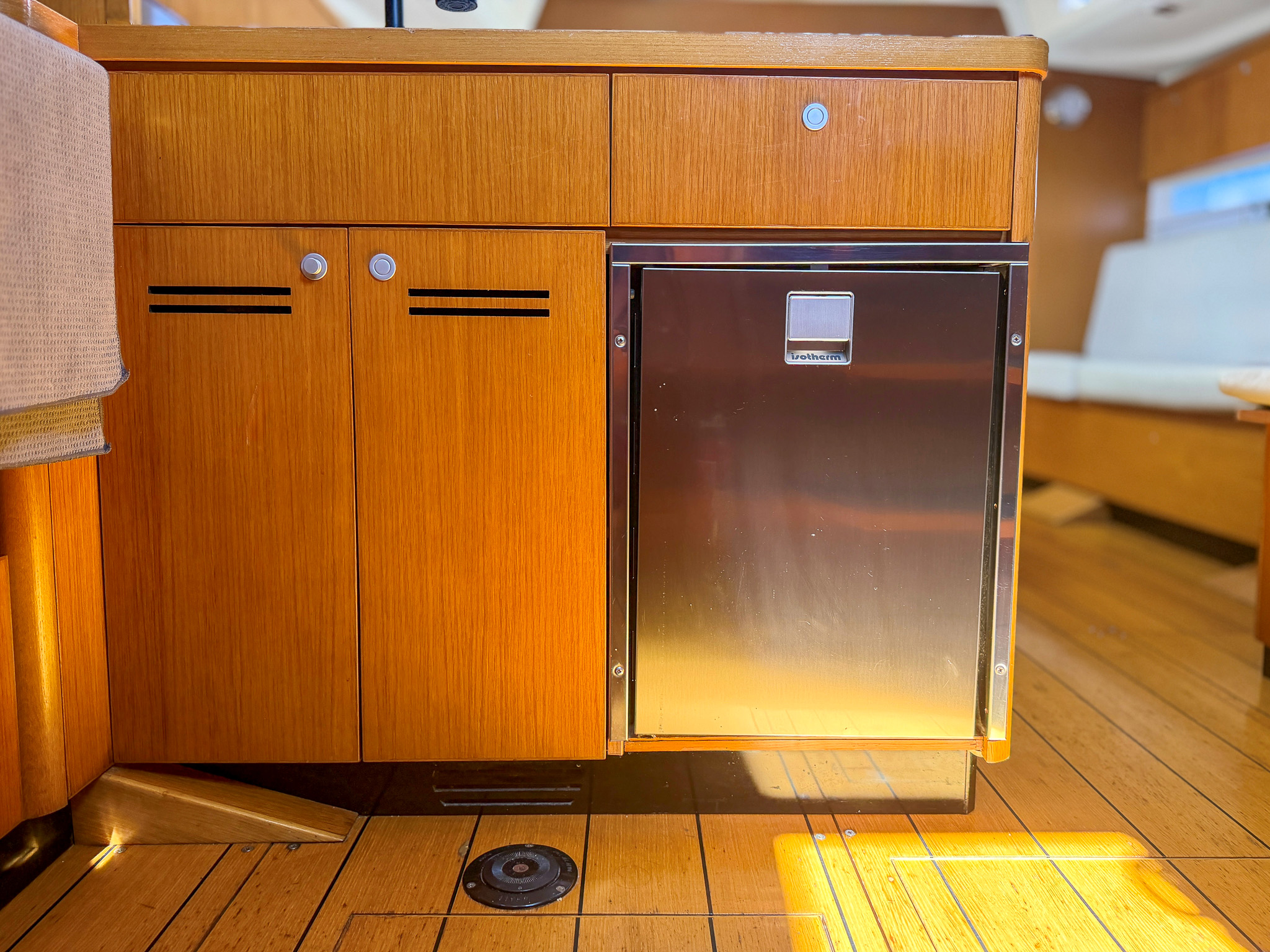

ISOTHERM fridge CR49, 49L with s/s door. Second fridge 2022
ISOTHERM TB31, portable fridge/freezer 2022
Stereo Fusion RA70 NMEA 2000 connected, 2pcs Fusion 5,25” speakers in saloon + 2pcs Fusion 4” speakers in cockpit and 2 additional 6” Fusion Signature speakers in cockpit, incl. Fusion MS-AM702 amplifier 2021/2022
Top mounted LED tricolor + anchor light, Mantagua 2022
Samsung 32” TV, bulk head mounted incl. Glomex mast mounted antenna
4 x USB outlets at navigation table 2022
USB sockets in all cabins 2022
12V socket in cockpit + navigation table
220V sockets in cabins, galley, navigation table (shore power or inverter)

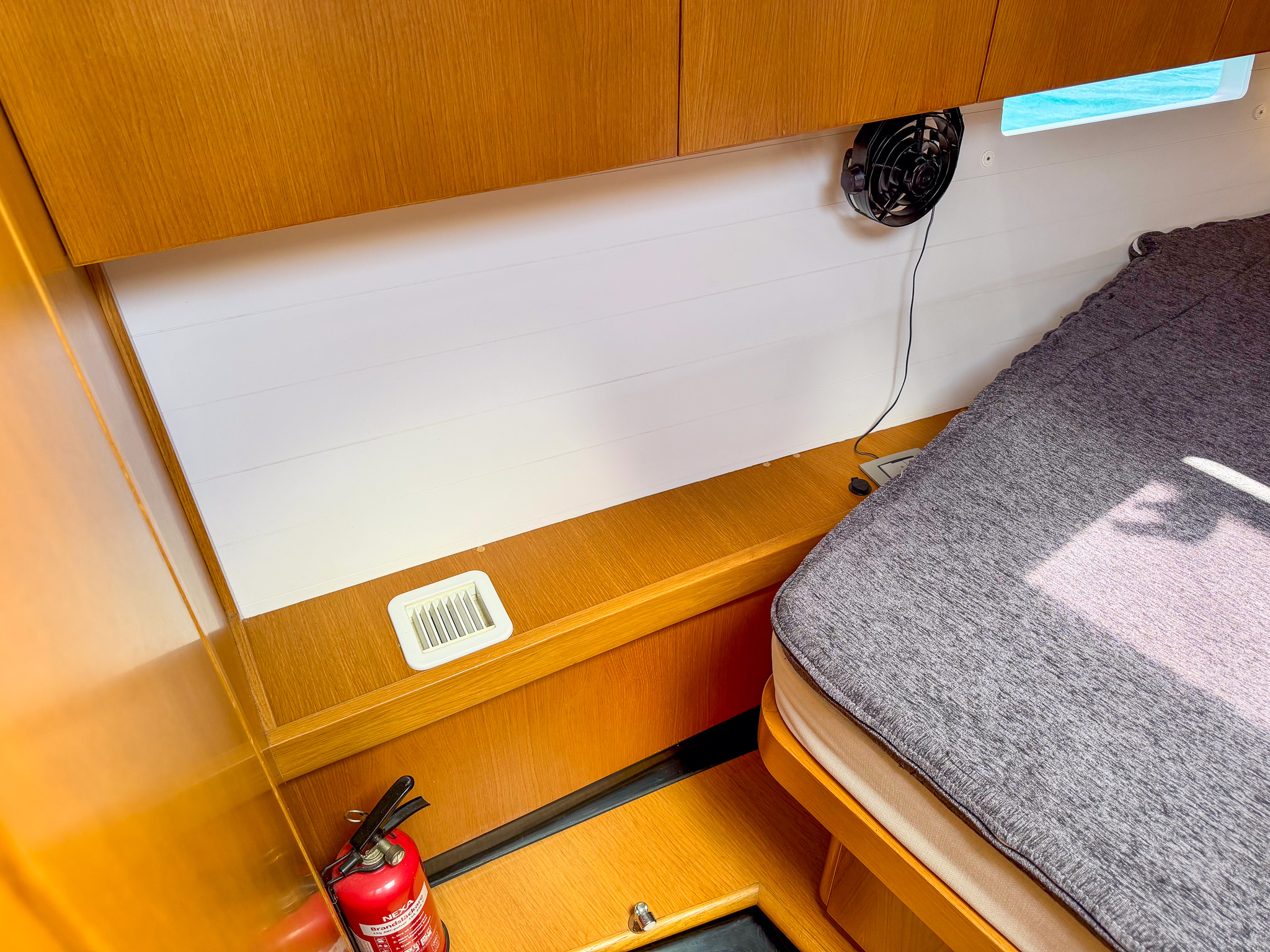

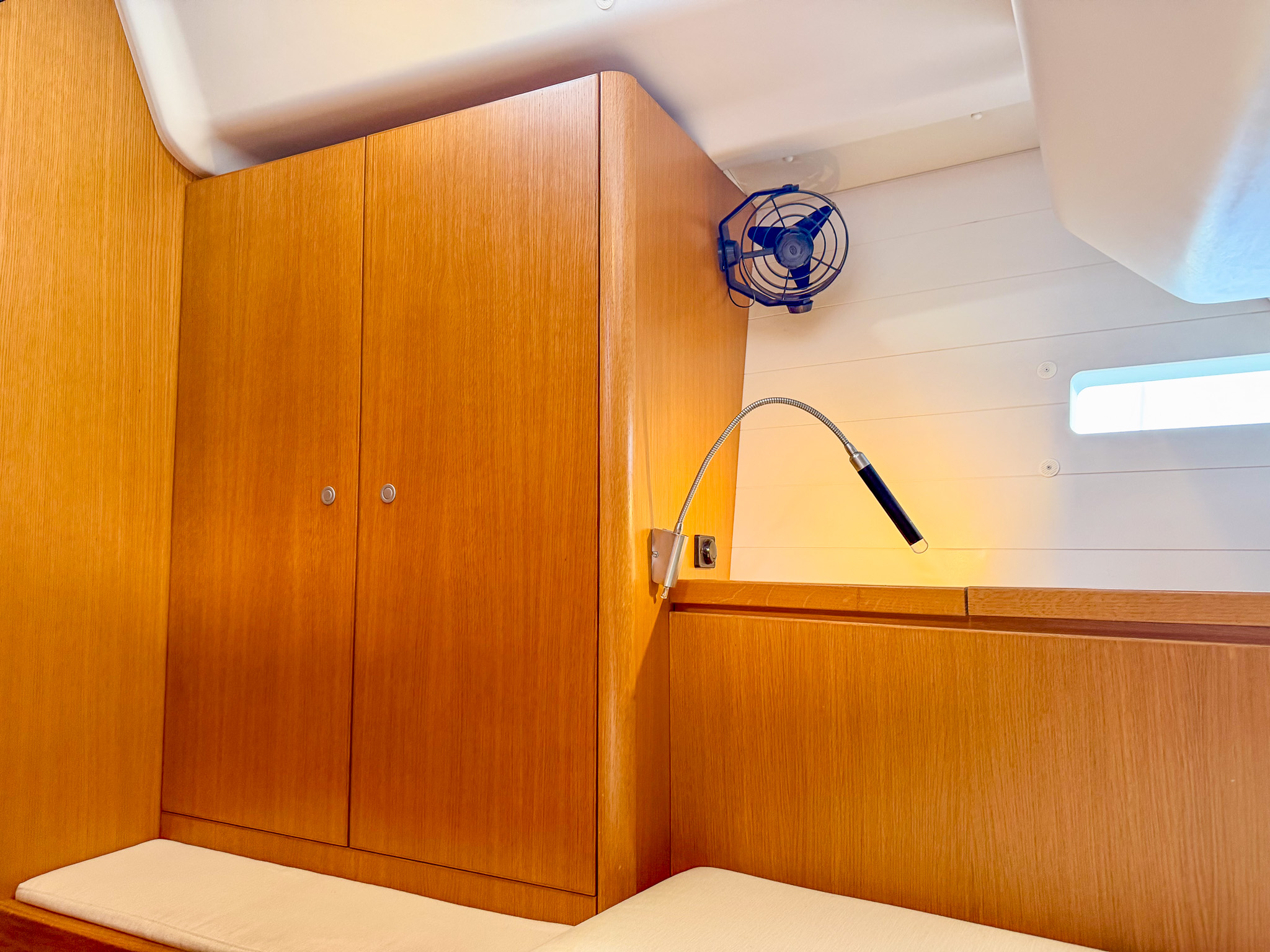

Hella air fans in all cabins 2022
All interior lightning upgraded to LED 2022
LED floor lights 12/2023

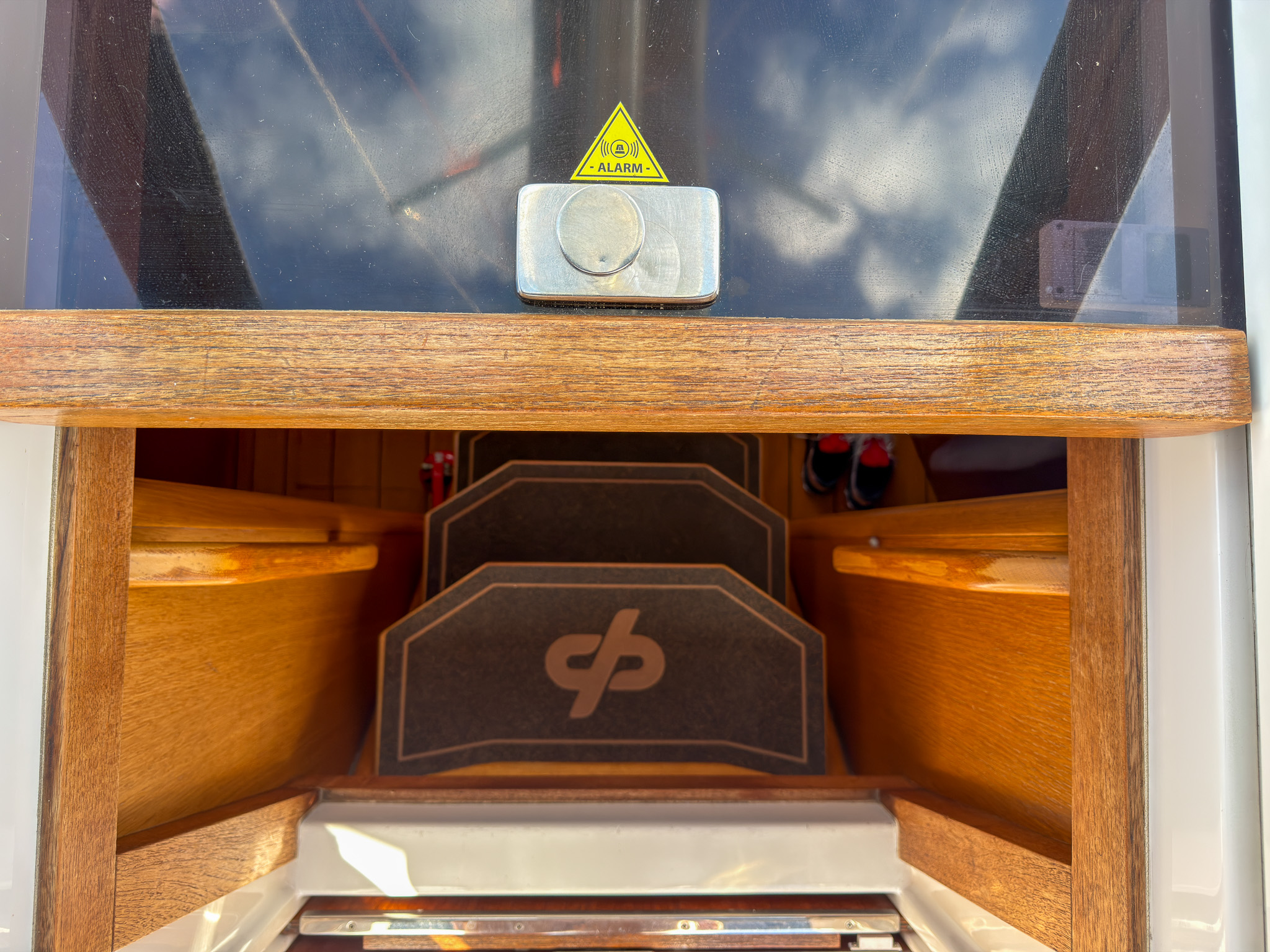

Alarm System for one hatch and the companionway 12/2023
3 x red/white dimmable LED in galley 2022

Kommunikation
Garmin VHF 215 + dual station GHS 10 mounted in cockpit + external speaker 2021
VHF Low-loss cable in rig + mast mounted VHF antenna 2022
Vester AIS/FM/VHF splitter 2022
ICOM IC-M94 hand held VHF incl. DSC and GPS
GARMIN AIS 800 2021
EPIRP Mc Murdo SmartFind G5 V2 Plus, new battery 2023
BackUp: TELETONIKA RUT955 Router (3G, 4G LTE) incl. mast mounted antenna with super low loss cable YE50 2022
STARLINK RV, high speed internet, antenna mounted on pushpit 2023
Iridium 9555 Sat phone incl. external antenna. Data connected via RedPort Optimizer 2022, new extra battery 2025

Komfort
Lazy Bag incl. Lazy Jack, One Sails 2022, Sandatex fabrics, Cool Grey 5380

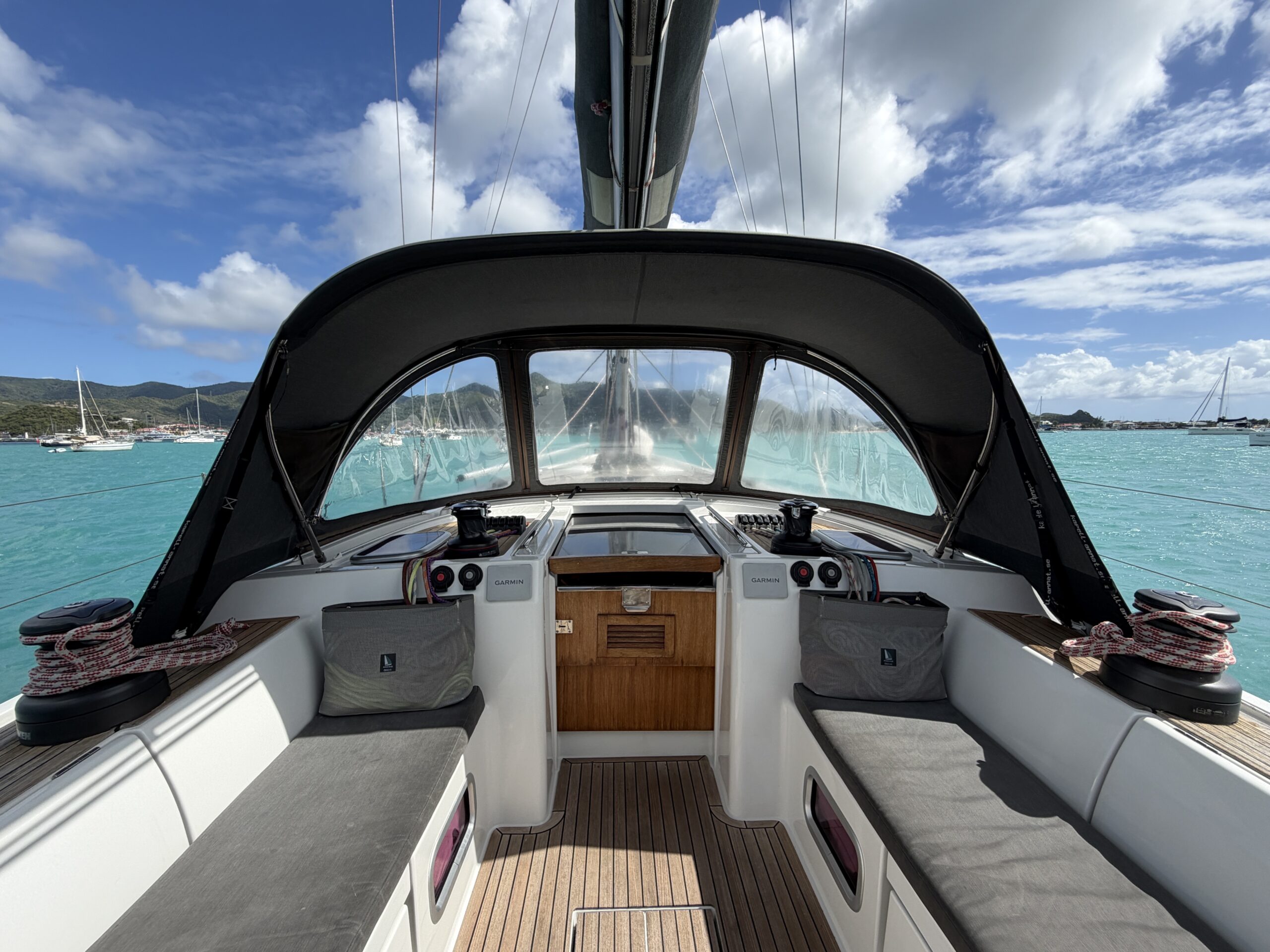

Sprayhood, s/s, long model 2022, Sandatex fabrics, Cool Grey 5380
Bimini and Bimini roof 2022, Sandatex fabrics, Cool Grey 5380
Bimini sides and back covers in mesh net 2022, Sandatex fabrics, Cool Grey 5380
Steering wheel covers 2022, Sandatex fabrics, Cool Grey 5380
Covers for dinghy engine & cockpit Plotter 2022, Sandatex fabrics, Cool Grey 5380
Cockpit cushions + sundeck cushion 2022, Sandatex fabrics, Cool Grey 5380
2x Cockpit pillows 2026, Grey
2x Cockpit bags, mounted on railing 2026, Grey

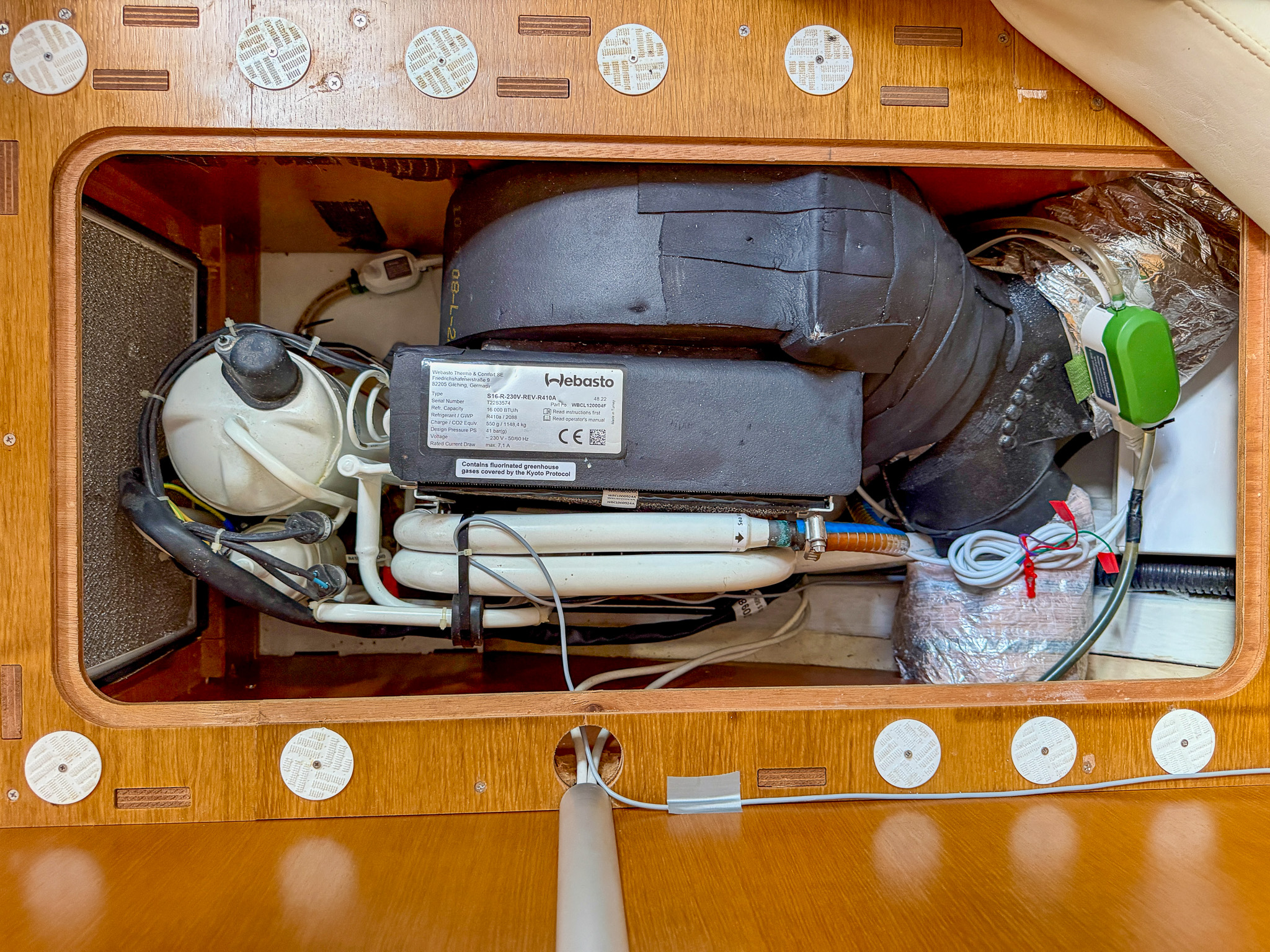

A/C – WEBASTO Blue Cool S16 with outlet in front cabin and saloon
06/2023 new installation of a Webasto Blue Cool S16
70L black water tank for front head + macurator pump 2022
40L black water tank for front head + macurator pump 2021

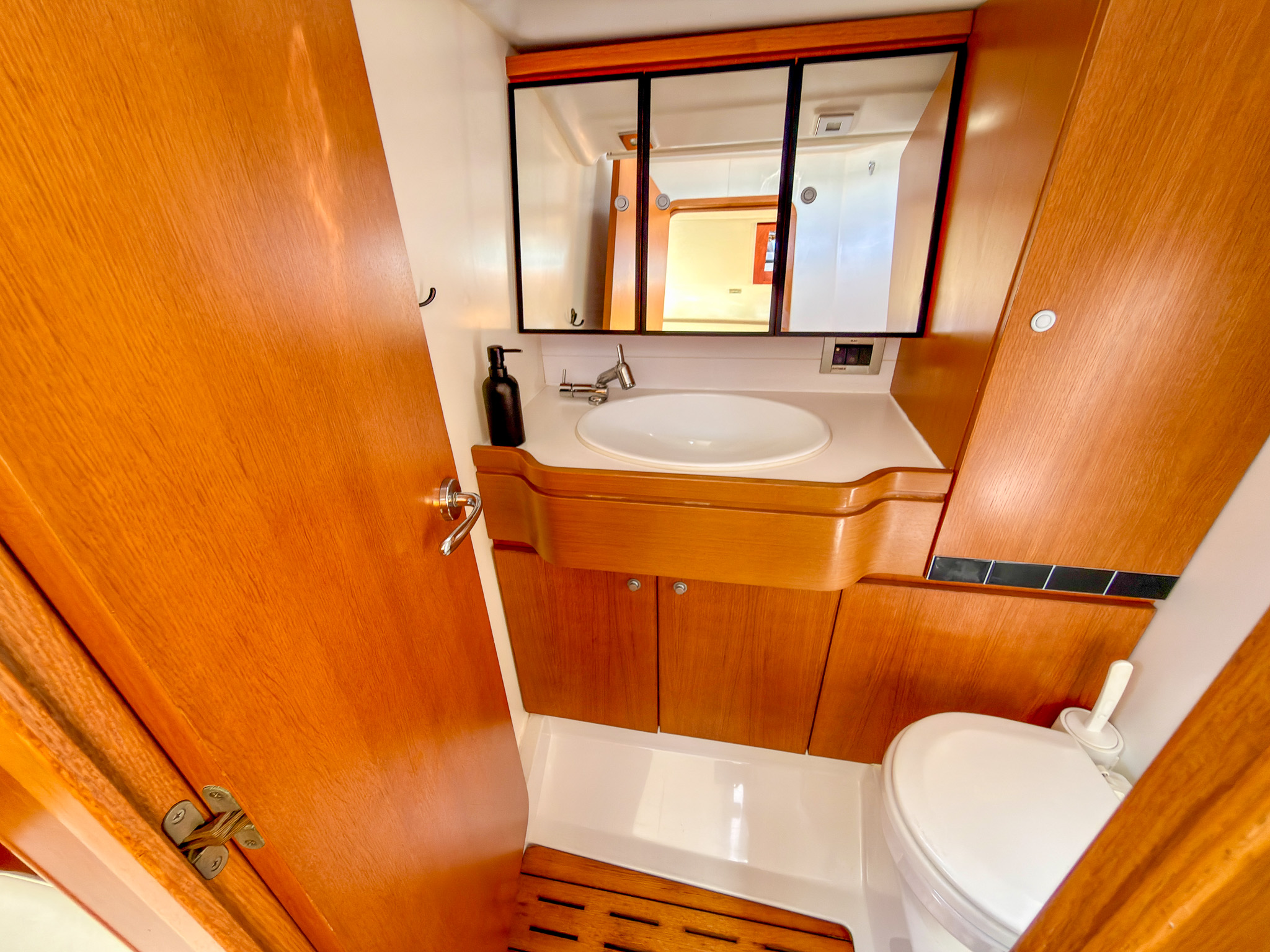

Saniflo Electrical toilet, front head 2022, serviced 2025

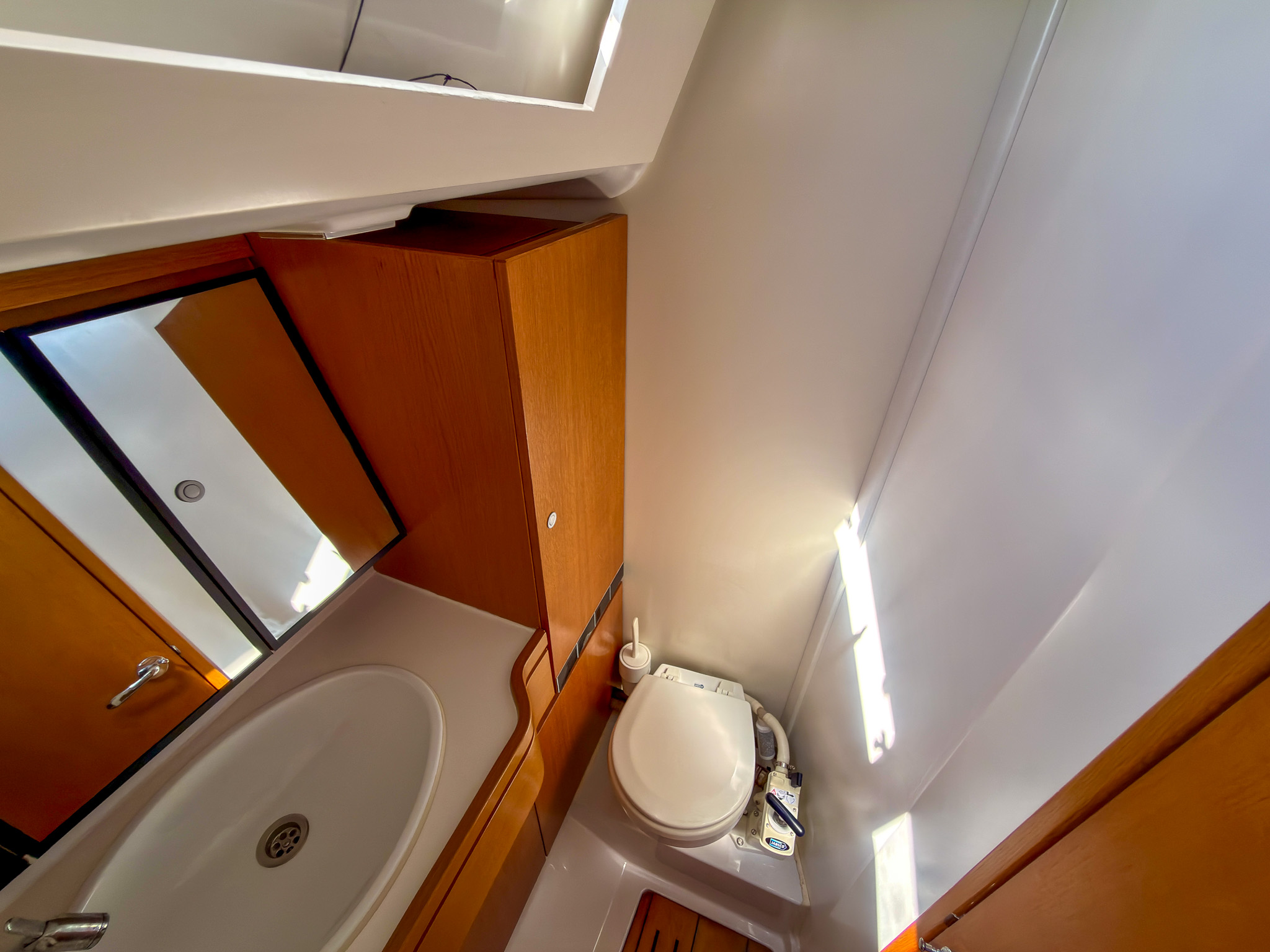

Jabsco manual flush toilet for aft head 2021, new hoses 2024
JABSCO, Deck mounted wash down pump incl. 15m Cobra hose incl. quick connect port

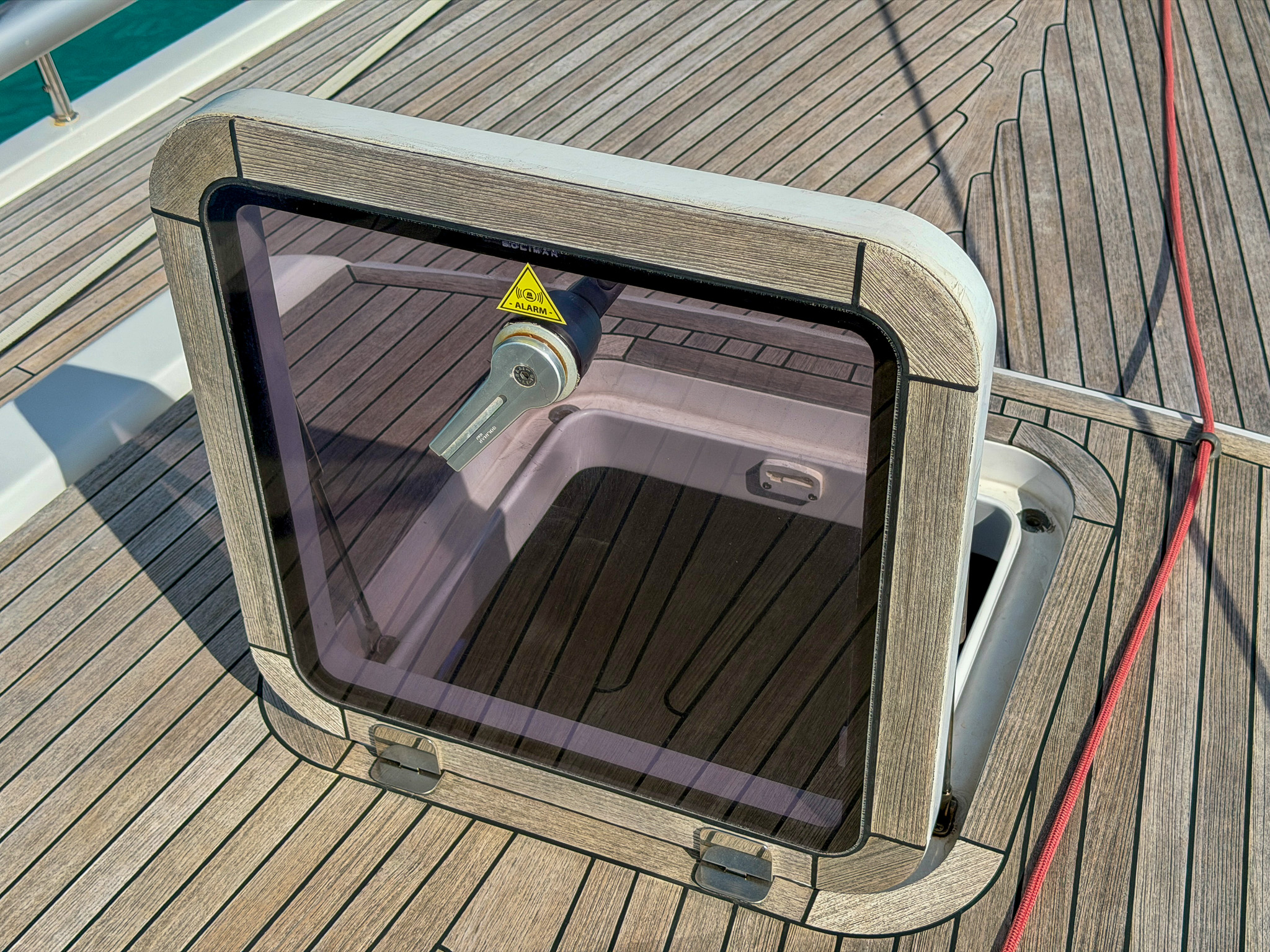

OCEANAIR blinders for hatches

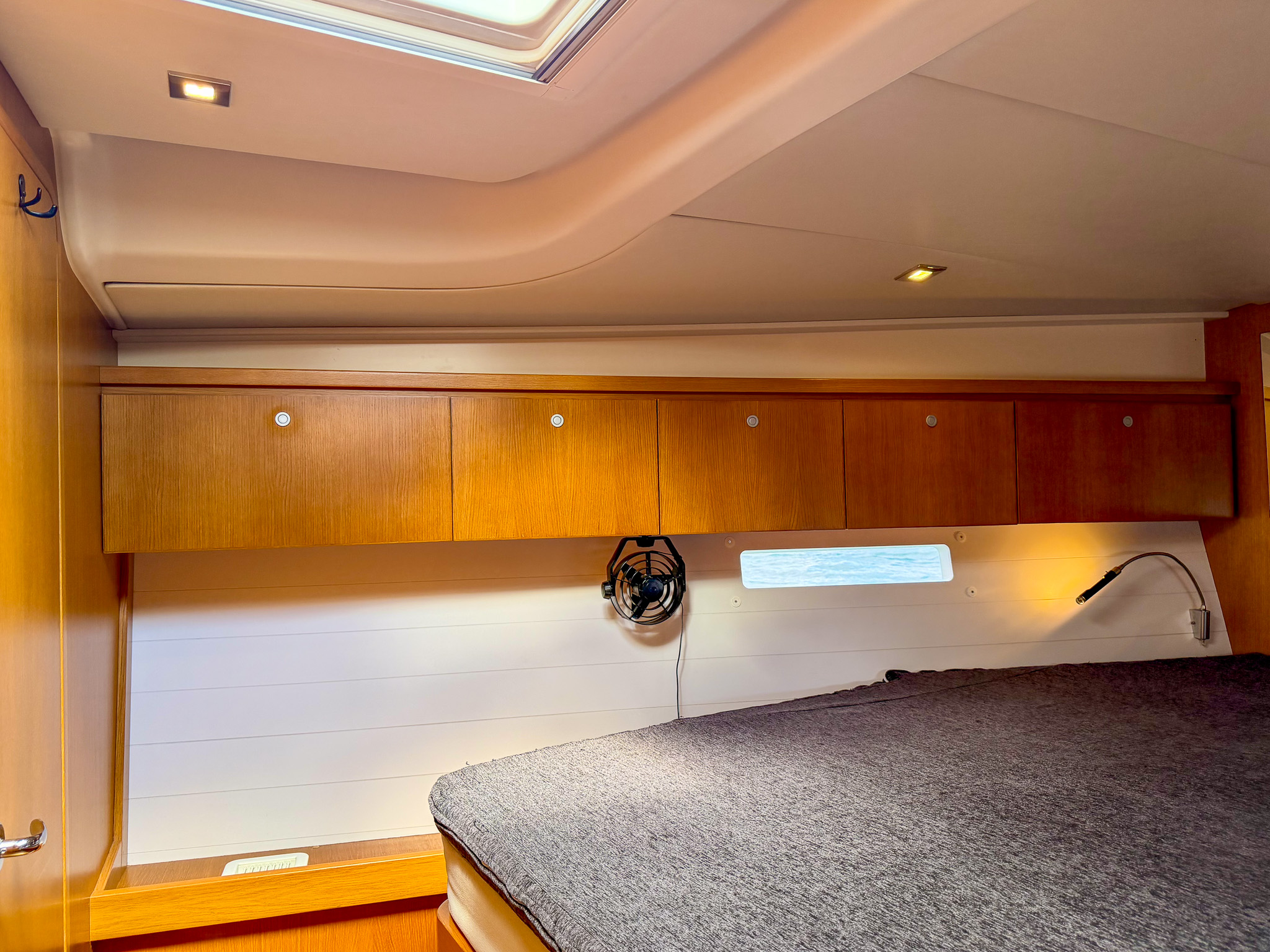

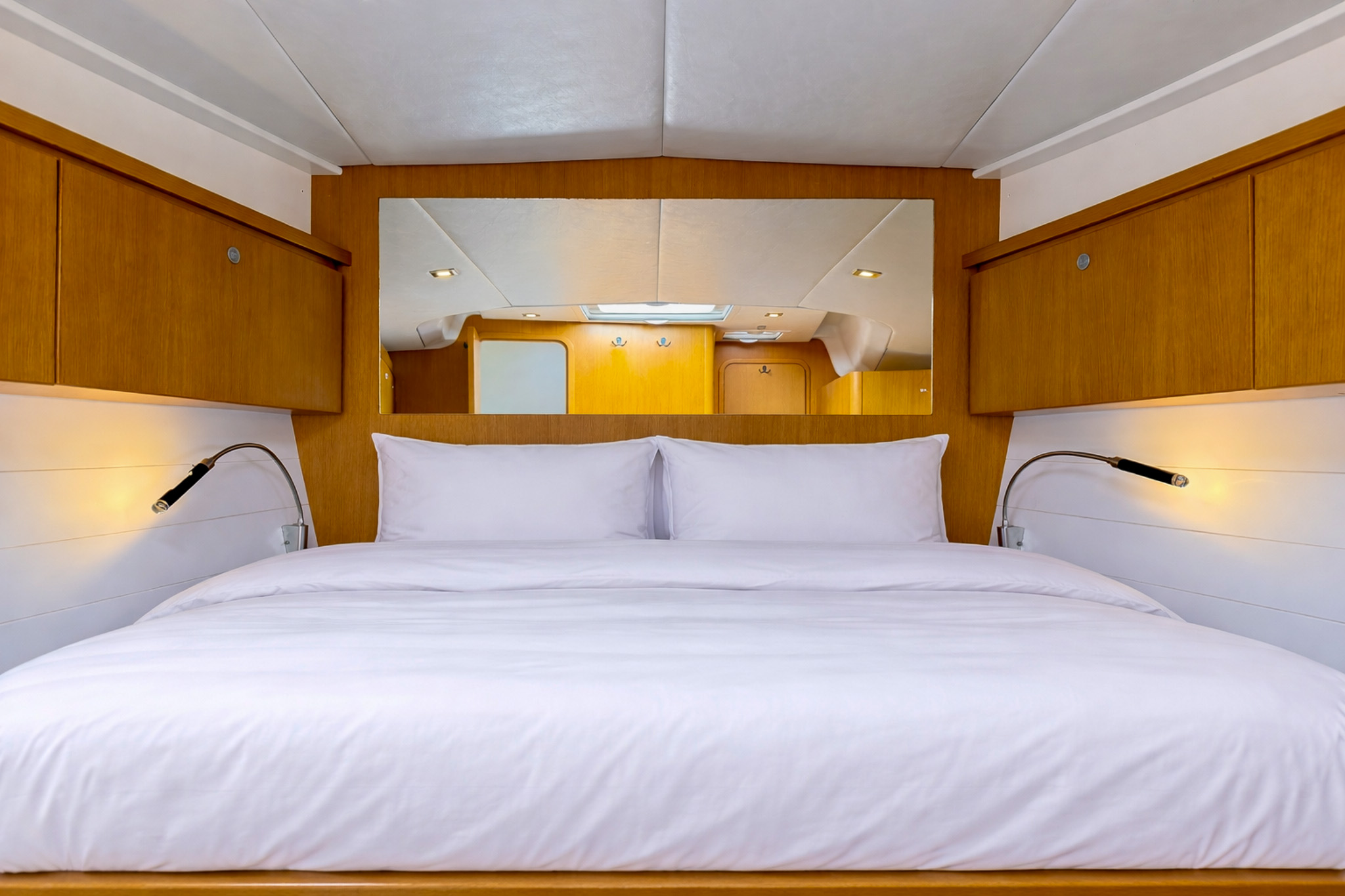

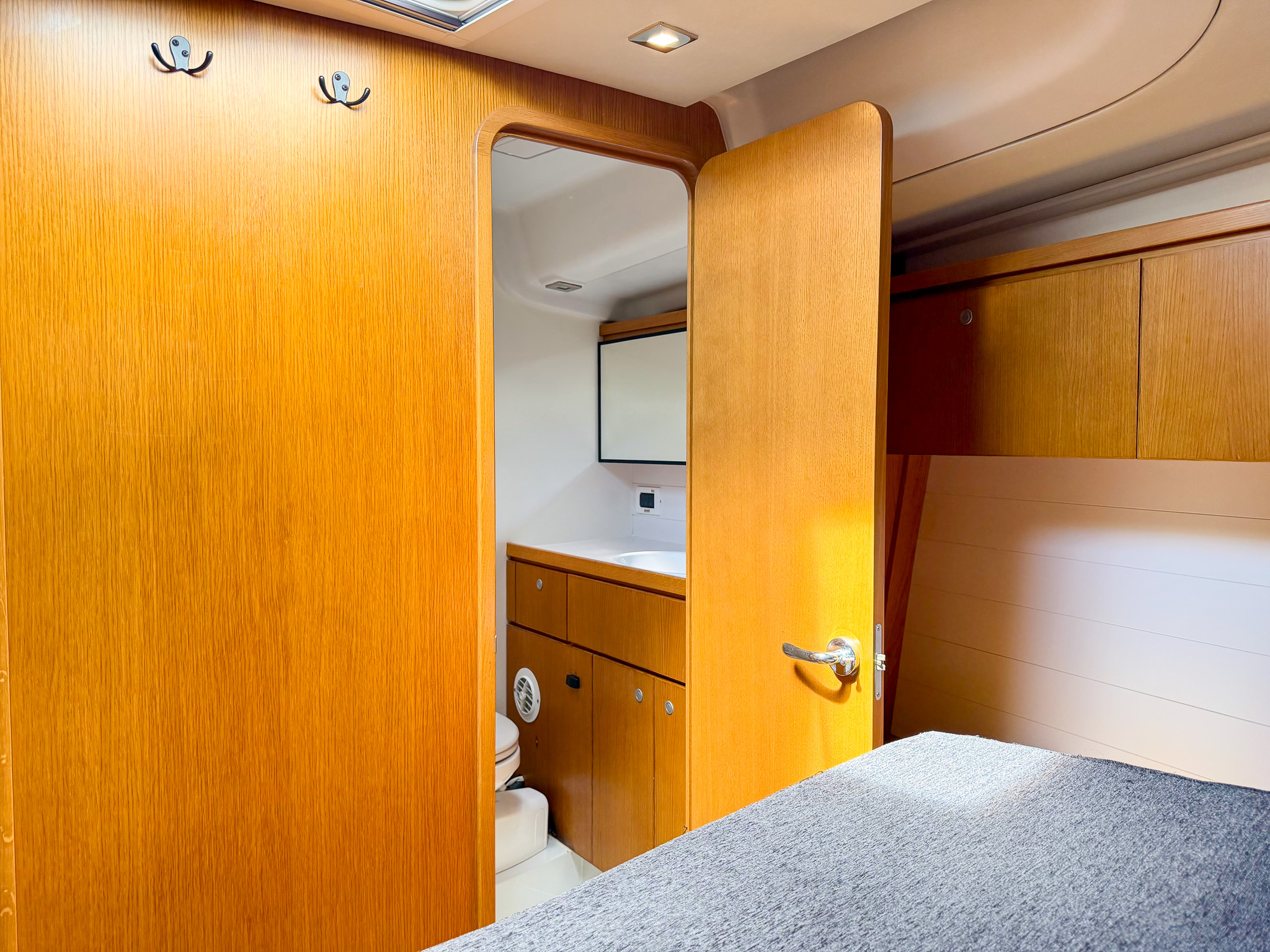

Pocket spring mattress + bed mattress, front cabin 2022, new topper 2026

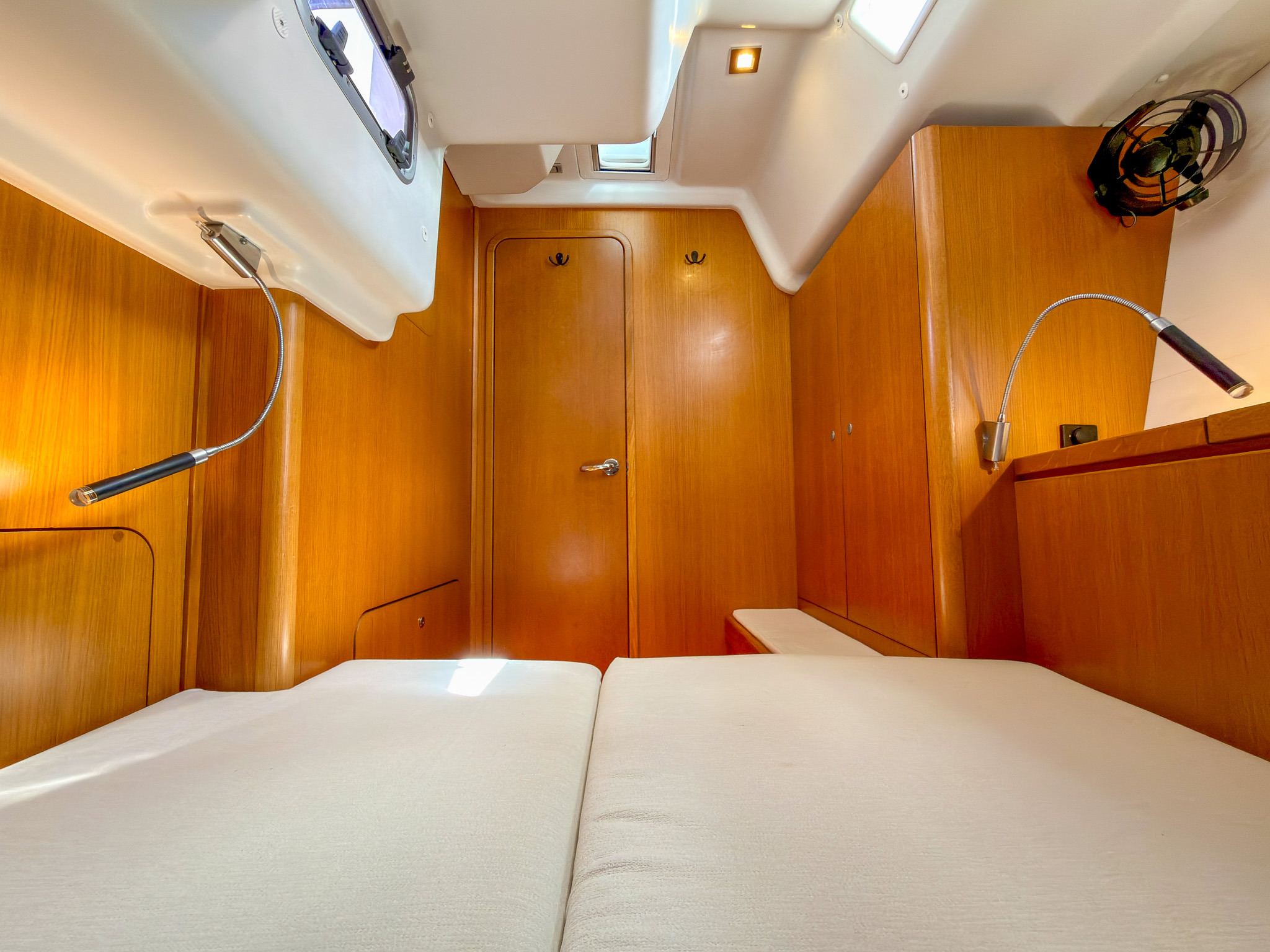

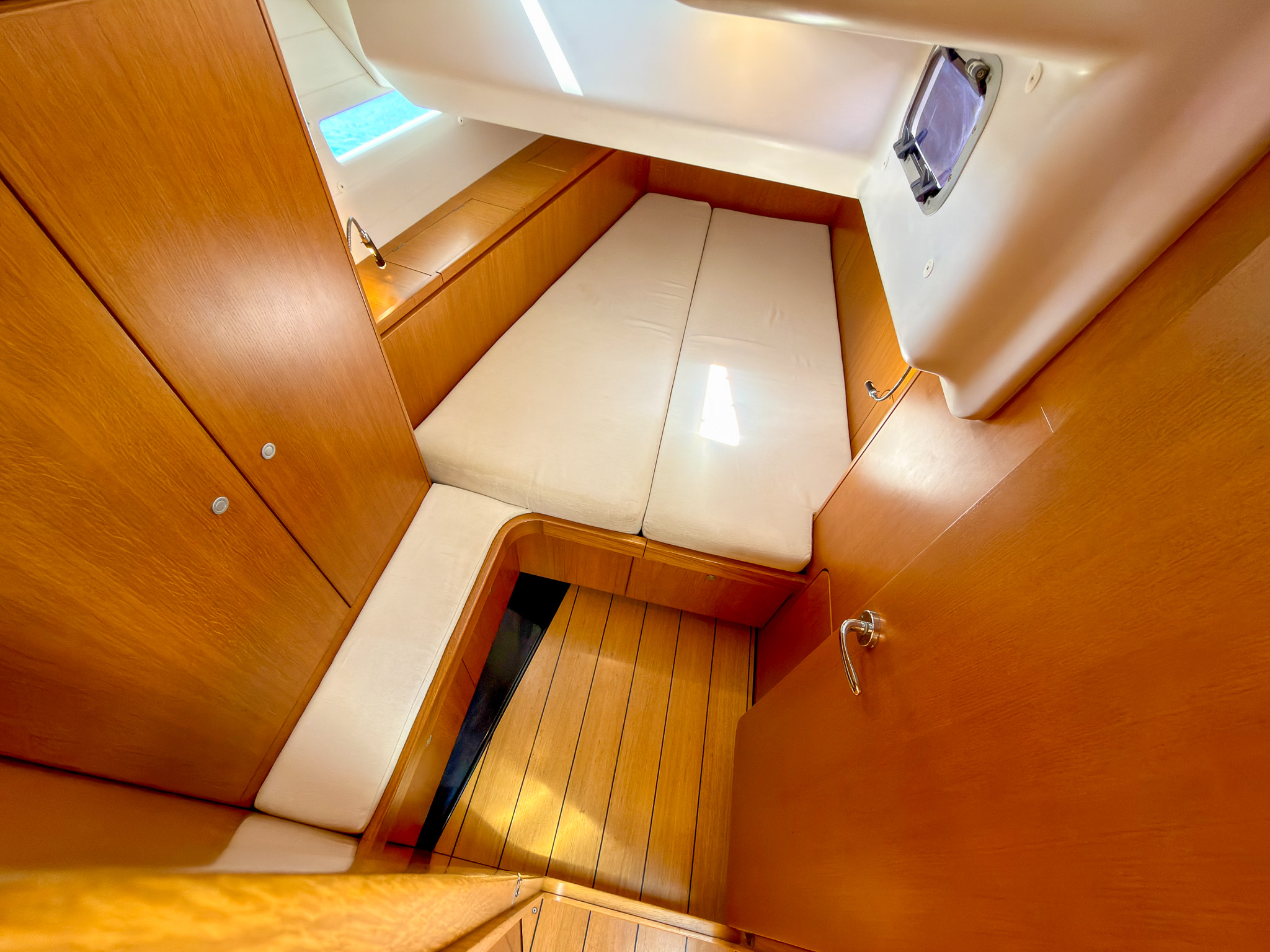

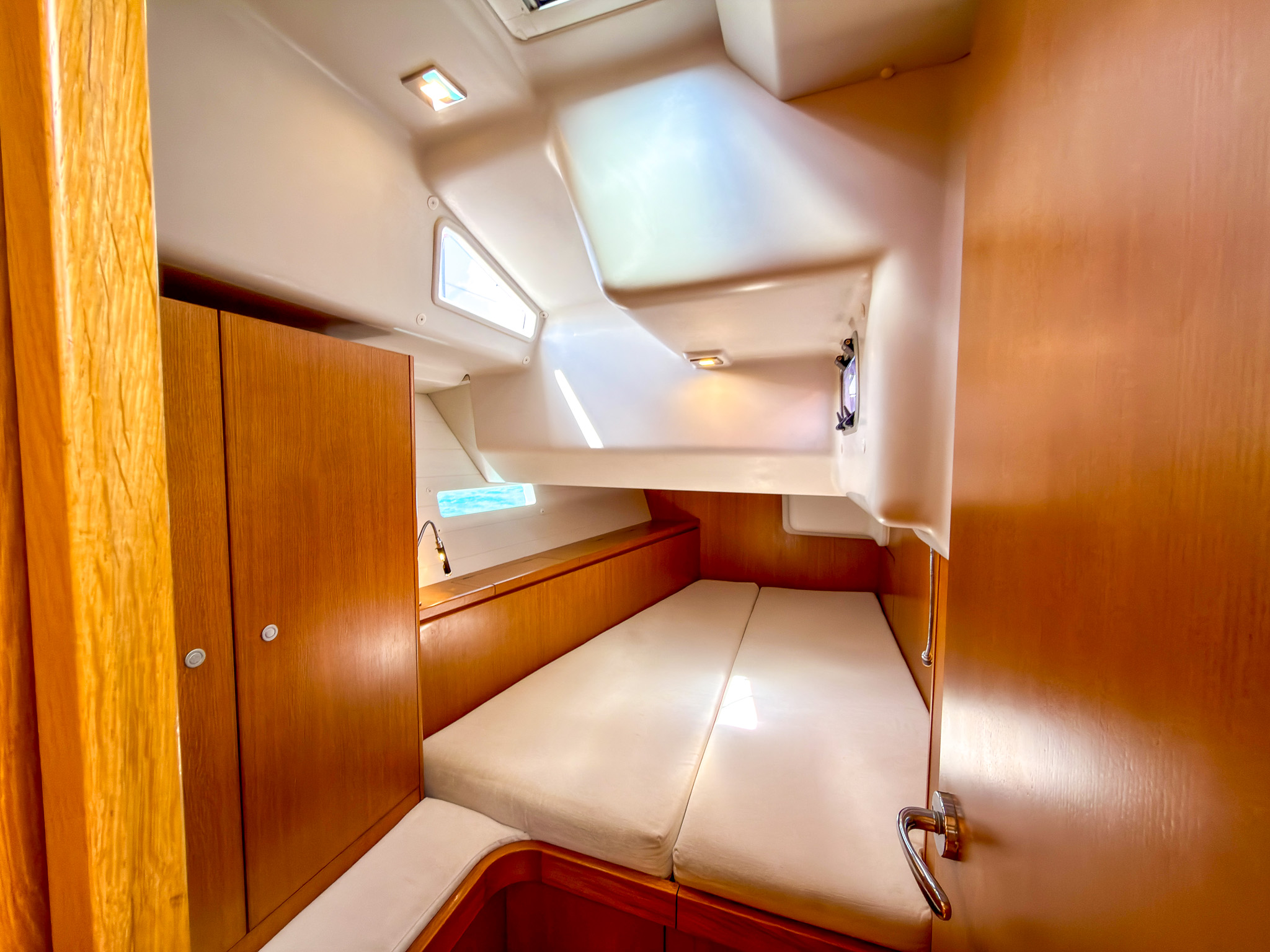

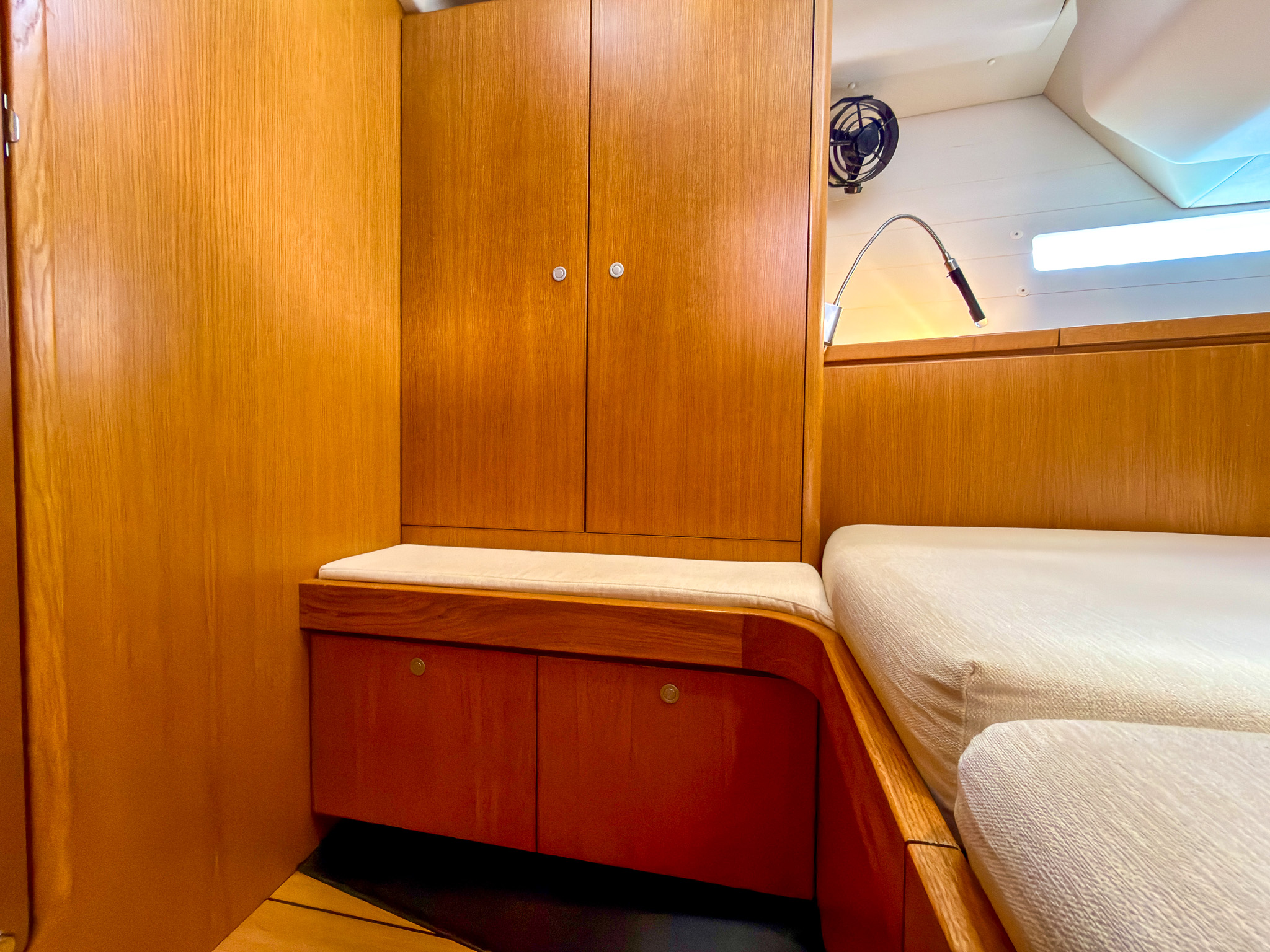

Bed mattresses, aft cabins 2022

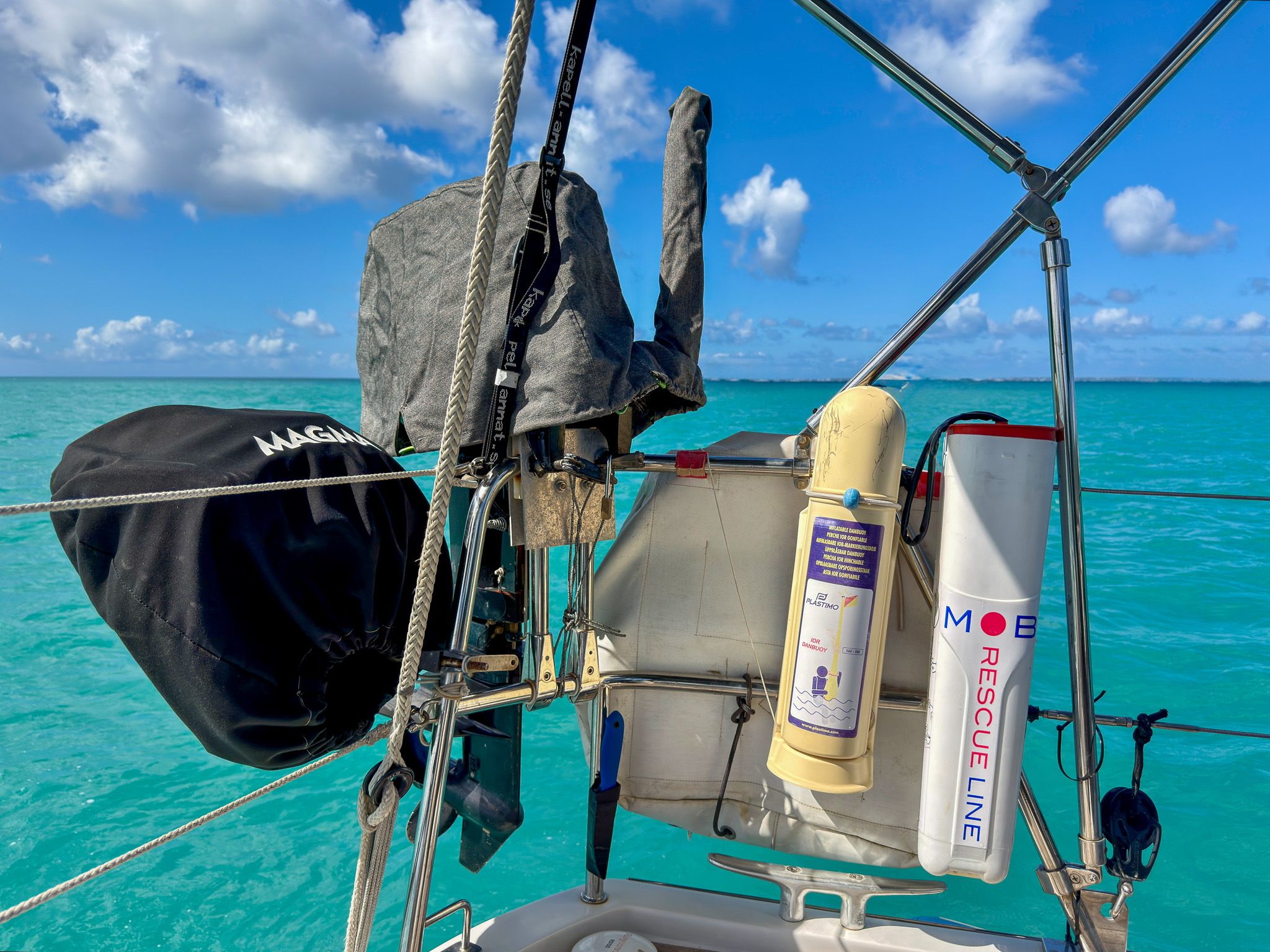

MAGMA, BBQ, pushpit mounted incl. valves for different bottles
MAECO DD8L, dehumidifier, 220V
3 x Camping gas bottles
6 x 20L jerry cans for diesel, 2 x 20L jerry cans for water
220V Water boiler, serviced with new anode, cleaned 11/2025

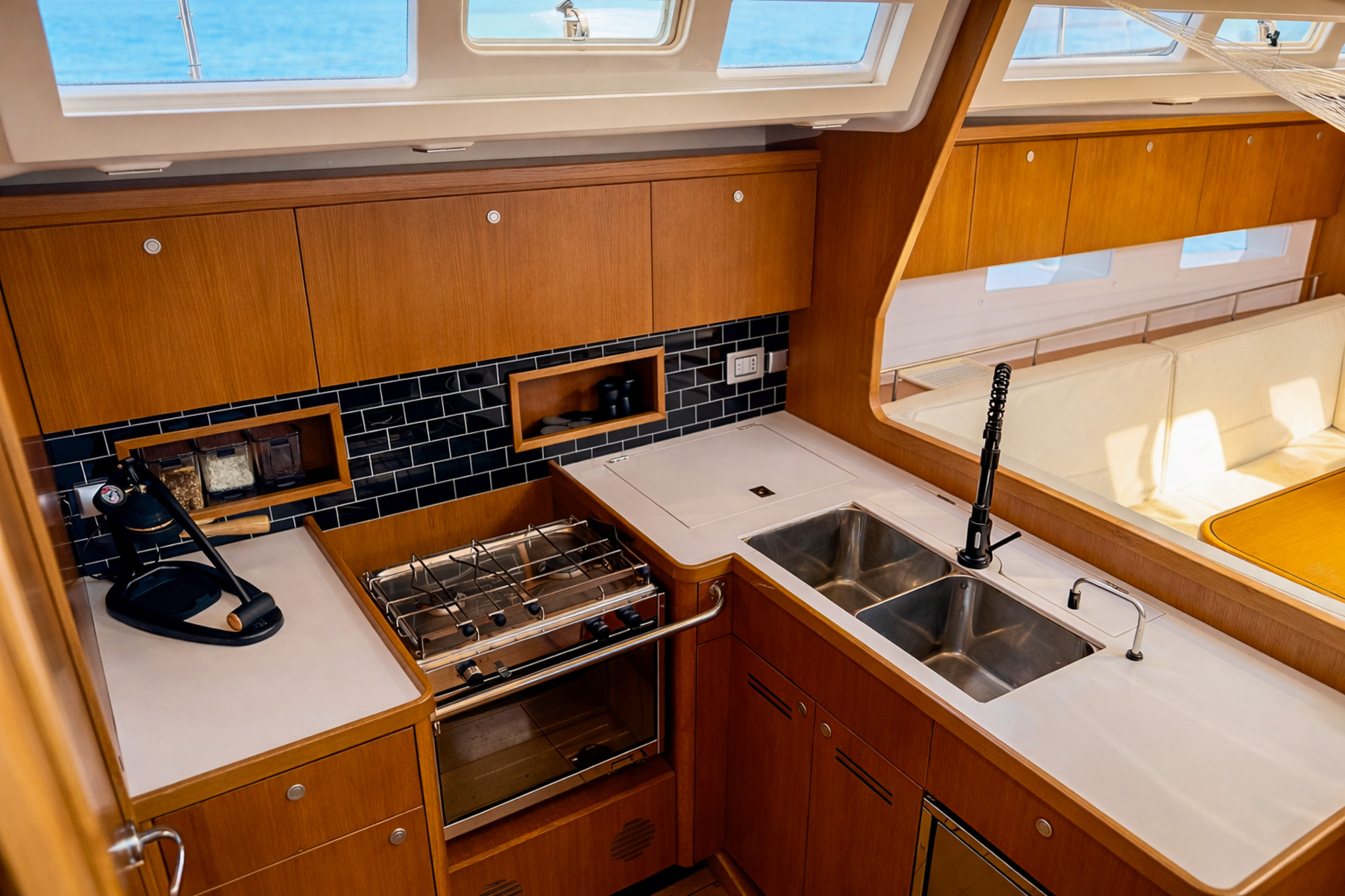

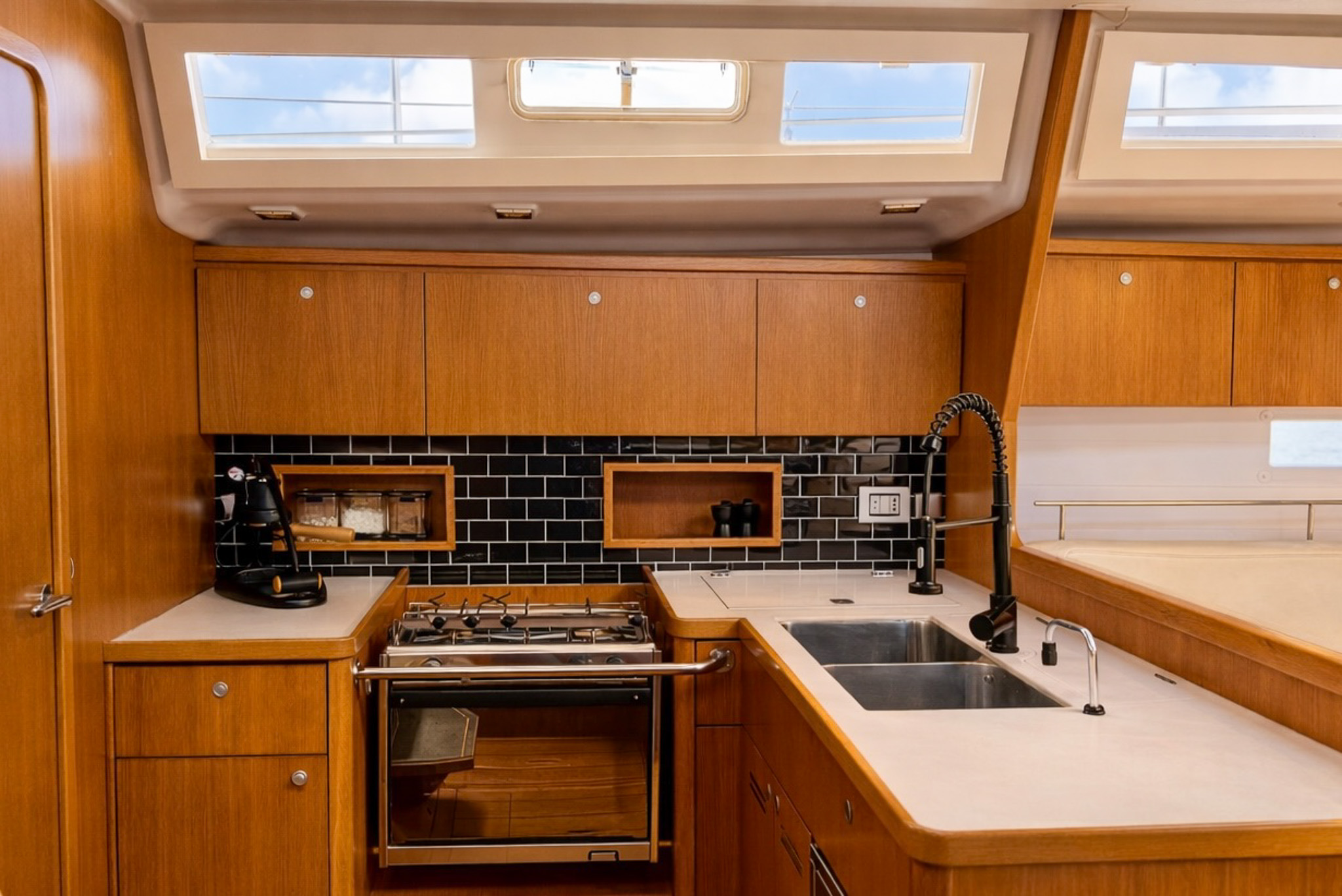

New tap in the galley 11/2025
On request: Flair 58 manual expresso machine 2023

Säkerhet
6 peoples Liferaft Eurovinil, ISO9650-1 2022, full service in 2024
1 x Fire blanket
5 x fire extinguishers 2022, full service in 2024
Kit of emergency plugs
Aqua Signal Searchlight, 55W

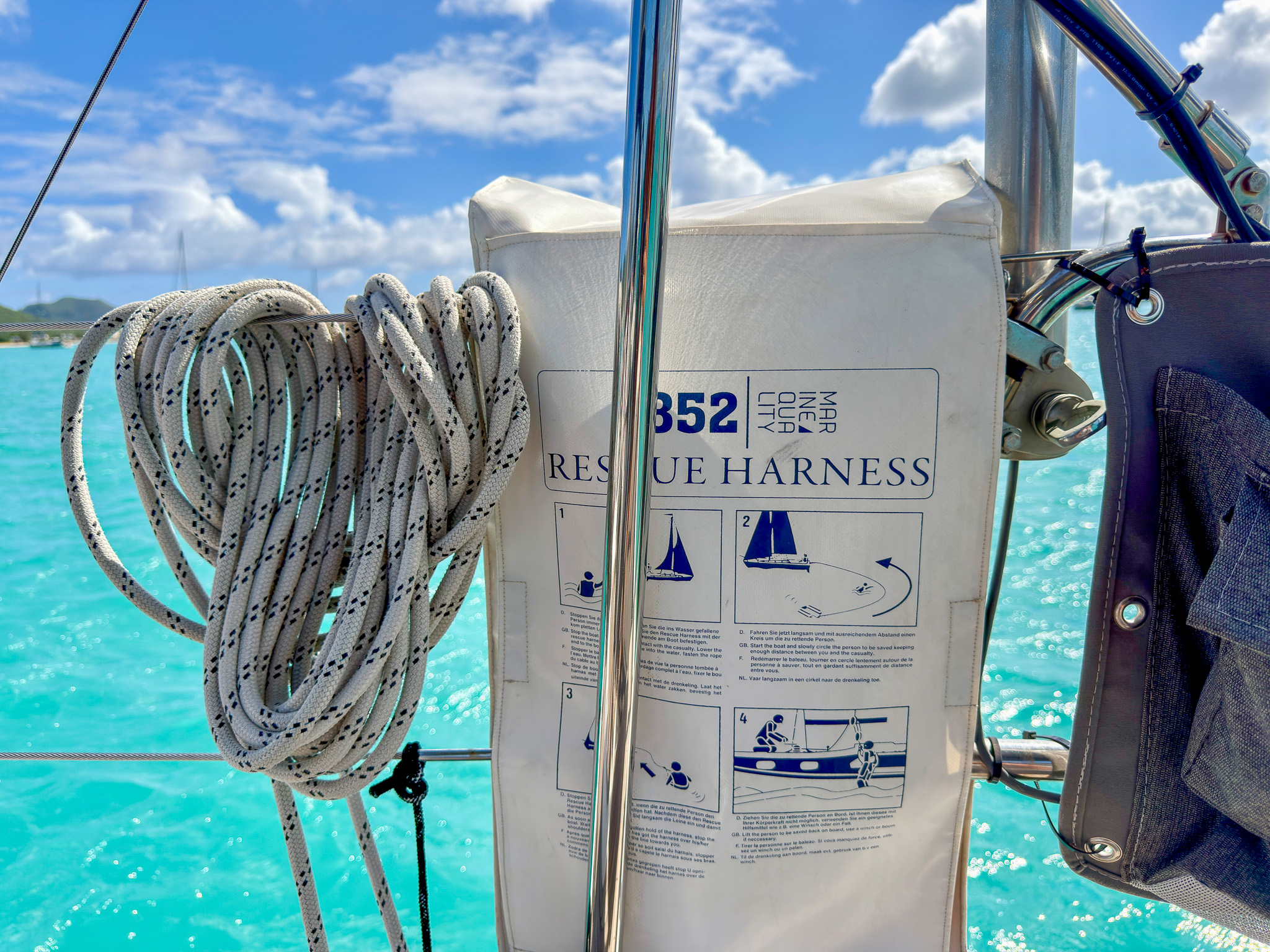

MOB Rescue Harness
Life bouy with line and lights
Dan Bouy IOR Plastimo
1 x Heaving line
Jack lines
Portable VHF emergency antenna
12v portable emergency pump + manual pump
Offshore flares kit 2025
Drogue anchor 2025
Bilge Pump Aft, new 04/2024
Main Bilge Pump, serviced and new sensor 04/2024

Övrigt
Zodiac Cadet 260 dinghy + Mercury 9,9hp + 2 x tanks
Serviced end 2025 (new spark plugs, cleaning, gear oil)
VION – Clock, Barometer and Temp/Hydrometer, bulkhead mounted 2021
3 x winch handles
3 x buckets
Numerous new spare parts for various components such as pumps, filters, impellers, alternator, etc. on request
Various equipment such as fishing and diving gear, etc. on request

Professional reinforcement
2024/2025: Structural reinforcement of the keel area and the internal frame structure carried out by a professional shipyard using a controlled vacuum lamination process. The work was executed to ensure long-term structural integrity and strength. Full documentation and invoices available.

Other factory supplied equipment except from standard
Full teak incl. deck, cockpit & coach roof covered with teak
2 x Carbon steering wheels
Mast cover in Sky

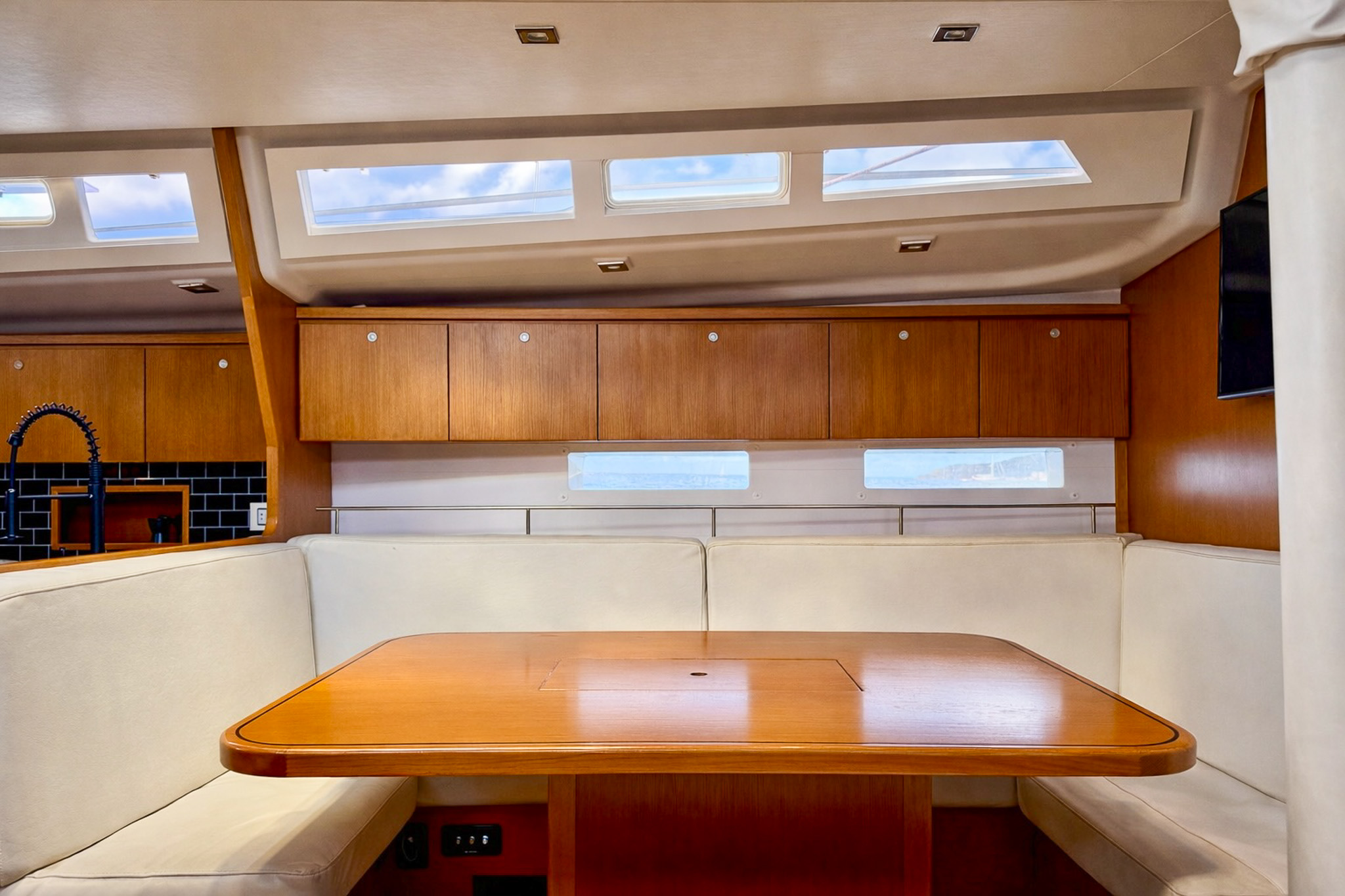

Saloon textile with leather

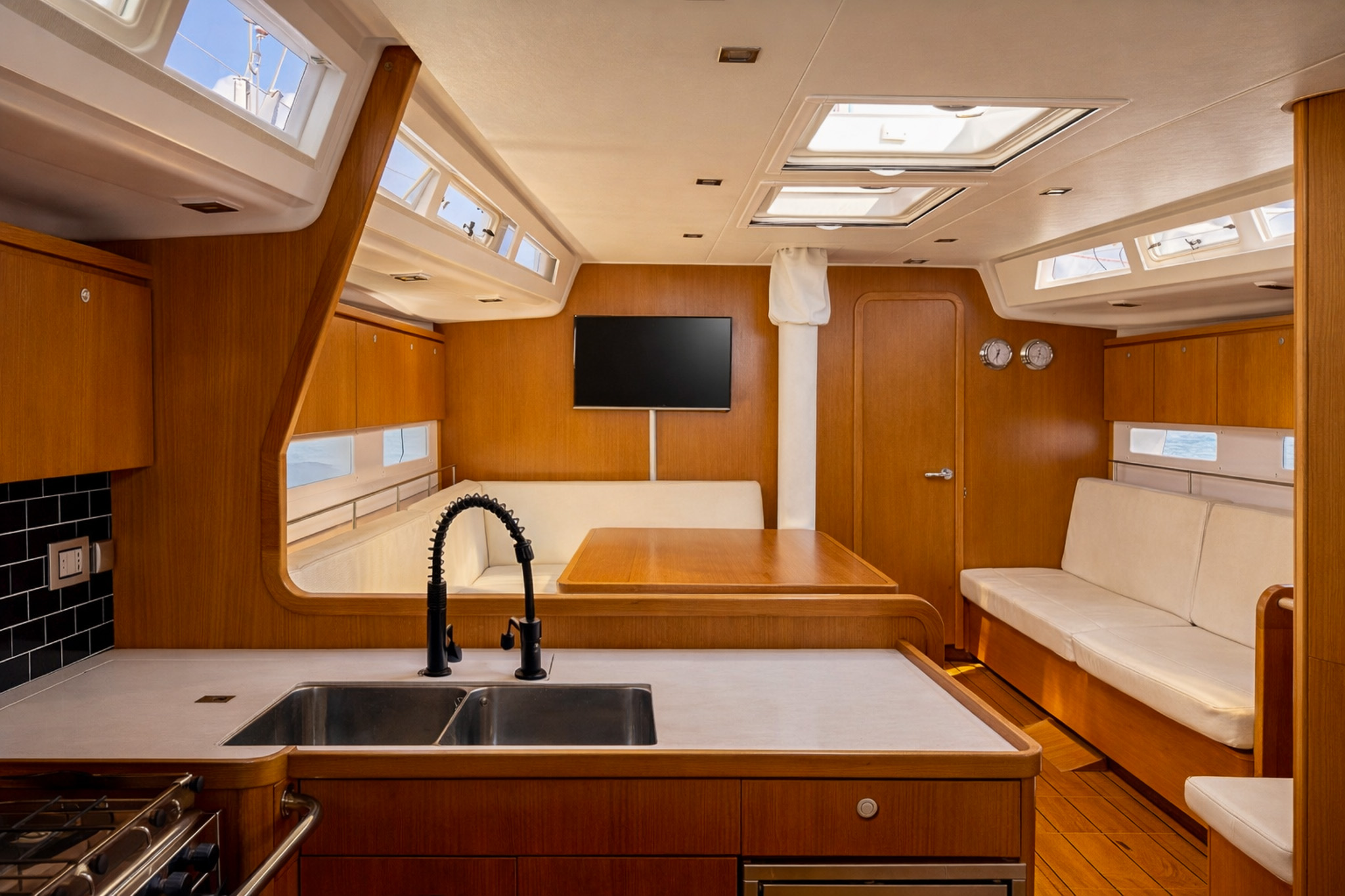

Oak wood interior with floorboards in light wood
2 x mid ships mooring cleats
Retractable cockpit table in teak

Alla uppgifter är lämnade av båtens ägare och förväntas vara korrekta men kan inte garanteras av Nordic Yachts.
